Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasAnnIntegAllToday
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasAnnIntegAllToday |
enterprises.6889.2.73.8.1.59 |
Table |
Description
The avCmMeasAnnIntegAllToday MIB group displays the measurements of all the integrated announcements for the present day.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
Not more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasAnnIntegAllToday |
SAT |
list measurements announcement integ-all yesterday-peak |
VOICE ANNOUNCEMENT MEASUREMENTS |
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasAnnIntegAllTodayTable |
.1 |
n/a |
SEQUENCE OF avCmMeasAnnIntegAllTodayEntry |
n/a |
An object containing the avCmMeasAnnIntegAllToday entries. |
avCmMeasAnnIntegAllTodayEntry |
.1.1 |
n/a |
avCmMeasAnnIntegAllTodayEntry |
n/a |
An object containing the avCmMeasAnnIntegAllToday information that the switch sent. |
avCmMeasAnnIntegAllTodayIdx |
.1.1.1 |
n/a |
SnmpAdminString (SIZE (0..17)) |
n/a |
An object that uniquely identifies each increment of data. |
avCmMeasAnnIntegAllTodayExtension |
.1.1.2 |
R |
SnmpAdminString (SIZE (0..17)) |
Extension |
An object containing the announcement extension. |

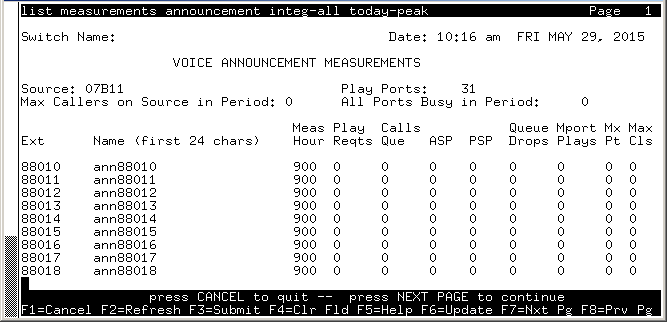

VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayRunDate |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..28)) |
Date |
An object containing the date when the command was executed. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodaySource |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..6)) |
Source |
An object containing the Source board or the media module. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayPlayPorts |
.1.1.5 |
R |
Integer32 (0..99999) |
Play Ports |
An object containing the number of play ports for the source. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayMaxCallrsPeriod |
.1.1.6 |
R |
Integer32 (0..99999) |
Max Callers on Source in Period |
An object containing the maximum callers using the source in the period. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayAllPortsBusyPeriod |
.1.1.7 |
R |
Integer32 (0..99999) |
All Ports Busy in Period |
An object containing the number of times all the ports on the source were busy during the period. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayName |
.11.8 |
R |
SnmpAdminString (SIZE (0..25)) |
Name |
An object containing the name of the announcement. The name is maximum 24 characters. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayMeasHour |
.1.1.9 |
R |
Integer32 (0..99999) |
Meas Hour |
An object containing the measurement hour. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayPlayRequests |
.1.1.10 |
R |
Integer32 (0..99999) |
Play Reqts |
An object containing the number of play requests for the announcement. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayCallsQueued |
.11.11 |
R |
Integer32 (0..99999) |
Call Que |
An object containing the number of calls for an announcement that in queue waiting for a port during the period. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayASP |
.1.1.12 |
R |
Integer32 (0..9999) |
ASP |
An object containing the average number of seconds before the announcement played during the period. Calls abandoned in the queue waiting for a port are not included. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayPSP |
.11.13 |
R |
Integer32 (0..9999) |
PSP |
An object containing the peak speed to play an announcement. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayQueueDrops |
.11.14 |
R |
Integer32 (0..99999) |
Queue Drops |
An object containing the number of calls abandoned in the queue waiting for the port during the period. Calls that callers abandoned and calls that VOA (VDN of origin Announcements) aborted are included. Calls in the queue that the agent answered are excluded from the count. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayMportPlays |
.11.15 |
R |
Integer32 (0..99999) |
Mport Plays |
An object containing the number of times the announcement is played simultaneously from multiple ports during the period. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayMxPorts |
.11.16 |
R |
Integer32 (0..99) |
Mx Pt |
An object containing the maximum number of ports used for the announcement during the period. |
VOICE ANNOUNCEMENT MEASUREMENTS |
|||||
avCmMeasAnnIntegAllTodayMaxCallers |
.11.17 |
R |
Integer32 (0..999) |
Max Cls |
An object containing the maximum number of callers simultaneously connected to a port for the announcement during the period. |
VOICE ANNOUNCEMENT MEASUREMENTS |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmMeasAnnIntegAllToday
avCmMeasAnnIntegAllTodayExtension."88010" = STRING: 88010
avCmMeasAnnIntegAllTodayExtension."88011" = STRING: 88011
:
:
avCmMeasAnnIntegAllTodayExtension."88041" = STRING: 88041
avCmMeasAnnIntegAllTodayRunDate."88010" = STRING: 10:13 am FRI MAY 29, 2015
avCmMeasAnnIntegAllTodayRunDate."88011" = STRING: 10:13 am FRI MAY 29, 2015
:
:
avCmMeasAnnIntegAllTodayRunDate."88041" = STRING: 10:13 am FRI MAY 29, 2015
avCmMeasAnnIntegAllTodaySource."88010" = STRING: 07B11
avCmMeasAnnIntegAllTodaySource."88011" = STRING: 07B11
:
:
avCmMeasAnnIntegAllTodaySource."88041" = STRING: 004V9
avCmMeasAnnIntegAllTodayPlayPorts."88010" = INTEGER: 31
avCmMeasAnnIntegAllTodayPlayPorts."88011" = INTEGER: 31
:
:
avCmMeasAnnIntegAllTodayPlayPorts."88041" = INTEGER: 63
avCmMeasAnnIntegAllTodayMaxCallrsPeriod."88010" = INTEGER: 0
avCmMeasAnnIntegAllTodayMaxCallrsPeriod."88011" = INTEGER: 0
:
:
avCmMeasAnnIntegAllTodayMaxCallrsPeriod."88041" = INTEGER: 0
avCmMeasAnnIntegAllTodayAllPortsBusyPeriod."88010" = INTEGER: 0
avCmMeasAnnIntegAllTodayAllPortsBusyPeriod."88011" = INTEGER: 0
:
:
avCmMeasAnnIntegAllTodayAllPortsBusyPeriod."88041" = INTEGER: 0
avCmMeasAnnIntegAllTodayName."88010" = STRING: ann88010
avCmMeasAnnIntegAllTodayName."88011" = STRING: ann88011
:
:
avCmMeasAnnIntegAllTodayName."88041" = STRING: ann88041
avCmMeasAnnIntegAllTodayMeasHour."88010" = INTEGER: 900
avCmMeasAnnIntegAllTodayMeasHour."88011" = INTEGER: 900
:
:
avCmMeasAnnIntegAllTodayMeasHour."88041" = INTEGER: 900
avCmMeasAnnIntegAllTodayPlayRequests."88010" = INTEGER: 0
avCmMeasAnnIntegAllTodayPlayRequests."88011" = INTEGER: 0
:
:
avCmMeasAnnIntegAllTodayPlayRequests."88041" = INTEGER: 0
avCmMeasAnnIntegAllTodayCallsQueued."88010" = INTEGER: 0
avCmMeasAnnIntegAllTodayCallsQueued."88011" = INTEGER: 0
:
:
avCmMeasAnnIntegAllTodayCallsQueued."88041" = INTEGER: 0
avCmMeasAnnIntegAllTodayASP."88010" = INTEGER: 0
avCmMeasAnnIntegAllTodayASP."88011" = INTEGER: 0
:
:
avCmMeasAnnIntegAllTodayASP."88041" = INTEGER: 0
avCmMeasAnnIntegAllTodayPSP."88010" = INTEGER: 0
avCmMeasAnnIntegAllTodayPSP."88011" = INTEGER: 0
:
:
avCmMeasAnnIntegAllTodayPSP."88041" = INTEGER: 0
avCmMeasAnnIntegAllTodayQueueDrops."88010" = INTEGER: 0
avCmMeasAnnIntegAllTodayQueueDrops."88011" = INTEGER: 0
:
:
avCmMeasAnnIntegAllTodayQueueDrops."88041" = INTEGER: 0
avCmMeasAnnIntegAllTodayMportPlays."88010" = INTEGER: 0
avCmMeasAnnIntegAllTodayMportPlays."88011" = INTEGER: 0
:
:
avCmMeasAnnIntegAllTodayMportPlays."88041" = INTEGER: 0
avCmMeasAnnIntegAllTodayMxPorts."88010" = INTEGER: 0
avCmMeasAnnIntegAllTodayMxPorts."88011" = INTEGER: 0
:
:
avCmMeasAnnIntegAllTodayMxPorts."88041" = INTEGER: 0
avCmMeasAnnIntegAllTodayMaxCallers."88010" = INTEGER: 0
avCmMeasAnnIntegAllTodayMaxCallers."88011" = INTEGER: 0
:
:
avCmMeasAnnIntegAllTodayMaxCallers."88041" = INTEGER: 0
