Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListStationRange
MIB group name |
OID |
Type |
|---|---|---|
avCmListStationRange |
enterprises.6889.2.73.8.1.8 |
Scalar/Table |
Description
The avCmListStationRange MIB group displays the output of the list station xxxx count xx command. This MIB Group should be used instead of the avCmListStation MIB Group on systems with over 100 stations.
Releases Supported
6.3.100 and later
Polling Type
Inventory and Performance/Utilization
Polling Interval
No more than once a day or when stations are added.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmListStationRange |
SAT |
list station xxxxx count x |
STATIONS |
SAT |

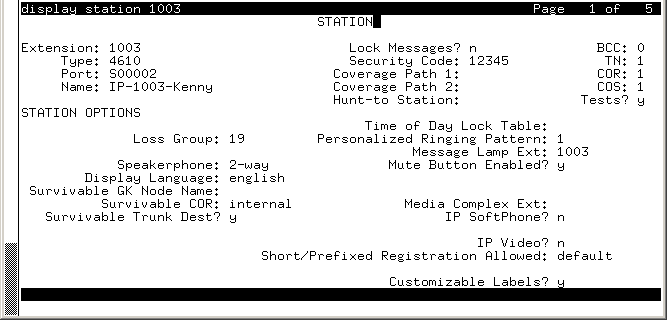

display station xxxxx |
STATION |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmListStationRangeStartExt |
.1 |
R/W |
SnmpAdminString (SIZE (0..17)) |
n/a |
An object containing the starting Extension location. (scalar) |
avCmListStationRangeCount |
.2 |
R/W |
SnmpAdminString (SIZE (1..100)) |
n/a |
An object containing the number of stations to list. (scalar) |
avCmListStationRangeTable |
.3.1 |
n/a |
SEQUENCE OF avCmListStationRangeEntry |
n/a |
A list of the avCmListStationRange entries. |
avCmListStationRangeEntry |
.3.1.1 |
n/a |
SEQUENCE OF avCmListStationRangeEntry |
n/a |
A avCmListStationRange entry containing objects of the avCmListStationRange information sent by the switch |
avCmListStationRangeIdx |
.3.1.2 |
n/a |
SnmpAdminString (SIZE (0..17)) |
n/a |
An object that uniquely identifies each Server Alarm. |
avCmListStationRangeExtension |
.3.1.3 |
R |
SnmpAdminString (SIZE (0..17)) |
Ext |
An object that contains the station extension. |
STATIONS |
|||||
avCmListStationRangeName |
.3.1.4 |
R |
SnmpAdminString (SIZE (0..8)) |
Type |
An object containing the station type. |
STATIONS |
|||||
avCmListStationRangePort |
.3.1.5 |
R |
SnmpAdminString (SIZE (0..28)) |
Name |
An object containing the name assigned to the station. |
STATIONS |
|||||
avCmListStationRangeBuilding |
.3.1.6 |
R |
SnmpAdminString (SIZE (0..8)) |
Port |
An object containing the stations port assignment. |
STATIONS |
|||||
avCmListStationRangeFloor |
.3.1.7 |
R |
SnmpAdminString (SIZE (0..11)) |
ID |
An object containing the building location of the station. |
STATIONS |
|||||
avCmListStationRangeRoom |
.3.1.8 |
R |
SnmpAdminString (SIZE (0..11)) |
ID |
An object containing the floor location of the station. |
STATIONS |
|||||
avCmListStationRangeCable |
.3.1.9 |
R |
SnmpAdminString (SIZE (0..11)) |
ID |
An object containing the cable used by the station. |
STATIONS |
|||||
avCmListStationRangeJack |
.3.1.10 |
R |
SnmpAdminString (SIZE (0..6)) |
ID |
An object containing the jack used by the station. |
STATIONS |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListStationRange
avCmListStationRangeStartExt.0 = STRING: 0
avCmListStationRangeCount.0 = INTEGER: 10
avCmListStationRangeExtension."1000" = STRING: 1000
avCmListStationRangeExtension."1001" = STRING: 1001
avCmListStationRangeExtension."1002" = STRING: 1002
avCmListStationRangeExtension."1003" = STRING: 1003
avCmListStationRangeExtension."1004" = STRING: 1004
avCmListStationRangeExtension."1005" = STRING: 1005
avCmListStationRangeExtension."1006" = STRING: 1006
avCmListStationRangeExtension."1007" = STRING: 1007
avCmListStationRangeExtension."1008" = STRING: 1008
avCmListStationRangeExtension."1009" = STRING: 1009
avCmListStationRangeType."1000" = STRING: 4620
avCmListStationRangeType."1001" = STRING: 4620
avCmListStationRangeType."1002" = STRING: 6424D+
avCmListStationRangeType."1003" = STRING: 4610
avCmListStationRangeType."1004" = STRING: 9630SIP
avCmListStationRangeType."1005" = STRING: 9620SIP
avCmListStationRangeType."1006" = STRING: 9620SIP
avCmListStationRangeType."1007" = STRING: 2500
avCmListStationRangeType."1008" = STRING: 4620
avCmListStationRangeType."1009" = STRING: 4620
avCmListStationRangeName."1000" = STRING: Ji Test
avCmListStationRangeName."1001" = STRING:
avCmListStationRangeName."1002" = STRING:
avCmListStationRangeName."1003" = STRING: IP-1003-Kenny
avCmListStationRangeName."1004" = STRING:
35
avCmListStationRangeName."1005" = STRING:
avCmListStationRangeName."1006" = STRING:
avCmListStationRangeName."1007" = STRING:
avCmListStationRangeName."1008" = STRING:
avCmListStationRangeName."1009" = STRING:
avCmListStationRangePort."1000" = STRING: S00000
avCmListStationRangePort."1001" = STRING: S00001
avCmListStationRangePort."1002" = STRING: 006V806
avCmListStationRangePort."1003" = STRING: S00002
avCmListStationRangePort."1004" = STRING: S00005
avCmListStationRangePort."1005" = STRING: S00006
avCmListStationRangePort."1006" = STRING: S00007
avCmListStationRangePort."1007" = STRING: 006V601
avCmListStationRangePort."1008" = STRING: S00008
avCmListStationRangePort."1009" = STRING: S00009
avCmListStationRangeBuilding."1000" = STRING:
avCmListStationRangeBuilding."1001" = STRING:
avCmListStationRangeBuilding."1002" = STRING:
avCmListStationRangeBuilding."1003" = STRING:
avCmListStationRangeBuilding."1004" = STRING:
avCmListStationRangeBuilding."1005" = STRING:
avCmListStationRangeBuilding."1006" = STRING:
avCmListStationRangeBuilding."1007" = STRING:
avCmListStationRangeBuilding."1008" = STRING:
avCmListStationRangeBuilding."1009" = STRING:
avCmListStationRangeFloor."1000" = STRING:
avCmListStationRangeFloor."1001" = STRING:
avCmListStationRangeFloor."1002" = STRING:
avCmListStationRangeFloor."1003" = STRING:
avCmListStationRangeFloor."1004" = STRING:
avCmListStationRangeFloor."1005" = STRING:
avCmListStationRangeFloor."1006" = STRING:
avCmListStationRangeFloor."1007" = STRING:
avCmListStationRangeFloor."1008" = STRING:
avCmListStationRangeFloor."1009" = STRING:
avCmListStationRangeRoom."1000" = STRING:
avCmListStationRangeRoom."1001" = STRING:
avCmListStationRangeRoom."1002" = STRING:
avCmListStationRangeRoom."1003" = STRING:
avCmListStationRangeRoom."1004" = STRING:
avCmListStationRangeRoom."1005" = STRING:
avCmListStationRangeRoom."1006" = STRING:
avCmListStationRangeRoom."1007" = STRING:
avCmListStationRangeRoom."1008" = STRING:
avCmListStationRangeRoom."1009" = STRING:
avCmListStationRangeCable."1000" = STRING:
avCmListStationRangeCable."1001" = STRING:
avCmListStationRangeCable."1002" = STRING:
avCmListStationRangeCable."1003" = STRING:
avCmListStationRangeCable."1004" = STRING:
avCmListStationRangeCable."1005" = STRING:
avCmListStationRangeCable."1006" = STRING:
36
avCmListStationRangeCable."1007" = STRING:
avCmListStationRangeCable."1008" = STRING:
avCmListStationRangeCable."1009" = STRING:
avCmListStationRangeJack."1000" = STRING:
avCmListStationRangeJack."1001" = STRING:
avCmListStationRangeJack."1002" = STRING:
avCmListStationRangeJack."1003" = STRING:
avCmListStationRangeJack."1004" = STRING:
avCmListStationRangeJack."1005" = STRING:
avCmListStationRangeJack."1006" = STRING:
avCmListStationRangeJack."1007" = STRING:
avCmListStationRangeJack."1008" = STRING:
avCmListStationRangeJack."1009" = STRING:
