Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasSecViolationSum Group
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasSecViolationSum Group |
enterprises.6889.2.73.8.1.44 |
Table |
Description
The avCmMeasSecViolationSum MIB group uses the list measurements security-violations summary command to retrieve security violation data.
Releases Supported
6.3.100 and later
Polling Type
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasSecViolationSum Group |
SAT |
list measurements security-violations summary |
SECURITY VIOLATIONS SUMMARY REPORT |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasSecViolationSumTable |
.1 |
n/a |
SEQUENCE OF AvCmMeasSecViolationSumEntry |
n/a |
An object that contains a list of the avCmMeasSecViolationSum entries |
AvCmMeasSecViolationSumEntry |
.1.1 |
n/a |
AvCmMeasSecViolationSumEntry |
n/a |
A avCmMeasSecViolationSum entry containing objects of the avCmMeasSecViolationSum information sent by the switch. |
avCmMeasSecViolationSumPortTypeIdx |
.1.1.1 |
n/a |
SnmpAdminString (SIZE (0..11)) |
n/a |
An object that uniquely identifies each increment of data. |
avCmMeasSecViolationSumPortType |
.1.1.2 |
R |
SnmpAdminString (SIZE (0..11)) |
Port Type |
An object containing the port type. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumRunDate |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..28)) |
Date |
An object containing the Date the command was executed. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumCountSince |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..11)) |
Counted Since |
An object containing when the counts started being kept. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumValidBC |
.1.1.5 |
R |
Integer32 (0..9999999) |
Valid Barrier Codes |
An object containing the total number of times a entered a valid barrier code. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumInvalidBC |
.1.1.6 |
R |
Integer32 (0..9999999) |
Invalid Barrier Codes |
An object containing the total number of times a user entered a invalid barrier code. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumBC |
.1.1.7 |
R |
Integer32 (0..9999999) |
Total Barrier Codes |
An object containing the total number of security violations for barrier codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumValidStnSecCode |
.1.1.8 |
R |
Integer32 (0..9999999) |
Valid Station Security Codes |
An object containing the number of calls originating from stations that generated valid station security codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumInvalidStnSecCode |
.1.1.9 |
R |
Integer32 (0..9999999) |
Invalid Station Security Codes |
An object containing the number of calls originating from stations that generated invalid station security codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumValidTrkSecCode |
.1.1.10 |
R |
Integer32 (0..9999999) |
Valid Trunk Security Codes |
An object containing the number of calls originating rom trunks that generated valid station security codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumInvalidTrkSecCode |
.1.1.11 |
R |
Integer32 (0..9999999) |
Invalid Trunk Security Codes |
An object containing the number of calls originating from trunks that generated invalid station security codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumTotValidSecCode |
.1.1.12 |
R |
Integer32 (0..9999999) |
Total Valid Security Codes |
An object containing the number of total calls that generated valid station security codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumTotInvalidSecCode |
.1.1.13 |
R |
Integer32 (0..9999999) |
Total Invalid Security Codes |
An object containing the number of total calls that generated invalid station security codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumTotSecCode |
.1.1.14 |
R |
Integer32 (0..9999999) |
Total Station Security Code Violations |
An object containing the number of total calls that generated station security violations. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumValidStnAC |
.1.1.15 |
R |
Integer32 (0..9999999) |
Valid Station Authorization Codes |
An object containing the number of calls originating from stations that generated valid authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumInvalidStnAC |
.1.1.16 |
R |
Integer32 (0..9999999) |
Invalid Station Authorization Codes |
An object containing the number of calls originating from stations that generated invalid authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumValidTrkAC |
.1.1.17 |
R |
Integer32 (0..9999999) |
Valid Trunk Authorization Codes |
An object containing the number of calls originating from trunks that generated valid authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumInvalidTrkAC |
.1.1.18 |
R |
Integer32 (0..9999999) |
Invalid Trunk Authorization Codes |
An object containing the number of calls originating from trunks that generated invalid authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumValidRemAccAC |
.1.1.19 |
R |
Integer32 (0..9999999) |
Valid Remote Access Authorization Codes |
An object containing the number of calls originating from remote access that generated valid authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumInvalidRemAccAC |
.1.1.20 |
R |
Integer32 (0..9999999) |
Invalid Remote Access Authorization Codes |
An object containing the number of calls originating from remote access that generated invalid authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumValidAtdAC |
.1.1.21 |
R |
Integer32 (0..9999999) |
Valid Attendant Authorization Codes |
An object containing the number of calls originating from attendants that generated valid authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumInvalidAtdAC |
.1.1.22 |
R |
Integer32 (0..9999999) |
Invalid Attendant Authorization Codes |
An object containing the number of calls originating from attendants that generated invalid authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumValidTotAC |
.1.1.23 |
R |
Integer32 (0..9999999) |
Total Valid Authorization Codes |
An object containing the number of calls that generated valid authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumInvalidTotAC |
.1.1.24 |
R |
Integer32 (0..9999999) |
Total Invalid Authorization Codes |
An object containing the number of calls that generated invalid authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |
|||||
avCmMeasSecViolationSumTotAC |
.1.1.25 |
R |
Integer32 (0..9999999) |
Total Authorization Code Security Violations |
An object containing the number of calls that generated security violations for authorization codes. |
SECURITY VIOLATIONS SUMMARY REPORT |

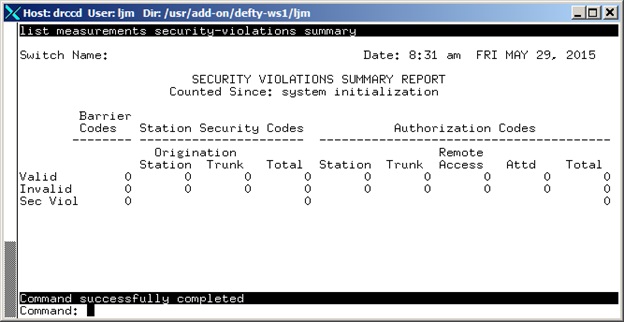

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmMeasSecViolationSum
avCmMeasSecViolationSumPortType."" = STRING:
avCmMeasSecViolationSumRunDate."" = STRING: 8:32 am FRI MAY 29, 2015
avCmMeasSecViolationSumCountSince."" = STRING: system initialization
avCmMeasSecViolationSumValidBC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidBC."" = INTEGER: 0
avCmMeasSecViolationSumBC."" = INTEGER: 0
avCmMeasSecViolationSumValidStnSecCode."" = INTEGER: 0
avCmMeasSecViolationSumInvalidStnSecCode."" = INTEGER: 0
avCmMeasSecViolationSumValidTrkSecCode."" = INTEGER: 0
avCmMeasSecViolationSumInvalidTrkSecCode."" = INTEGER: 0
avCmMeasSecViolationSumTotValidSecCode."" = INTEGER: 0
avCmMeasSecViolationSumTotInvalidSecCode."" = INTEGER: 0
avCmMeasSecViolationSumTotSecCode."" = INTEGER: 0
avCmMeasSecViolationSumValidStnAC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidStnAC."" = INTEGER: 0
avCmMeasSecViolationSumValidTrkAC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidTrkAC."" = INTEGER: 0
avCmMeasSecViolationSumValidRemAccAC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidRemAccAC."" = INTEGER: 0
avCmMeasSecViolationSumValidAtdAC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidAtdAC."" = INTEGER: 0
avCmMeasSecViolationSumValidTotAC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidTotAC."" = INTEGER: 0
avCmMeasSecViolationSumTotAC."" = INTEGER: 0
