Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasIPVoStatHrPkLos
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasIPVoStatHrPkLos |
enterprises.6889.2.73.8.1.65 |
Table |
Description
The avCmMeasIPVoStatHrPkLos MIB group displays the hourly packet loss during calls for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasIPVoStatHrPkLos |
SAT |
list measurements ip voice-stats hourly pktloss |

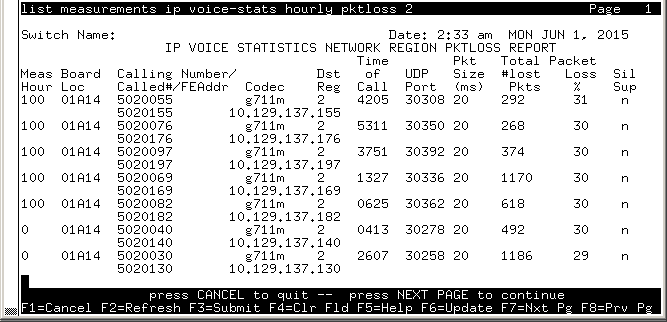

IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasIPVoStatHrPkLosTable |
.1 |
n/a |
SEQUENCE OF avCmMeasIPVoStatHrPkLosEntry |
n/a |
An object containing the avCmMeasIPVoStatHrPkLos entries. |
avCmMeasIPVoStatHrPkLosEntry |
.1.1 |
n/a |
avCmMeasIPVoStatHrPkLosEntry |
n/a |
An object containing the avCmMeasIPVoStatHrPkLos entry with the information that the switch sent. |
avCmMeasIPVoStatHrPkLosRegIdx |
.1.1.1 |
n/a |
Integer32 (0..2000) |
n/a |
An index in the network region. |
avCmMeasIPVoStatHrPkLosHourIdx |
.1.1.2 |
n/a |
Integer32 (0..2300) |
n/a |
An index that contains the measurements of the packet loss voice statistics in the 24-hour format. |
avCmMeasIPVoStatHrPkLosIdx |
.1.1.3 |
n/a |
Integer32 (0..9999) |
n/a |
A unique index for the packet loss voice statistics. |
avCmMeasIPVoStatHrPkLosRegion |
.1.1.4 |
R |
Integer32 (0..2000) |
List Command: Region |
An object containing the network region. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosMeasHour |
.1.1.5 |
R |
Integer32 (0..2300) |
Measurement Hour |
An object that containing the measurement hour. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosRunTime |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..28)) |
Date |
An object containing the date. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosBoardLoc |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..6)) |
Board Loc |
An object containing the board location. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosCallingNum |
.1.1.8 |
R |
SnmpAdminString (SIZE (0..17)) |
Calling Number |
An object containing the calling number. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosCalledNum |
.1.1.9 |
R |
SnmpAdminString (SIZE (0..17)) |
Called Number |
An object containing the called number. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosCodec |
.1.1.10 |
R |
SnmpAdminString (SIZE (0..8)) |
Codec |
An object containing the codec. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosPktSize |
.1.1.11 |
R |
Integer32 (0..999) |
Pkt Size |
An object containing the network region where the media processor is located. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosDstReg |
.1.1.12 |
R |
Integer32 (0..5) |
Dst Reg |
An object containing the timestamp when the threshold is exceeded in the call. The timestamp displays minutes and seconds in the MM-SS format. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosAvg |
.1.1.13 |
R |
Integer32 (0..6) |
RT-Delay Avg |
An object containing the UDP port assigned to the media process for the call. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosPeak |
.1.1.14 |
R |
Integer32 (0..999) |
RT-Delay Peak |
An object containing the packet size of each data stream of the call in milliseconds. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosTimeCall |
.1.1.15 |
R |
Integer32 (0..9999) |
Time of Call |
An object containing the number of total packets lost for the call. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosDataCall |
.1.1.16 |
R |
SnmpAdminString (SIZE (0..3)) |
Data Call |
An object containing the indication of data calls. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosEncrypc |
.1.1.17 |
R |
SnmpAdminString (SIZE (0..2)) |
Encryp |
An object containing the peak packet loss in the call. The packet loss rate is calculated at 10-second intervals. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
|||||
avCmMeasIPVoStatHrPkLosEC |
.1.1.18 |
R |
SnmpAdminString (SIZE (0..41)) |
FEAddr |
An object containing the far-end IP address. |
IP VOICE STATISTICS NETWORK REGION PKTLOSS REPORT |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatHrPkLos
avCmMeasIpVoStatHrPkLosRegion.1.0.6 = INTEGER: 1
avCmMeasIpVoStatHrPkLosRegion.1.0.7 = INTEGER: 1
:
:
avCmMeasIpVoStatHrPkLosRegion.2.2300.15 = INTEGER: 2
avCmMeasIpVoStatHrPkLosMeasHour.1.0.6 = INTEGER: 0
avCmMeasIpVoStatHrPkLosMeasHour.1.0.7 = INTEGER: 0
:
:
avCmMeasIpVoStatHrPkLosMeasHour.2.2300.15 = INTEGER: 2300
avCmMeasIpVoStatHrPkLosRunTime.1.0.6 = STRING: 2:30 am MON JUN 1, 2015
avCmMeasIpVoStatHrPkLosRunTime.1.0.7 = STRING: 2:30 am MON JUN 1, 2015
:
:
avCmMeasIpVoStatHrPkLosRunTime.2.2300.15 = STRING: 2:30 am MON JUN 1, 2015
avCmMeasIpVoStatHrPkLosBoardLoc.1.0.6 = STRING: 01A06
avCmMeasIpVoStatHrPkLosBoardLoc.1.0.7 = STRING: 01A06
:
:
avCmMeasIpVoStatHrPkLosBoardLoc.2.2300.15 = STRING: 01A14
avCmMeasIpVoStatHrPkLosCallingNum.1.0.6 = STRING: 5020084
avCmMeasIpVoStatHrPkLosCallingNum.1.0.7 = STRING: 5020001
:
:
avCmMeasIpVoStatHrPkLosCallingNum.2.2300.15 = STRING: 5020003
avCmMeasIpVoStatHrPkLosCalledNum.1.0.6 = STRING: 5020184
avCmMeasIpVoStatHrPkLosCalledNum.1.0.7 = STRING: 5020101
:
:
avCmMeasIpVoStatHrPkLosCalledNum.2.2300.15 = STRING: 5020103
avCmMeasIpVoStatHrPkLosCodec.1.0.6 = STRING: g711m
avCmMeasIpVoStatHrPkLosCodec.1.0.7 = STRING: g711m
:
:
avCmMeasIpVoStatHrPkLosCodec.2.2300.15 = STRING: g711m
avCmMeasIpVoStatHrPkLosDstReg.1.0.6 = INTEGER: 3
avCmMeasIpVoStatHrPkLosDstReg.1.0.7 = INTEGER: 3
:
:
avCmMeasIpVoStatHrPkLosDstReg.2.2300.15 = INTEGER: 2
avCmMeasIpVoStatHrPkLosTimeCall.1.0.6 = STRING: 2633
avCmMeasIpVoStatHrPkLosTimeCall.1.0.7 = STRING: 4215
:
:
avCmMeasIpVoStatHrPkLosTimeCall.2.2300.15 = STRING: 0101
avCmMeasIpVoStatHrPkLosUDPPort.1.0.6 = STRING: 30166
avCmMeasIpVoStatHrPkLosUDPPort.1.0.7 = STRING: 30000
:
:
avCmMeasIpVoStatHrPkLosUDPPort.2.2300.15 = STRING: 30204
avCmMeasIpVoStatHrPkLosPktSize.1.0.6 = INTEGER: 20
avCmMeasIpVoStatHrPkLosPktSize.1.0.7 = INTEGER: 20
:
:
avCmMeasIpVoStatHrPkLosPktSize.2.2300.15 = INTEGER: 20
avCmMeasIpVoStatHrPkLosTotnumLosPkts.1.0.6 = INTEGER: 379
avCmMeasIpVoStatHrPkLosTotnumLosPkts.1.0.7 = INTEGER: 1258
:
:
avCmMeasIpVoStatHrPkLosTotnumLosPkts.2.2300.15 = INTEGER: 388
avCmMeasIpVoStatHrPkLosPktLossPerc.1.0.6 = STRING: 30
avCmMeasIpVoStatHrPkLosPktLossPerc.1.0.7 = STRING: 29
:
:
avCmMeasIpVoStatHrPkLosPktLossPerc.2.2300.15 = STRING: 29
avCmMeasIpVoStatHrPkLosSilSup.1.0.6 = STRING: n
avCmMeasIpVoStatHrPkLosSilSup.1.0.7 = STRING: n
:
:
avCmMeasIpVoStatHrPkLosSilSup.2.2300.15 = STRING: n
avCmMeasIpVoStatHrPkLosFEAddr.1.0.6 = STRING: 10.129.137.84
avCmMeasIpVoStatHrPkLosFEAddr.1.0.7 = STRING: 10.129.137.1
:
:
avCmMeasIpVoStatHrPkLosFEAddr.2.2300.15 = STRING: 10.129.137.103
