Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmCapacityDialPlan
MIB group name |
OID |
Type |
|---|---|---|
avCmCapacityDialPlan |
enterprises.688.,2..73..8.1.13 |
Scalar |
Description

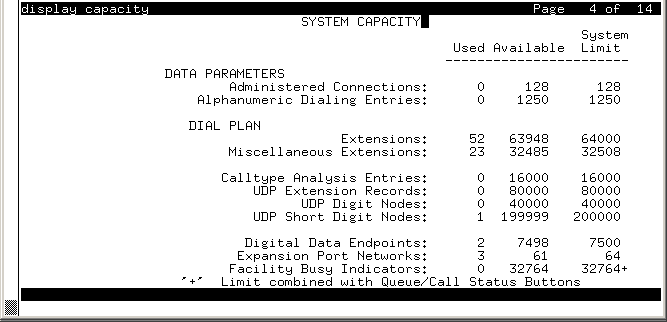

The avCmCapacityDialPlan MIB Group uses the display capacity command to retrieve the DIAL PLAN capacity information under the DIAL PLAN section of the SYSTEM CAPACITY form.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
No more than once every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmCapacityDialPlan |
SAT |
display capacity |
SYSTEM CAPACITY |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmCapacityDialPlanExtUsed |
.1 |
R |
Integer32 (0..99999) |
Extensions |
An object that contains the number of used extensions. |
SYSTEM CAPACITY |
|||||
avCmCapacityDialPlanExtAvail |
.2 |
R |
Integer32 (0..99999) |
Extensions |
An object that contains the number of available extensions. |
SYSTEM CAPACITY |
|||||
avCmCapacityDialPlanExtSysLim |
.3 |
R |
Integer32 (0..99999) |
Extensions |
An object that contains the system limit of extensions. |
SYSTEM CAPACITY |
|||||
avCmCapacityDialPlanMiscExtUsed |
.4 |
R |
Integer32 (0..99999) |
Miscellaneous Extensions |
An object that contains the number of used miscellaneous extensions. |
SYSTEM CAPACITY |
|||||
avCmCapacityDialPlanMiscExtAvail |
.5 |
R |
Integer32 (0..99999) |
Miscellaneous Extensions |
An object that contains the number of available miscellaneous extensions. |
SYSTEM CAPACITY |
|||||
avCmCapacityDialPlanMiscExtSysLim |
.6 |
R |
Integer32 (0..99999) |
Miscellaneous Extensions |
An object that contains the system limit of miscellaneous extensions. |
SYSTEM CAPACITY |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -v 2c -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmCapacityDialPlan
AVAYA-AURA-CM-MIB::avCmCapacityDialPlanExtUsed.0 = INTEGER: 52
AVAYA-AURA-CM-MIB::avCmCapacityDialPlanExtAvail.0 = INTEGER: 63948
AVAYA-AURA-CM-MIB::avCmCapacityDialPlanExtSysLim.0 = INTEGER: 64000
AVAYA-AURA-CM-MIB::avCmCapacityDialPlanMiscExtUsed.0 = INTEGER: 23
AVAYA-AURA-CM-MIB::avCmCapacityDialPlanMiscExtAvail.0 = INTEGER: 32485
AVAYA-AURA-CM-MIB::avCmCapacityDialPlanMiscExtSysLim.0 = INTEGER: 32508
