avCmListMemTrunk

Last Updated : Dec 27, 2021 |

MIB group name

OID

Type

avCmListMemTrunk

enterprises 6889.2.73.8.1.24

Scalar/Table

Description

The avCmListMemTrunk MIB Group displays the output of the list member trunk command up to the first 500 members of groups.

Releases Supported

6.3.100 and later

Polling Type

Configuration

Polling Interval

No more than once a day or when trunk members are added.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

This OID retrieves up to first 500 trunk members administered system-wide. For example, if trunk group 1 has more than 500 members, this OID never returns the list of members in trunk groups other than trunk group 1.

Similarly, if trunk group 1 has 250 members and trunk 2 has 250 members, this OID never returns the trunk group members in groups other than 1 or 2. This limitation is created because of the occupancy problems when trying to retrieve more trunk members. To get data on other trunk group members use the avCmListMemTrunkRange OID.

Associated Communication Manager Commands:

MIB group name

Bash/SAT

Associated command

Form/Report name

avCmListMemTrunk

SAT

list trunk

TRUNK GROUPS

SAT

list member trunk

TRUNK GROUP MEMBERS

Reference Document

A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

  1. No special permissions needed.

  2. No special permissions needed.

Objects

Object Name

OID

R/W

Type

Field Name

Description

Form/Report name

avCmListMemTrunkGrp

.1

n/a

Integer32 (0..2000)

n/a

An object that contains the trunk group.

avCmListMemTrunkTable

.2

n/a

SEQUENCE OF avCmListMemTrunkTable

n/a

An object that contains a list of the avCmListMemTrunk entries.

avCmListMemTrunkEntry

.3.1

n/a

avCmListMemTrunkTable

n/a

An object that contains a avCmListMemTrunk entry containing objects of the avCmListMemTrunk information sent by the switch.

avCmListMemTrunkIdx

.3.1.1

n/a

Integer32 (0..2000)

n/a

An object that contains an index into the Trunk Group.

avCmListMemTrunkMemberIdx

.3.1.2

n/a

Integer32 (0..255)

List Command: Member No.

Display Command: Member No.

An object that contains an index that contains the Member No. for the Trunk Group Port.

avCmListMemTrunkMemMember

.3.1.3

R

Integer32 (0..255)

List Command: Member No.

Display Command: Member No.

An object that contains an index that contains the Member No. for the Trunk Group Port.

TRUNK GROUP MEMBERS

avCmListMemTrunkPort

.3.1.4

R

SnmpAdminString (SIZE (0..10))

Miscellaneous Extensions

An object that contains the trunk member port.

TRUNK GROUP MEMBERS

avCmListMemTrunkName

.3.1.5

R

SnmpAdminString (SIZE (0..11))

Name

An object containing the name assigned to the member.

TRUNK GROUP MEMBERS

avCmListMemTrunkType

.3.1.6

R

SnmpAdminString (SIZE (0..8))

Type

An object containing the trunk group member type.

TRUNK GROUP MEMBERS

avCmListMemTrunkSigGrp

.3.1.7

R

Integer32 (0..999)

Signaling Group

An object containing the signaling group of the SIP trunk group.

TRUNK GROUP MEMBERS

Sample output of forms

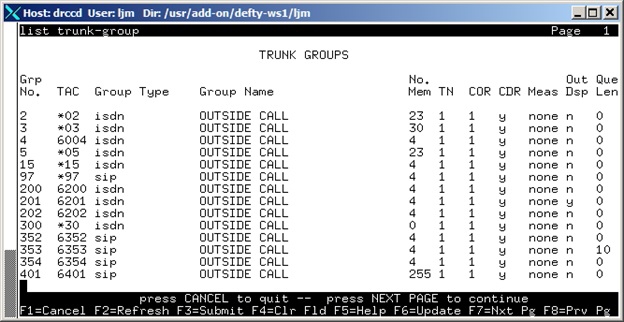

avCmListMemTrunk - Trunk Groups

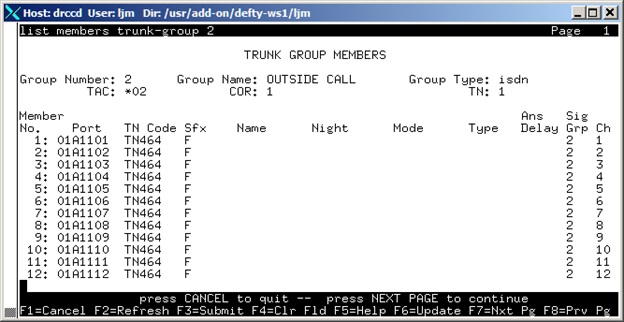

avCmListMemTrunk - Trunk Group Members

Sample Output of SNMP Walk command:

init@kenny1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt  avCmListMemTrunk
avCmListMemTrunkMemMember.2.1 = INTEGER: 1
avCmListMemTrunkMemMember.2.2 = INTEGER: 2
 :
 :
avCmListMemTrunkMemMember.604.2 = INTEGER: 2
avCmListMemTrunkPort.2.1 = STRING: 01A1101
avCmListMemTrunkPort.2.2 = STRING: 01A1102
 :
 :
vCmListMemTrunkPort.604.2 = STRING: 02A0502
avCmListMemTrunkName.2.1 = STRING:
avCmListMemTrunkName.2.2 = STRING:
 :
 :
avCmListMemTrunkName.604.2 = STRING:
avCmListMemTrunkType.2.1 = STRING:
avCmListMemTrunkType.2.2 = STRING:
 :
 :
avCmListMemTrunkType.604.2 = STRING:
avCmListMemTrunkSigGrp.2.1 = INTEGER: 2
avCmListMemTrunkSigGrp.2.2 = INTEGER: 2
 :
 :
avCmListMemTrunkSigGrp.604.2 = INTEGER: 604
Related information
AVAYA-AURA-CM-MIB
