Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasIpVoStatHrJitter
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasIpVoStatHrJitter |
enterprises.6889.2.73.8.1.66 |
Table |
Description
The avCmMeasIpVoStatHrJitter MIB group displays the hourly packet loss during calls for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasIpVStatHrJitter |
SAT |
list measurements ip voice-stats hourly jitter |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasIpVoStatHrJitterTable |
.1 |
n/a |
SEQUENCE OF avCmMeasIpVoStatHrJitterEntry |
n/a |
An object containing the avCmMeasIpVoStatHrJitter entries. |
avCmMeasIpVoStatHrJitterEntry |
.1.1 |
n/a |
avCmMeasIpVoStatHrJitterEntry |
n/a |
An object containing the avCmMeasIpVoStatHrJitter entry with the information that the switch sent. |
avCmMeasIpVoStatHrJitterRegIdx |
.1.1.1 |
n/a |
Integer32 (0..2000) |
n/a |
An index in the network region. |
avCmMeasIpVoStatHrJitterHourIdx |
.1.1.2 |
n/a |
Integer32 (0..2300) |
n/a |
An index that contains the measurements of the packet loss voice statistics in the 24-hour format. |
avCmMeasIpVoStatHrJitterIdx |
.1.1.3 |
n/a |
Integer32 (0..9999) |
n/a |
A unique index for the packet loss voice statistics. |
avCmMeasIpVoStatHrJitterRegion |
.1.1.4 |
R |
Integer32 (0..2000) |
List Command: Region |
An object containing the network region. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterMeasHour |
.1.1.5 |
R |
Integer32 (0..2300) |
Measurement Hour |
An object that containing the measurement hour. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterRunTime |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..28)) |
Date |
An object containing the date. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterBoardLoc |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..6)) |
Board Loc |
An object containing the board location. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterCallingNum |
.1.1.8 |
R |
SnmpAdminString (SIZE (0..17)) |
Calling Number |
An object containing the calling number. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterCalledNum |
.1.1.9 |
R |
SnmpAdminString (SIZE (0..17)) |
Called Number |
An object containing the called number. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterCodec |
.1.1.10 |
R |
SnmpAdminString (SIZE (0..8)) |
Codec |
An object containing the codec. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterPktSize |
.1.1.11 |
R |
Integer32 (0..999) |
Pkt Size |
An object containing the packet size. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterTimeCall |
.1.1.12 |
R |
SnmpAdminString (SIZE (0..5)) |
Time of Call |
An object containing the time of the call. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterBufSize |
.1.1.13 |
R |
SnmpAdminString (SIZE (0..4)) |
Jitter-Buffer Size |
An object containing the size of the jitter buffer. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterBufOrn |
.1.1.14 |
R |
SnmpAdminString (SIZE (0..4)) |
Jitter Buffer Orn |
An object containing the Orn of the jitter buffer. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterBufUrn |
.1.1.15 |
R |
SnmpAdminString (SIZE (0..4)) |
Jitter Buffer Urn |
An object containing the Urn of the jitter buffer. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterAvgJitter |
.1.1.16 |
R |
SnmpAdminString (SIZE (0..5)) |
Jitter Avg |
An object containing the average jitter. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterPeakJitter |
.1.1.17 |
R |
SnmpAdminString (SIZE (0..5)) |
Jitter Peak |
An object containing the peak jitter. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |
|||||
avCmMeasIpVoStatHrJitterFarIpAddr |
.1.1.18 |
R |
SnmpAdminString (SIZE (0..41)) |
Farend IP-Addr |
An object containing the far-end IP address. |
IP VOICE STATISTICS NETWORK REGION JITTER REPORT |

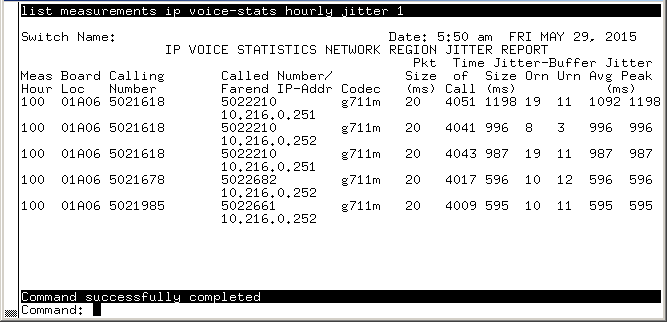

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatHrJitter
avCmMeasIpVoStatHrJitterRegion.1.100.1 = INTEGER: 1
avCmMeasIpVoStatHrJitterRegion.1.100.2 = INTEGER: 1
:
:
avCmMeasIpVoStatHrJitterRegion.3.2100.2 = INTEGER: 3
avCmMeasIpVoStatHrJitterMeasHour.1.100.1 = INTEGER: 100
avCmMeasIpVoStatHrJitterMeasHour.1.100.2 = INTEGER: 100
:
:
avCmMeasIpVoStatHrJitterMeasHour.3.2100.2 = INTEGER: 2100
avCmMeasIpVoStatHrJitterRunTime.1.100.1 = STRING: 5:51 am FRI MAY 29, 2015
avCmMeasIpVoStatHrJitterRunTime.1.100.2 = STRING: 5:51 am FRI MAY 29, 2015
:
:
avCmMeasIpVoStatHrJitterRunTime.3.2100.2 = STRING: 5:51 am FRI MAY 29, 2015
avCmMeasIpVoStatHrJitterBoardLoc.1.100.1 = STRING: 01A06
avCmMeasIpVoStatHrJitterBoardLoc.1.100.2 = STRING: 01A06
:
:
avCmMeasIpVoStatHrJitterBoardLoc.3.2100.2 = STRING: 01A03
avCmMeasIpVoStatHrJitterCallingNum.1.100.1 = STRING: 5021618
avCmMeasIpVoStatHrJitterCallingNum.1.100.2 = STRING: 5021618
:
:
avCmMeasIpVoStatHrJitterCallingNum.3.2100.2 = STRING: 5021045
avCmMeasIpVoStatHrJitterCalledNum.1.100.1 = STRING: 5022210
326
avCmMeasIpVoStatHrJitterCalledNum.1.100.2 = STRING: 5022210
:
:
avCmMeasIpVoStatHrJitterCalledNum.3.2100.2 = STRING: 5022720
avCmMeasIpVoStatHrJitterCodec.1.100.1 = STRING: g711m
avCmMeasIpVoStatHrJitterCodec.1.100.2 = STRING: g711m
:
:
avCmMeasIpVoStatHrJitterCodec.3.2100.2 = STRING: g711m
avCmMeasIpVoStatHrJitterPktSize.1.100.1 = INTEGER: 20
avCmMeasIpVoStatHrJitterPktSize.1.100.2 = INTEGER: 20
:
:
avCmMeasIpVoStatHrJitterPktSize.3.2100.2 = INTEGER: 20
avCmMeasIpVoStatHrJitterTimeCall.1.100.1 = STRING: 4051
avCmMeasIpVoStatHrJitterTimeCall.1.100.2 = STRING: 4041
:
:
avCmMeasIpVoStatHrJitterTimeCall.3.2100.2 = STRING: 4223
avCmMeasIpVoStatHrJitterBufSize.1.100.1 = STRING: 119
avCmMeasIpVoStatHrJitterBufSize.1.100.2 = STRING: 996
:
:
avCmMeasIpVoStatHrJitterBufSize.3.2100.2 = STRING: 242
avCmMeasIpVoStatHrJitterBufOrn.1.100.1 = STRING: 19
avCmMeasIpVoStatHrJitterBufOrn.1.100.2 = STRING: 8
:
:
avCmMeasIpVoStatHrJitterBufOrn.3.2100.2 = STRING: 0
avCmMeasIpVoStatHrJitterBufUrn.1.100.1 = STRING: 11
avCmMeasIpVoStatHrJitterBufUrn.1.100.2 = STRING: 3
:
:
avCmMeasIpVoStatHrJitterBufUrn.3.2100.2 = STRING: 8
avCmMeasIpVoStatHrJitterAvgJitter.1.100.1 = STRING: 1092
avCmMeasIpVoStatHrJitterAvgJitter.1.100.2 = STRING: 996
:
:
avCmMeasIpVoStatHrJitterAvgJitter.3.2100.2 = STRING: 208
avCmMeasIpVoStatHrJitterPeakJitter.1.100.1 = STRING: 1198
avCmMeasIpVoStatHrJitterPeakJitter.1.100.2 = STRING: 996
:
:
avCmMeasIpVoStatHrJitterPeakJitter.3.2100.2 = STRING: 242
avCmMeasIpVoStatHrJitterFarIpAddr.1.100.1 = STRING: 10.216.0.251
avCmMeasIpVoStatHrJitterFarIpAddr.1.100.2 = STRING: 10.216.0.252
:
:
avCmMeasIpVoStatHrJitterFarIpAddr.3.2100.2 = STRING: 10.216.0.252
vit@server1>
