Partial Switchover

Last Updated : Mar 24, 2023 |

A Partial Switchover is a scenario where the Avaya Oceana® components, such as Avaya Breeze® nodes and hosted services, are failed over to the DC2. In this scenario, the DC1 Avaya Aura® components remain active, so the Enterprise Survivable Server (ESS) does not become active.

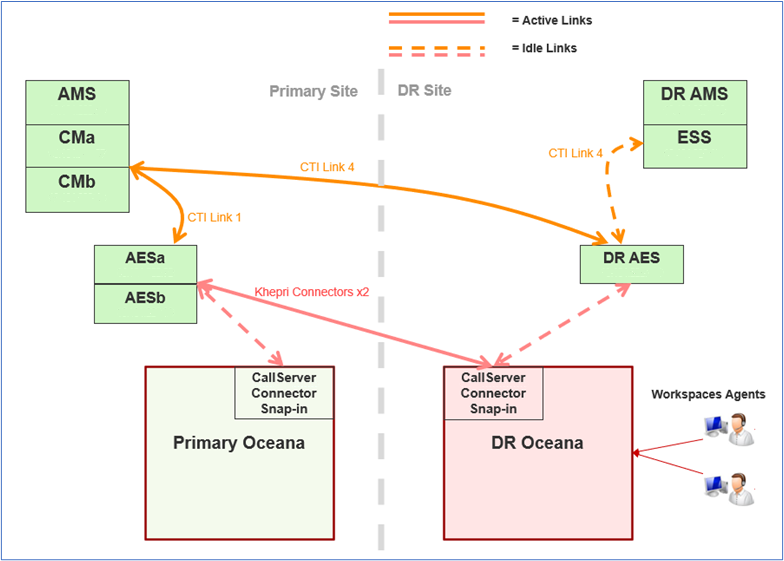

Figure : 1. Avaya Oceana® DR Voice - DR Active state (Partial Switchover)

  • DC2 Avaya Oceana® is active.

  • The DC2 CallServerConnector snap-in connects to the DC1 Application Enablement Services through Khepri connectors (x2).

  • The DC1 Application Enablement Services connects to the Communication Manager through Computer Telephony Integration (CTI) Link 1.

  • The Communication Manager has an active CTI Link (4) to the DC2 Application Enablement Services because both components are functional, but this link is not used in this scenario.
