Primary Active

Last Updated : Dec 02, 2022 |

The Primary Active state describes the solution in regular operation. The DC2 is prepared for a failover, but all the components are active in the DC1.

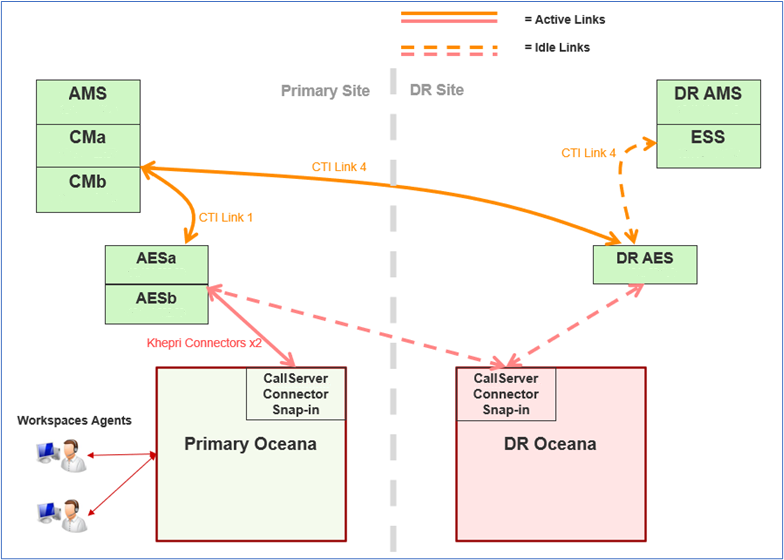

Figure : 1. Avaya Oceana® DR Voice - Primary Active state

  • DC1 Avaya Oceana® is active.

  • The CallServerConnector snap-in connects to the DC1 Application Enablement Services through Khepri connectors (x2).

  • The DC1 Application Enablement Services connects to the Communication Manager through Computer Telephony Integration (CTI) Link 1.

  • The Communication Manager has an active CTI Link (4) to the DC2 Application Enablement Services because both components are functional, but this link is not used in this scenario.
