Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmAlarms
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmAlarms
|
enterprises.6889.2.73.8.1.5
|
Table
|
Description
The avCmAlarms MIB group displays the output of CMs Active Alarm Report.
Releases Supported
6.3.100 and later
Polling Type
Fault
Polling Interval
No more than every 1 hour.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmAlarms
|
SAT
|
display alarms
|

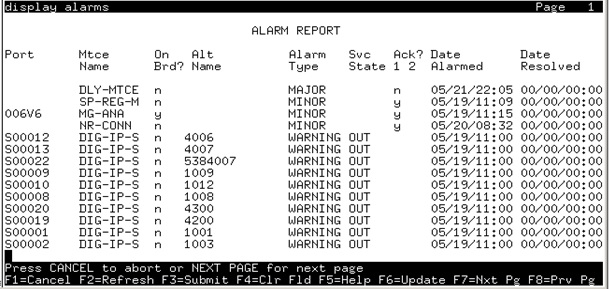

ALARM REPORT
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmAlarmsTable
|
.1
|
n/a
|
n/a
|
n/a
|
A list of the avCmAlarms entries.
|
|
avCmAlarmsEntry
|
.1.1
|
n/a
|
n/a
|
n/a
|
An avCmAlarms entry containing objects of the avCmAlarms information sent by the switch.
|
|
avCmAlarmsPortIdx
|
.1.1.1
|
n/a
|
SnmpAdminString (SIZE (0..10))
|
n/a
|
An object containing an index that uniquely identifies a port based on its location in the system. The syntax for the Port Number is as follows: cabinet (01-64): carrier (A-E): slot (01-20): port (01-64).
|
|
avCmAlarmsMtceNameIdx
|
.1.1.2
|
n/a
|
SnmpAdminString (SIZE (0..9))
|
n/a
|
An object containing an index that uniquely identifies a Maintenance Object Name.
|
|
avCmAlarmsIndex
|
.1.1.3
|
n/a
|
Integer32 (0..6500)
|
n/a
|
An Integer32 object containing an index that numbers the alarm entry for the avCmAlarmsPortIdx. This object along with avCmAlarmsPortIdx serves as the instance identifier for avCmAlarmsEntry.
|
|
avCmAlarmsPort
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..10))
|
Port
|
An object that uniquely identifies a port based on its location in the system. The syntax for the Port Number is as follows: cabinet (01-64): carrier (A-E): slot (01-20): port (01-64).
|
|
ALARM REPORT
|
|||||
|
avCmAlarmsMtceName
|
.1.1.5
|
R
|
SnmpAdminString (SIZE (0..9))
|
Mtce Name
|
An object that contains the Maintenance Object Name.
|
|
ALARM REPORT
|
|||||
|
avCmAlarmsOnBrd
|
.1.1.6
|
R
|
SnmpAdminString (SIZE (0..2))
|
On Brd
|
An object that contains the whether or not the alarm is on or off board.
|
|
ALARM REPORT
|
|||||
|
avCmAlarmsAltName
|
.1.1.7
|
R
|
SnmpAdminString (SIZE (0..14))
|
Alt Name
|
An object that contains the alternate name of the alarmed object. Alternate names can consist of extension numbers, trunk group numbers or other identifying data.
|
|
ALARM REPORT
|
|||||
|
avCmAlarmsAlarmType
|
.1.1.8
|
R
|
SnmpAdminString (SIZE (0..8))
|
Alarm Type
|
An object that contains the alarm severity.
|
|
ALARM REPORT
|
|||||
|
avCmAlarmsSvcState
|
.1.1.9
|
R
|
SnmpAdminString (SIZE (0..4))
|
Svc State
|
An object that contains the service state of the alarmed object.
|
|
ALARM REPORT
|
|||||
|
avCmAlarmsAck
|
.1.1.10
|
R
|
SnmpAdminString (SIZE (0..18))
|
Ack 1 2
|
An object that contains whether or not the alarm has been acknowledged by the alarm receiver.
|
|
ALARM REPORT
|
|||||
|
avCmAlarmsDateAlarmed
|
.1.1.11
|
R
|
SnmpAdminString (SIZE (0..12))
|
Date Alarmed
|
An object that contains the month/day/hour: minute the alarm was generated.
|
|
ALARM REPORT
|
|||||
|
avCmAlarmsDateResolved
|
.1.1.12
|
R
|
SnmpAdminString (SIZE (0..12))
|
Date Resolved
|
An object that contains the month/day/hour: minute the alarm was Resolved.
|
|
ALARM REPORT
|
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmAlarms
avCmAlarmsPort."604"."ISDN-SGR".1 = STRING: 604
avCmAlarmsPort."604"."ISDN-SGR".2 = STRING: 604
:
:
avCmAlarmsPort."000000000"."SP-REG-M".1 = STRING: 000000000
avCmAlarmsMtceName."604"."ISDN-SGR".1 = STRING: ISDN-SGR
avCmAlarmsMtceName."604"."ISDN-SGR".2 = STRING: ISDN-SGR
:
:
avCmAlarmsMtceName."000000000"."SP-REG-M".1 = STRING: SP-REG-M
avCmAlarmsOnBrd."604"."ISDN-SGR".1 = STRING: n
avCmAlarmsOnBrd."604"."ISDN-SGR".2 = STRING: n
:
:
avCmAlarmsOnBrd."000000000"."SP-REG-M".1 = STRING: n
avCmAlarmsAltName."604"."ISDN-SGR".1 = STRING:
avCmAlarmsAltName."604"."ISDN-SGR".2 = STRING:
:
:
avCmAlarmsAltName."000000000"."SP-REG-M".1 = STRING:
avCmAlarmsAlarmType."604"."ISDN-SGR".1 = STRING: WARNING
avCmAlarmsAlarmType."604"."ISDN-SGR".2 = STRING: WARNING
:
:
avCmAlarmsAlarmType."000000000"."SP-REG-M".1 = STRING: MINOR
avCmAlarmsSvcState."604"."ISDN-SGR".1 = STRING: OUT
avCmAlarmsSvcState."604"."ISDN-SGR".2 = STRING: OUT
:
:
avCmAlarmsSvcState."000000000"."SP-REG-M".1 = STRING:
avCmAlarmsAck."604"."ISDN-SGR".1 = STRING: Ack 1: Ack 2:
avCmAlarmsAck."604"."ISDN-SGR".2 = STRING: Ack 1: Ack 2:
:
:
avCmAlarmsAck."000000000"."SP-REG-M".1 = STRING: Ack 1: y Ack 2:
avCmAlarmsDateAlarmed."604"."ISDN-SGR".1 = STRING: 05/20/08:31
avCmAlarmsDateAlarmed."604"."ISDN-SGR".2 = STRING: 05/20/08:31
:
:
avCmAlarmsDateAlarmed."000000000"."SP-REG-M".1 = STRING: 05/19/11:09
avCmAlarmsDateResolved."604"."ISDN-SGR".1 = STRING: 00/00/00:00
avCmAlarmsDateResolved."604"."ISDN-SGR".2 = STRING: 00/00/00:00
:
:
avCmAlarmsDateResolved."000000000"."SP-REG-M".1 = STRING: 00/00/00:00
