Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasOutTrkLstHr
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmMeasOutTrkLstHr
|
enterprises.6889.2.73.8.1.38
|
Table
|
Description
The avCmMeasOutTrkLstHr MIB Group uses the list measurements trunk-group outage-trunk last-hour command to retrieve trunk outage data from the last hour.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmMeasOutTrkLstHr
|
SAT
|
list measurements trunk-group outage-trunk last-hour
|

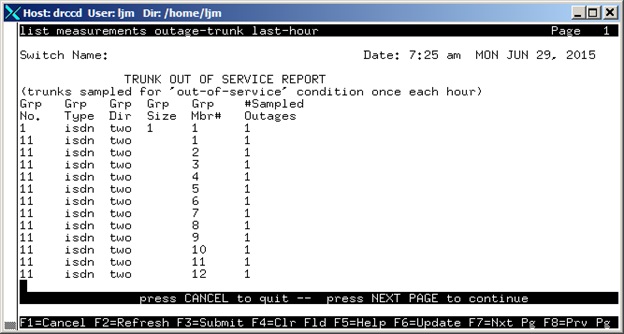

TRUNK OUT OF SERVICE REPORT
|
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmMeasOutTrkLstHrTable
|
.1
|
n/a
|
SEQUENCE OF avCmMeasOutTrkLstHrEntry
|
n/a
|
An object that contains a list of the avCmMeasOutTrkLstHr entries
|
|
avCmMeasOutTrkLstHrEntry
|
.1.1
|
n/a
|
avCmMeasOutTrkLstHrEntry
|
n/a
|
A avCmMeasOutTrkLstHr entry containing objects of the avCmMeasOutTrkLstHr information sent by the switch.
|
|
avCmMeasOutTrkLstHrTrunkGrpIdx
|
.1.1.1
|
n/a
|
Integer32 (0..2000)
|
n/a
|
An object that uniquely identifies each increment of data.
|
|
avCmMeasOutTrkLstHrGrpMbrIdx
|
.1.1.2
|
n/a
|
Integer32 (0..255)
|
n/a
|
An object that uniquely identifies each increment of data.
|
|
TRUNK OUT OF SERVICE REPORT
|
|||||
|
avCmMeasOutTrkLstHrTrunkGroup
|
.1.1.3
|
R
|
Integer32 (0..2000)
|
Trunk Group
|
An object containing the trunk group number.
|
|
TRUNK OUT OF SERVICE REPORT
|
|||||
|
avCmMeasOutTrkLstHrRunDate
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..27))
|
Date
|
An object containing the Date the command was executed.
|
|
TRUNK OUT OF SERVICE REPORT
|
|||||
|
avCmMeasOutTrkLstHrGrpSize
|
.1.1.5
|
R
|
Integer32 (0..999)
|
Grp Size
|
An object containing the number of members.
|
|
TRUNK OUT OF SERVICE REPORT
|
|||||
|
avCmMeasOutTrkLstHrGrpMbr
|
.1.1.6
|
R
|
Integer32 (0..2300)
|
Grp Mbr#
|
An object containing the member that was out of service.
|
|
TRUNK OUT OF SERVICE REPORT
|
|||||
|
avCmMeasOutTrkLstHrOutages
|
.1.1.7
|
R
|
Integer32 (0..999)
|
#Sampled Outages
|
An object containing the number of sampled outages for the trunk group member
|
|
TRUNK OUT OF SERVICE REPORT
|
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA
-CM-MIB.txt avCmMeasOutTrkLstHr
avCmMeasOutTrkLstHrTrunkGroup.1.1 = INTEGER: 1
avCmMeasOutTrkLstHrTrunkGroup.11.1 = INTEGER: 11
:
:
avCmMeasOutTrkLstHrTrunkGroup.11.255 = INTEGER: 11
avCmMeasOutTrkLstHrRunDate.1.1 = STRING: 7:22 am MON JUN 29, 2015
avCmMeasOutTrkLstHrRunDate.11.1 = STRING: 7:22 am MON JUN 29, 2015
:
:
avCmMeasOutTrkLstHrRunDate.11.255 = STRING: 7:22 am MON JUN 29, 2015
avCmMeasOutTrkLstHrGrpSize.1.1 = INTEGER: 1
avCmMeasOutTrkLstHrGrpSize.11.1 = INTEGER: 0
:
:
avCmMeasOutTrkLstHrGrpSize.11.255 = INTEGER: 0
avCmMeasOutTrkLstHrGrpMbr.1.1 = INTEGER: 1
avCmMeasOutTrkLstHrGrpMbr.11.1 = INTEGER: 1
:
:
avCmMeasOutTrkLstHrGrpMbr.11.255 = INTEGER: 255
avCmMeasOutTrkLstHrOutages.1.1 = INTEGER: 1
avCmMeasOutTrkLstHrOutages.11.1 = INTEGER: 1
:
:
avCmMeasOutTrkLstHrOutages.11.255 = INTEGER: 1
