Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasLightUseTrkLstHr
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmMeasLightUseTrkLstHr Group
|
enterprises.6889.2.73.8.1.41
|
Table
|
Description
The avCmMeasLightUseTrkLstHr MIB Group uses the list measurements lightly-used-trunk last-hour command to retrieve lightly used trunk data from the last hour.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmMeasLightUseTrkLstHr
|
SAT
|
list measurements lightly-used-trunk last-hour
|
TRUNK LIGHTLY USED REPORT
|
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmMeasLightUseTrkLstHrTable
|
.1
|
n/a
|
SEQUENCE OF avCmMeasLightUseTrkLstHrEntry
|
n/a
|
An object that contains a list of the avCmMeasLightUseTrkLstHr entries
|
|
avCmMeasLightUseTrkLstHrEntry
|
.1.1
|
n/a
|
avCmMeasLightUseTrkLstHrEntry
|
n/a
|
A avCmMeasLightUseTrkLstHr entry containing objects of the avCmMeasLightUseTrkLstHr information sent by the switch.
|
|
avCmMeasLightUseTrkLstHrTrunkGrpIdx
|
.1.1.1
|
n/a
|
Integer32 (0..2000)
|
n/a
|
An object that uniquely identifies each increment of data.
|
|
avCmMeasLightUseTrkLstHrGrpMbrIdx
|
.1.1.2
|
n/a
|
Integer32 (0..255)
|
n/a
|
An object that uniquely identifies each increment of data.
|
|
avCmMeasLightUseTrkLstHrTrunkGroup
|
.1.1.3
|
R
|
Integer32 (0..2000)
|
Trunk Group
|
An object containing the trunk group number.
|
|
TRUNK LIGHTLY USED REPORT
|
|||||
|
avCmMeasLightUseTrkLstHrRunDate
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..27))
|
Date
|
An object containing the Date the command was executed.
|
|
TRUNK LIGHTLY USED REPORT
|
|||||
|
avCmMeasLightUseTrkLstHrGrpSize
|
.1.1.5
|
R
|
Integer32 (0..999)
|
Grp Size
|
An object containing the number of members.
|
|
TRUNK LIGHTLY USED REPORT
|
|||||
|
avCmMeasLightUseTrkLstHrGrpMbr
|
.1.1.6
|
R
|
Integer32 (0..2300)
|
Grp Mbr#
|
An object containing the member that was out of service.
|
|
TRUNK LIGHTLY USED REPORT
|
|||||
|
avCmMeasLightUseTrkLstHrCallsCarried
|
.1.1.7
|
R
|
Integer32 (0..999)
|
Calls Carried
|
An object containing the number of calls carried over the trunk member.
|
|
TRUNK LIGHTLY USED REPORT
|

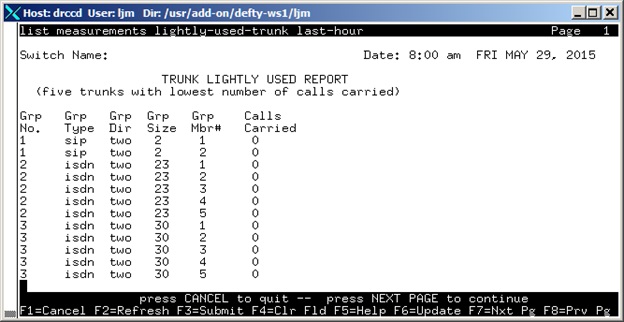

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmMeasLightUseTrkLstHr
avCmMeasLightUseTrkLstHrTrunkGroup.1.1 = INTEGER: 1
avCmMeasLightUseTrkLstHrTrunkGroup.1.2 = INTEGER: 1
:
:
avCmMeasLightUseTrkLstHrTrunkGroup.604.2 = INTEGER: 604
avCmMeasLightUseTrkLstHrRunDate.1.1 = STRING: 8:08 am FRI MAY 29, 2015
avCmMeasLightUseTrkLstHrRunDate.1.2 = STRING: 8:08 am FRI MAY 29, 2015
:
:
avCmMeasLightUseTrkLstHrRunDate.604.2 = STRING: 8:08 am FRI MAY 29, 2015
avCmMeasLightUseTrkLstHrGrpSize.1.1 = INTEGER: 2
avCmMeasLightUseTrkLstHrGrpSize.1.2 = INTEGER: 2
:
:
avCmMeasLightUseTrkLstHrGrpSize.604.2 = INTEGER: 2
avCmMeasLightUseTrkLstHrGrpMbr.1.1 = INTEGER: 1
avCmMeasLightUseTrkLstHrGrpMbr.1.2 = INTEGER: 2
:
:
avCmMeasLightUseTrkLstHrCallsCarried.604.2 = INTEGER: 0
