Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListMemTrunkRange
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmListMemTrunkRange
|
enterprises 6889.2.73.8.1.24
|
Scalar/Trunk
|
Description
The avCmListMemTrunk MIB Group displays the output of the list member trunk count xxx command.
Releases Supported
6.3.100 and later
Polling Type
Inventory and Performance/Utilization
Polling Interval
No more than once a day or when trunk members are added.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmListMemTrunkRange
|
SAT
|
list trunk
|

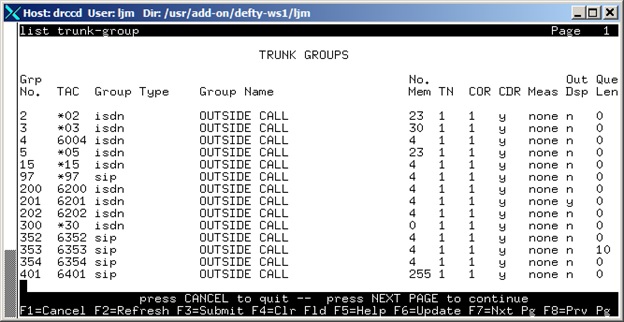

TRUNK GROUPS
|
|
SAT
|
list member trunk xxxx count xxx
|

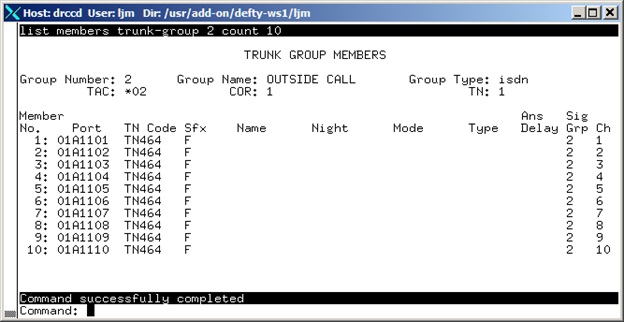

TRUNK GROUP MEMBERS
|
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
-
No special permissions needed.
-
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmListMemTrunkRangeGrp
|
.1
|
R/W
|
Integer32 (0..2000)
|
n/a
|
An object that contains the trunk group.
|
|
avCmListMemTrunkRangeStart
|
.2
|
R/W
|
Integer32 (0..255)
|
n/a
|
An object that contains the starting Member No. for the Trunk Group Port.
|
|
avCmListMemTrunkRangeCount
|
.3
|
R/W
|
Integer32 (0..255)
|
n/a
|
An object that contains the trunk member count.
|
|
avCmListMemTrunkRangeTable
|
.4
|
n/a
|
SEQUENCE OF avCmListMemTrunkRangeEntry
|
n/a
|
An object that contains a list of the avCmListMemTrunkRange entries.
|
|
avCmListMemTrunkRangeEntry
|
.4.1
|
n/a
|
avCmListMemTrunkRangeEntry
|
n/a
|
An object that contains a avCmListMemTrunkRange entry containing objects of the avCmListMemTrunkRange information sent by the switch.
|
|
avCmListMemTrunkRangeIdx
|
.4.1.1
|
n/a
|
Integer32 (0..2000)
|
n/a
|
An object that contains an index into the Trunk Group.
|
|
avCmListMemTrunkRangeMemberIdx
|
.4.1.2
|
n/a
|
Integer32 (0..255)
|
n/a
|
An object that contains an index that contains the Member No. for the Trunk Group Port.
|
|
avCmListMemTrunkRangeMemMember
|
.4.1.3
|
R
|
Integer32 (0..255)
|
List Command: Member No.
Display Command: Member No.
|
An object that contains the member number of the Trunk group port.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkRangePort
|
.4.1.4
|
R
|
SnmpAdminString (SIZE (0..12))
|
Type
|
An object containing the trunk member port.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkRangeTnCode
|
.4.1.5
|
R
|
SnmpAdminString (SIZE (0..7))
|
Type
|
An object containing the trunk member TN code.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkRangeSfx
|
.4.1.6
|
R
|
SnmpAdminString (SIZE (0..2))
|
Type
|
An object containing the trunk member TN code.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkRangeName
|
.4.1.7
|
R
|
SnmpAdminString (SIZE (0..13))
|
Name
|
An object containing the name assigned to the member.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkRangeNight
|
.4.1.8
|
R
|
SnmpAdminString (SIZE (0..14))
|
Name
|
An object containing the night service extension.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkRangeMode
|
.4.1.9
|
R
|
SnmpAdminString (SIZE (0..10))
|
Name
|
An object containing mode associated with the member.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkRangeType
|
.4.1.10
|
R
|
SnmpAdminString (SIZE (0..8))
|
Type
|
An object containing the trunk group member type.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkRangeAnsDelay
|
.4.1.11
|
R
|
Integer32 (0..5100)
|
Type
|
An object containing the trunk group Answer Delay.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkRangeSigGrp
|
.4.1.12
|
R
|
Integer32 (0..999)
|
Signaling Group
|
An object containing the signaling group of the sip trunk group.
|
|
TRUNK GROUP MEMBERS
|
|||||
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListMemTrunkRange
avCmListMemTrunkRangeGrp.0 = INTEGER: 1
avCmListMemTrunkRangeStart.0 = INTEGER: 1
avCmListMemTrunkRangeCount.0 = INTEGER: 10
avCmListMemTrunkRangeMemMember.2.1 = INTEGER: 1
avCmListMemTrunkRangeMemMember.2.2 = INTEGER: 2
avCmListMemTrunkRangeMemMember.2.3 = INTEGER: 3
avCmListMemTrunkRangeMemMember.2.4 = INTEGER: 4
avCmListMemTrunkRangeMemMember.2.5 = INTEGER: 5
avCmListMemTrunkRangeMemMember.2.6 = INTEGER: 6
avCmListMemTrunkRangeMemMember.2.7 = INTEGER: 7
avCmListMemTrunkRangeMemMember.2.8 = INTEGER: 8
avCmListMemTrunkRangeMemMember.2.9 = INTEGER: 9
avCmListMemTrunkRangeMemMember.2.10 = INTEGER: 10
avCmListMemTrunkRangePort.2.1 = STRING: 01A1101
avCmListMemTrunkRangePort.2.2 = STRING: 01A1102
avCmListMemTrunkRangePort.2.3 = STRING: 01A1103
avCmListMemTrunkRangePort.2.4 = STRING: 01A1104
avCmListMemTrunkRangePort.2.5 = STRING: 01A1105
avCmListMemTrunkRangePort.2.6 = STRING: 01A1106
avCmListMemTrunkRangePort.2.7 = STRING: 01A1107
avCmListMemTrunkRangePort.2.8 = STRING: 01A1108
avCmListMemTrunkRangePort.2.9 = STRING: 01A1109
avCmListMemTrunkRangePort.2.10 = STRING: 01A1110
avCmListMemTrunkRangeTnCode.2.1 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.2 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.3 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.4 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.5 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.6 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.7 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.8 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.9 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.10 = STRING: TN464
avCmListMemTrunkRangeSfx.2.1 = STRING: F
avCmListMemTrunkRangeSfx.2.2 = STRING: F
avCmListMemTrunkRangeSfx.2.3 = STRING: F
avCmListMemTrunkRangeSfx.2.4 = STRING: F
avCmListMemTrunkRangeSfx.2.5 = STRING: F
avCmListMemTrunkRangeSfx.2.6 = STRING: F
avCmListMemTrunkRangeSfx.2.7 = STRING: F
avCmListMemTrunkRangeSfx.2.8 = STRING: F
avCmListMemTrunkRangeSfx.2.9 = STRING: F
avCmListMemTrunkRangeSfx.2.10 = STRING: F
avCmListMemTrunkRangeName.2.1 = STRING:
avCmListMemTrunkRangeName.2.2 = STRING:
avCmListMemTrunkRangeName.2.3 = STRING:
avCmListMemTrunkRangeName.2.4 = STRING:
avCmListMemTrunkRangeName.2.5 = STRING:
avCmListMemTrunkRangeName.2.6 = STRING:
avCmListMemTrunkRangeName.2.7 = STRING:
avCmListMemTrunkRangeName.2.8 = STRING:
avCmListMemTrunkRangeName.2.9 = STRING:
avCmListMemTrunkRangeName.2.10 = STRING:
avCmListMemTrunkRangeNight.2.1 = STRING:
avCmListMemTrunkRangeNight.2.2 = STRING:
avCmListMemTrunkRangeNight.2.3 = STRING:
avCmListMemTrunkRangeNight.2.4 = STRING:
avCmListMemTrunkRangeNight.2.5 = STRING:
avCmListMemTrunkRangeNight.2.6 = STRING:
avCmListMemTrunkRangeNight.2.7 = STRING:
avCmListMemTrunkRangeNight.2.8 = STRING:
avCmListMemTrunkRangeNight.2.9 = STRING:
avCmListMemTrunkRangeNight.2.10 = STRING:
avCmListMemTrunkRangeMode.2.1 = STRING:
avCmListMemTrunkRangeMode.2.2 = STRING:
avCmListMemTrunkRangeMode.2.3 = STRING:
avCmListMemTrunkRangeMode.2.4 = STRING:
avCmListMemTrunkRangeMode.2.5 = STRING:
avCmListMemTrunkRangeMode.2.6 = STRING:
avCmListMemTrunkRangeMode.2.7 = STRING:
avCmListMemTrunkRangeMode.2.8 = STRING:
avCmListMemTrunkRangeMode.2.9 = STRING:
avCmListMemTrunkRangeMode.2.10 = STRING:
avCmListMemTrunkRangeType.2.1 = STRING:
avCmListMemTrunkRangeType.2.2 = STRING:
avCmListMemTrunkRangeType.2.3 = STRING:
avCmListMemTrunkRangeType.2.4 = STRING:
avCmListMemTrunkRangeType.2.5 = STRING:
avCmListMemTrunkRangeType.2.6 = STRING:
avCmListMemTrunkRangeType.2.7 = STRING:
avCmListMemTrunkRangeType.2.8 = STRING:
avCmListMemTrunkRangeType.2.9 = STRING:
avCmListMemTrunkRangeType.2.10 = STRING:
avCmListMemTrunkRangeAnsDelay.2.1 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.2 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.3 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.4 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.5 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.6 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.7 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.8 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.9 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.10 = INTEGER: 0
avCmListMemTrunkRangeSigGrp.2.1 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.2 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.3 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.4 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.5 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.6 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.7 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.8 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.9 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.10 = INTEGER: 2
