Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmStatusMedGateway
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmStatusMedGateway
|
enterprises.6889.2.73.8.1.47
|
Scalar
|
Description
The avCmStatusMedGateway MIB Group uses the media-gateways command to retrieve the gateway health information.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
Not more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmStatusMedGateway
|
SAT
|

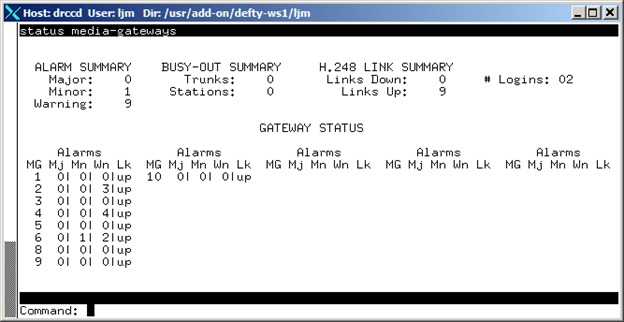

status media-gateways
|
GATEWAY STATUS
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmStatusMedGatewayAlmMajor
|
.1
|
R
|
Integer32 (0..9999)
|
Alarms Major
|
An object that contains the number of major alarms.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlmMinor
|
.2
|
R
|
Integer32 (0..9999)
|
Alarms Major
|
An object that contains the number of minor alarms.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlmWarning
|
.3
|
R
|
Integer32 (0..9999)
|
Alarms Warning
|
An object that contains the number of warning alarms.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayBusyOutTrunks
|
.4
|
R
|
Integer32 (0..9999)
|
BUSYOUT Trunks
|
An object that contains the number of Busied Out Trunks.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayBusyOutStations
|
.5
|
R
|
Integer32 (0..9999)
|
BUSYOUT Stations
|
An object that contains the number of Busied Out stations.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayH248LinksDown
|
.6
|
R
|
Integer32 (0..9999)
|
Links Down
|
An object containing the total number of media gateways administered in a system that do not have a H.248 link established to the media gateway controller.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayH248LinksUp
|
.7
|
R
|
Integer32 (0..9999)
|
Links Up
|
An object containing the total number of media gateways administered in a system that do have a H.248 link established to the media gateway controller.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayNbrLogins
|
.8
|
R
|
Integer32 (0..99)
|
# Logins
|
An object containing the total number of logins into the system.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms1
|
.9
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms2
|
.10
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms3
|
.11
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms4
|
.12
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms5
|
.13
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms6
|
.14
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms7
|
.15
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms8
|
.16
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms9
|
.17
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms10
|
.18
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms11
|
.19
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms12
|
.20
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms13
|
.21
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms14
|
.22
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms15
|
.23
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms16
|
.24
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms17
|
.25
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms18
|
.26
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms19
|
.27
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms20
|
.28
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms21
|
.29
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms22
|
.30
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms23
|
.31
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms24
|
.32
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms25
|
.33
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms26
|
.34
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms27
|
.35
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms28
|
.36
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms29
|
.37
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms30
|
.38
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms31
|
.39
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms32
|
.40
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms33
|
.41
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms34
|
.42
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms35
|
.43
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms36
|
.44
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms37
|
.45
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms38
|
.46
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms39
|
.47
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms40
|
.48
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms41
|
.49
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms42
|
.50
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms43
|
.51
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms44
|
.52
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms45
|
.53
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms46
|
.54
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms47
|
.55
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms48
|
.56
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms49
|
.57
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms50
|
.58
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms51
|
.59
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms52
|
.60
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms53
|
.61
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms54
|
.62
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms55
|
.63
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms56
|
.64
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms57
|
.65
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms58
|
.66
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms59
|
.67
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms60
|
.68
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms61
|
.69
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms62
|
.70
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms63
|
.71
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms64
|
.72
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms65
|
.73
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms66
|
.74
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms67
|
.75
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms68
|
.76
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms69
|
.77
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms70
|
.78
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms71
|
.79
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms72
|
.80
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms73
|
.81
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms74
|
.82
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms75
|
.83
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms76
|
.84
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms77
|
.85
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms78
|
.86
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms79
|
.87
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms80
|
.88
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms81
|
.89
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms82
|
.90
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms83
|
.91
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms84
|
.92
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms85
|
.93
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms86
|
.94
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms87
|
.95
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms88
|
.96
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms89
|
.97
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms90
|
.98
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms91
|
.99
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms92
|
.100
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms93
|
.101
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms94
|
.102
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms95
|
.103
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms96
|
.104
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms97
|
.105
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms98
|
.106
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms99
|
.107
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms100
|
.108
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms101
|
.109
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms102
|
.110
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms103
|
.111
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms104
|
.112
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms105
|
.113
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms106
|
.114
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms107
|
.115
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms108
|
.116
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms109
|
.117
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms110
|
.118
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms111
|
.119
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms112
|
.120
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms113
|
.121
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms114
|
.122
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms115
|
.123
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms116
|
.124
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms117
|
.125
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms118
|
.126
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms119
|
.127
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms120
|
.128
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms121
|
.129
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms122
|
.130
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms123
|
.131
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms124
|
.132
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms125
|
.133
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms126
|
.134
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms127
|
.135
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms128
|
.136
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms129
|
.137
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms130
|
.138
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms131
|
.139
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms132
|
.140
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms133
|
.141
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms134
|
.142
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms135
|
.143
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms136
|
.144
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms137
|
.145
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms138
|
.146
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms139
|
.147
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms140
|
.148
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms141
|
.149
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms142
|
.150
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms143
|
.151
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms144
|
.152
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms145
|
.153
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms146
|
.154
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms147
|
.155
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms148
|
.156
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms149
|
.157
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms150
|
.158
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms151
|
.159
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms152
|
.160
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms153
|
.161
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms154
|
.162
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms155
|
.163
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms156
|
.164
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms157
|
.165
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms158
|
.166
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms159
|
.167
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms160
|
.168
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms161
|
.169
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms162
|
.170
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms163
|
.171
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms164
|
.172
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms165
|
.173
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms166
|
.174
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms167
|
.175
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms168
|
.176
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms169
|
.177
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms170
|
.178
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms171
|
.179
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms172
|
.180
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms173
|
.181
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms174
|
.182
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms175
|
.183
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms176
|
.184
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms177
|
.185
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms178
|
.186
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms179
|
.187
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms180
|
.188
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms181
|
.189
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms182
|
.190
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms183
|
.191
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms184
|
.192
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms185
|
.193
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms186
|
.194
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms187
|
.195
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms188
|
.196
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms189
|
.197
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms190
|
.198
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms191
|
.199
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms192
|
.200
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms193
|
.201
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms194
|
.202
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms195
|
.203
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms196
|
.204
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms197
|
.205
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms198
|
.206
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms199
|
.207
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms200
|
.208
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms201
|
.209
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms202
|
.210
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms203
|
.211
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms204
|
.212
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms205
|
.213
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms206
|
.214
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms207
|
.215
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms208
|
.216
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms209
|
.217
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms210
|
.218
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms211
|
.219
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms212
|
.220
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms213
|
.221
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms214
|
.222
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms215
|
.223
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms216
|
.224
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms217
|
.225
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms218
|
.226
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms219
|
.227
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms220
|
.228
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms221
|
.229
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms222
|
.230
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms223
|
.231
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms224
|
.232
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms225
|
.233
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms226
|
.234
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms227
|
.235
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms228
|
.236
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms229
|
.237
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms230
|
.238
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms231
|
.239
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms232
|
.240
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms233
|
.241
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms234
|
.242
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms235
|
.243
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms236
|
.244
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms237
|
.245
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms238
|
.246
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms239
|
.247
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms240
|
.248
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms241
|
.249
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms242
|
.250
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms243
|
.251
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms244
|
.252
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms245
|
.253
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms246
|
.254
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms247
|
.255
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms248
|
.256
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms249
|
.257
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
|||||
|
avCmStatusMedGatewayAlarms250
|
.258
|
R
|
Integer32 (0..9999)
|
Assigned Ports
|
An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.
|
|
GATEWAY STATUS
|
Note:
The value of the Object Name increments by 1 till 999, and automatically the value of the OID also increments by 1 till 1007.
Example:
|
Object Name
|
OID
|
|---|---|
|
avCmStatusMedGatewayAlarms251
|
.259
|
|
avCmStatusMedGatewayAlarms252
|
.260
|
|
...
|
...
|
|
avCmStatusMedGatewayAlarms998
|
.1006
|
|
avCmStatusMedGatewayAlarms999
|
.1007
|
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmStatusMedGateway
avCmStatusMedGatewayAlmMajor.0 = INTEGER: 0
avCmStatusMedGatewayAlmMinor.0 = INTEGER: 1
avCmStatusMedGatewayAlmWarning.0 = INTEGER: 9
avCmStatusMedGatewayBusyOutTrunks.0 = INTEGER: 0
avCmStatusMedGatewayBusyOutStations.0 = INTEGER: 0
avCmStatusMedGatewayH248LinksDown.0 = INTEGER: 0
avCmStatusMedGatewayH248LinksUp.0 = INTEGER: 9
avCmStatusMedGatewayNbrLogins.0 = INTEGER: 2
avCmStatusMedGatewayAlarms1.0 = STRING: MG 1 Mj 0 Mn 0 Wn 0 Lk up
avCmStatusMedGatewayAlarms2.0 = STRING: MG 2 Mj 0 Mn 0 Wn 3 Lk up
avCmStatusMedGatewayAlarms3.0 = STRING: MG 3 Mj 0 Mn 0 Wn 0 Lk up
avCmStatusMedGatewayAlarms4.0 = STRING: MG 4 Mj 0 Mn 0 Wn 4 Lk up
avCmStatusMedGatewayAlarms5.0 = STRING: MG 5 Mj 0 Mn 0 Wn 0 Lk up
avCmStatusMedGatewayAlarms6.0 = STRING: MG 6 Mj 0 Mn 1 Wn 2 Lk up
avCmStatusMedGatewayAlarms7.0 = STRING: MG 8 Mj 0 Mn 0 Wn 0 Lk up
avCmStatusMedGatewayAlarms8.0 = STRING: MG 9 Mj 0 Mn 0 Wn 0 Lk up
avCmStatusMedGatewayAlarms9.0 = STRING: MG 10 Mj 0 Mn 0 Wn 0 Lk up
avCmStatusMedGatewayAlarms10.0 = STRING:
avCmStatusMedGatewayAlarms11.0 = STRING:
avCmStatusMedGatewayAlarms12.0 = STRING:
avCmStatusMedGatewayAlarms13.0 = STRING:
avCmStatusMedGatewayAlarms14.0 = STRING:
avCmStatusMedGatewayAlarms15.0 = STRING:
avCmStatusMedGatewayAlarms16.0 = STRING:
avCmStatusMedGatewayAlarms17.0 = STRING:
avCmStatusMedGatewayAlarms18.0 = STRING:
avCmStatusMedGatewayAlarms19.0 = STRING:
avCmStatusMedGatewayAlarms20.0 = STRING:
avCmStatusMedGatewayAlarms21.0 = STRING:
avCmStatusMedGatewayAlarms22.0 = STRING:
avCmStatusMedGatewayAlarms23.0 = STRING:
avCmStatusMedGatewayAlarms24.0 = STRING:
avCmStatusMedGatewayAlarms25.0 = STRING:
avCmStatusMedGatewayAlarms26.0 = STRING:
avCmStatusMedGatewayAlarms27.0 = STRING:
avCmStatusMedGatewayAlarms28.0 = STRING:
avCmStatusMedGatewayAlarms29.0 = STRING:
avCmStatusMedGatewayAlarms30.0 = STRING:
avCmStatusMedGatewayAlarms31.0 = STRING:
avCmStatusMedGatewayAlarms32.0 = STRING:
avCmStatusMedGatewayAlarms33.0 = STRING:
avCmStatusMedGatewayAlarms34.0 = STRING:
avCmStatusMedGatewayAlarms35.0 = STRING:
avCmStatusMedGatewayAlarms36.0 = STRING:
avCmStatusMedGatewayAlarms37.0 = STRING:
avCmStatusMedGatewayAlarms38.0 = STRING:
avCmStatusMedGatewayAlarms39.0 = STRING:
avCmStatusMedGatewayAlarms40.0 = STRING:
avCmStatusMedGatewayAlarms41.0 = STRING:
avCmStatusMedGatewayAlarms42.0 = STRING:
avCmStatusMedGatewayAlarms43.0 = STRING:
avCmStatusMedGatewayAlarms44.0 = STRING:
avCmStatusMedGatewayAlarms45.0 = STRING:
avCmStatusMedGatewayAlarms46.0 = STRING:
avCmStatusMedGatewayAlarms47.0 = STRING:
avCmStatusMedGatewayAlarms48.0 = STRING:
avCmStatusMedGatewayAlarms49.0 = STRING:
avCmStatusMedGatewayAlarms50.0 = STRING:
avCmStatusMedGatewayAlarms51.0 = STRING:
avCmStatusMedGatewayAlarms52.0 = STRING:
avCmStatusMedGatewayAlarms53.0 = STRING:
avCmStatusMedGatewayAlarms54.0 = STRING:
avCmStatusMedGatewayAlarms55.0 = STRING:
avCmStatusMedGatewayAlarms56.0 = STRING:
avCmStatusMedGatewayAlarms57.0 = STRING:
avCmStatusMedGatewayAlarms58.0 = STRING:
avCmStatusMedGatewayAlarms59.0 = STRING:
avCmStatusMedGatewayAlarms60.0 = STRING:
avCmStatusMedGatewayAlarms61.0 = STRING:
avCmStatusMedGatewayAlarms62.0 = STRING:
avCmStatusMedGatewayAlarms63.0 = STRING:
avCmStatusMedGatewayAlarms64.0 = STRING:
avCmStatusMedGatewayAlarms65.0 = STRING:
avCmStatusMedGatewayAlarms66.0 = STRING:
avCmStatusMedGatewayAlarms67.0 = STRING:
avCmStatusMedGatewayAlarms68.0 = STRING:
avCmStatusMedGatewayAlarms69.0 = STRING:
avCmStatusMedGatewayAlarms70.0 = STRING:
avCmStatusMedGatewayAlarms71.0 = STRING:
avCmStatusMedGatewayAlarms72.0 = STRING:
avCmStatusMedGatewayAlarms73.0 = STRING:
avCmStatusMedGatewayAlarms74.0 = STRING:
avCmStatusMedGatewayAlarms75.0 = STRING:
avCmStatusMedGatewayAlarms76.0 = STRING:
avCmStatusMedGatewayAlarms77.0 = STRING:
avCmStatusMedGatewayAlarms78.0 = STRING:
avCmStatusMedGatewayAlarms79.0 = STRING:
avCmStatusMedGatewayAlarms80.0 = STRING:
avCmStatusMedGatewayAlarms81.0 = STRING:
avCmStatusMedGatewayAlarms82.0 = STRING:
avCmStatusMedGatewayAlarms83.0 = STRING:
avCmStatusMedGatewayAlarms84.0 = STRING:
avCmStatusMedGatewayAlarms85.0 = STRING:
avCmStatusMedGatewayAlarms86.0 = STRING:
avCmStatusMedGatewayAlarms87.0 = STRING:
avCmStatusMedGatewayAlarms88.0 = STRING:
avCmStatusMedGatewayAlarms89.0 = STRING:
avCmStatusMedGatewayAlarms90.0 = STRING:
avCmStatusMedGatewayAlarms91.0 = STRING:
avCmStatusMedGatewayAlarms92.0 = STRING:
avCmStatusMedGatewayAlarms93.0 = STRING:
avCmStatusMedGatewayAlarms94.0 = STRING:
avCmStatusMedGatewayAlarms95.0 = STRING:
avCmStatusMedGatewayAlarms96.0 = STRING:
avCmStatusMedGatewayAlarms97.0 = STRING:
avCmStatusMedGatewayAlarms98.0 = STRING:
avCmStatusMedGatewayAlarms99.0 = STRING:
avCmStatusMedGatewayAlarms100.0 = STRING:
avCmStatusMedGatewayAlarms101.0 = STRING:
avCmStatusMedGatewayAlarms102.0 = STRING:
avCmStatusMedGatewayAlarms103.0 = STRING:
avCmStatusMedGatewayAlarms104.0 = STRING:
avCmStatusMedGatewayAlarms105.0 = STRING:
avCmStatusMedGatewayAlarms106.0 = STRING:
avCmStatusMedGatewayAlarms107.0 = STRING:
avCmStatusMedGatewayAlarms108.0 = STRING:
avCmStatusMedGatewayAlarms109.0 = STRING:
avCmStatusMedGatewayAlarms110.0 = STRING:
avCmStatusMedGatewayAlarms111.0 = STRING:
avCmStatusMedGatewayAlarms112.0 = STRING:
avCmStatusMedGatewayAlarms113.0 = STRING:
avCmStatusMedGatewayAlarms114.0 = STRING:
avCmStatusMedGatewayAlarms115.0 = STRING:
avCmStatusMedGatewayAlarms116.0 = STRING:
avCmStatusMedGatewayAlarms117.0 = STRING:
avCmStatusMedGatewayAlarms118.0 = STRING:
avCmStatusMedGatewayAlarms119.0 = STRING:
avCmStatusMedGatewayAlarms120.0 = STRING:
avCmStatusMedGatewayAlarms121.0 = STRING:
avCmStatusMedGatewayAlarms122.0 = STRING:
avCmStatusMedGatewayAlarms123.0 = STRING:
avCmStatusMedGatewayAlarms124.0 = STRING:
avCmStatusMedGatewayAlarms125.0 = STRING:
avCmStatusMedGatewayAlarms126.0 = STRING:
avCmStatusMedGatewayAlarms127.0 = STRING:
avCmStatusMedGatewayAlarms128.0 = STRING:
avCmStatusMedGatewayAlarms129.0 = STRING:
avCmStatusMedGatewayAlarms130.0 = STRING:
avCmStatusMedGatewayAlarms131.0 = STRING:
avCmStatusMedGatewayAlarms132.0 = STRING:
avCmStatusMedGatewayAlarms133.0 = STRING:
avCmStatusMedGatewayAlarms134.0 = STRING:
avCmStatusMedGatewayAlarms135.0 = STRING:
avCmStatusMedGatewayAlarms136.0 = STRING:
avCmStatusMedGatewayAlarms137.0 = STRING:
avCmStatusMedGatewayAlarms138.0 = STRING:
avCmStatusMedGatewayAlarms139.0 = STRING:
avCmStatusMedGatewayAlarms140.0 = STRING:
avCmStatusMedGatewayAlarms141.0 = STRING:
avCmStatusMedGatewayAlarms142.0 = STRING:
avCmStatusMedGatewayAlarms143.0 = STRING:
avCmStatusMedGatewayAlarms144.0 = STRING:
avCmStatusMedGatewayAlarms145.0 = STRING:
avCmStatusMedGatewayAlarms146.0 = STRING:
avCmStatusMedGatewayAlarms147.0 = STRING:
avCmStatusMedGatewayAlarms148.0 = STRING:
avCmStatusMedGatewayAlarms149.0 = STRING:
avCmStatusMedGatewayAlarms150.0 = STRING:
avCmStatusMedGatewayAlarms151.0 = STRING:
avCmStatusMedGatewayAlarms152.0 = STRING:
avCmStatusMedGatewayAlarms153.0 = STRING:
avCmStatusMedGatewayAlarms154.0 = STRING:
avCmStatusMedGatewayAlarms155.0 = STRING:
avCmStatusMedGatewayAlarms156.0 = STRING:
avCmStatusMedGatewayAlarms157.0 = STRING:
avCmStatusMedGatewayAlarms158.0 = STRING:
avCmStatusMedGatewayAlarms159.0 = STRING:
avCmStatusMedGatewayAlarms160.0 = STRING:
avCmStatusMedGatewayAlarms161.0 = STRING:
avCmStatusMedGatewayAlarms162.0 = STRING:
avCmStatusMedGatewayAlarms163.0 = STRING:
avCmStatusMedGatewayAlarms164.0 = STRING:
avCmStatusMedGatewayAlarms165.0 = STRING:
avCmStatusMedGatewayAlarms166.0 = STRING:
avCmStatusMedGatewayAlarms167.0 = STRING:
avCmStatusMedGatewayAlarms168.0 = STRING:
avCmStatusMedGatewayAlarms169.0 = STRING:
avCmStatusMedGatewayAlarms170.0 = STRING:
avCmStatusMedGatewayAlarms171.0 = STRING:
avCmStatusMedGatewayAlarms172.0 = STRING:
avCmStatusMedGatewayAlarms173.0 = STRING:
avCmStatusMedGatewayAlarms174.0 = STRING:
avCmStatusMedGatewayAlarms175.0 = STRING:
avCmStatusMedGatewayAlarms176.0 = STRING:
avCmStatusMedGatewayAlarms177.0 = STRING:
avCmStatusMedGatewayAlarms178.0 = STRING:
avCmStatusMedGatewayAlarms179.0 = STRING:
avCmStatusMedGatewayAlarms180.0 = STRING:
avCmStatusMedGatewayAlarms181.0 = STRING:
avCmStatusMedGatewayAlarms182.0 = STRING:
avCmStatusMedGatewayAlarms183.0 = STRING:
avCmStatusMedGatewayAlarms184.0 = STRING:
avCmStatusMedGatewayAlarms185.0 = STRING:
avCmStatusMedGatewayAlarms186.0 = STRING:
avCmStatusMedGatewayAlarms187.0 = STRING:
avCmStatusMedGatewayAlarms188.0 = STRING:
avCmStatusMedGatewayAlarms189.0 = STRING:
avCmStatusMedGatewayAlarms190.0 = STRING:
avCmStatusMedGatewayAlarms191.0 = STRING:
avCmStatusMedGatewayAlarms192.0 = STRING:
avCmStatusMedGatewayAlarms193.0 = STRING:
avCmStatusMedGatewayAlarms194.0 = STRING:
avCmStatusMedGatewayAlarms195.0 = STRING:
avCmStatusMedGatewayAlarms196.0 = STRING:
avCmStatusMedGatewayAlarms197.0 = STRING:
avCmStatusMedGatewayAlarms198.0 = STRING:
avCmStatusMedGatewayAlarms199.0 = STRING:
avCmStatusMedGatewayAlarms200.0 = STRING:
avCmStatusMedGatewayAlarms201.0 = STRING:
avCmStatusMedGatewayAlarms202.0 = STRING:
avCmStatusMedGatewayAlarms203.0 = STRING:
avCmStatusMedGatewayAlarms204.0 = STRING:
avCmStatusMedGatewayAlarms205.0 = STRING:
avCmStatusMedGatewayAlarms206.0 = STRING:
avCmStatusMedGatewayAlarms207.0 = STRING:
avCmStatusMedGatewayAlarms208.0 = STRING:
avCmStatusMedGatewayAlarms209.0 = STRING:
avCmStatusMedGatewayAlarms210.0 = STRING:
avCmStatusMedGatewayAlarms211.0 = STRING:
avCmStatusMedGatewayAlarms212.0 = STRING:
avCmStatusMedGatewayAlarms213.0 = STRING:
avCmStatusMedGatewayAlarms214.0 = STRING:
avCmStatusMedGatewayAlarms215.0 = STRING:
avCmStatusMedGatewayAlarms216.0 = STRING:
avCmStatusMedGatewayAlarms217.0 = STRING:
avCmStatusMedGatewayAlarms218.0 = STRING:
avCmStatusMedGatewayAlarms219.0 = STRING:
avCmStatusMedGatewayAlarms220.0 = STRING:
avCmStatusMedGatewayAlarms221.0 = STRING:
avCmStatusMedGatewayAlarms222.0 = STRING:
avCmStatusMedGatewayAlarms223.0 = STRING:
avCmStatusMedGatewayAlarms224.0 = STRING:
avCmStatusMedGatewayAlarms225.0 = STRING:
avCmStatusMedGatewayAlarms226.0 = STRING:
avCmStatusMedGatewayAlarms227.0 = STRING:
avCmStatusMedGatewayAlarms228.0 = STRING:
avCmStatusMedGatewayAlarms229.0 = STRING:
avCmStatusMedGatewayAlarms230.0 = STRING:
avCmStatusMedGatewayAlarms231.0 = STRING:
avCmStatusMedGatewayAlarms232.0 = STRING:
avCmStatusMedGatewayAlarms233.0 = STRING:
avCmStatusMedGatewayAlarms234.0 = STRING:
avCmStatusMedGatewayAlarms235.0 = STRING:
avCmStatusMedGatewayAlarms236.0 = STRING:
avCmStatusMedGatewayAlarms237.0 = STRING:
avCmStatusMedGatewayAlarms238.0 = STRING:
avCmStatusMedGatewayAlarms239.0 = STRING:
avCmStatusMedGatewayAlarms240.0 = STRING:
avCmStatusMedGatewayAlarms241.0 = STRING:
avCmStatusMedGatewayAlarms242.0 = STRING:
avCmStatusMedGatewayAlarms243.0 = STRING:
avCmStatusMedGatewayAlarms244.0 = STRING:
avCmStatusMedGatewayAlarms245.0 = STRING:
avCmStatusMedGatewayAlarms246.0 = STRING:
avCmStatusMedGatewayAlarms247.0 = STRING:
avCmStatusMedGatewayAlarms248.0 = STRING:
avCmStatusMedGatewayAlarms249.0 = STRING:
avCmStatusMedGatewayAlarms250.0 = STRING:
avCmStatusMedGatewayAlarms251.0 = STRING:
avCmStatusMedGatewayAlarms252.0 = STRING:
avCmStatusMedGatewayAlarms253.0 = STRING:
avCmStatusMedGatewayAlarms254.0 = STRING:
avCmStatusMedGatewayAlarms255.0 = STRING:
avCmStatusMedGatewayAlarms256.0 = STRING:
avCmStatusMedGatewayAlarms257.0 = STRING:
avCmStatusMedGatewayAlarms258.0 = STRING:
avCmStatusMedGatewayAlarms259.0 = STRING:
avCmStatusMedGatewayAlarms260.0 = STRING:
avCmStatusMedGatewayAlarms261.0 = STRING:
avCmStatusMedGatewayAlarms262.0 = STRING:
avCmStatusMedGatewayAlarms263.0 = STRING:
avCmStatusMedGatewayAlarms264.0 = STRING:
avCmStatusMedGatewayAlarms265.0 = STRING:
avCmStatusMedGatewayAlarms266.0 = STRING:
avCmStatusMedGatewayAlarms267.0 = STRING:
avCmStatusMedGatewayAlarms268.0 = STRING:
avCmStatusMedGatewayAlarms269.0 = STRING:
avCmStatusMedGatewayAlarms270.0 = STRING:
avCmStatusMedGatewayAlarms271.0 = STRING:
avCmStatusMedGatewayAlarms272.0 = STRING:
avCmStatusMedGatewayAlarms273.0 = STRING:
avCmStatusMedGatewayAlarms274.0 = STRING:
avCmStatusMedGatewayAlarms275.0 = STRING:
avCmStatusMedGatewayAlarms276.0 = STRING:
avCmStatusMedGatewayAlarms277.0 = STRING:
avCmStatusMedGatewayAlarms278.0 = STRING:
avCmStatusMedGatewayAlarms279.0 = STRING:
avCmStatusMedGatewayAlarms280.0 = STRING:
avCmStatusMedGatewayAlarms281.0 = STRING:
avCmStatusMedGatewayAlarms282.0 = STRING:
avCmStatusMedGatewayAlarms283.0 = STRING:
avCmStatusMedGatewayAlarms284.0 = STRING:
avCmStatusMedGatewayAlarms285.0 = STRING:
avCmStatusMedGatewayAlarms286.0 = STRING:
avCmStatusMedGatewayAlarms287.0 = STRING:
avCmStatusMedGatewayAlarms288.0 = STRING:
avCmStatusMedGatewayAlarms289.0 = STRING:
avCmStatusMedGatewayAlarms290.0 = STRING:
avCmStatusMedGatewayAlarms291.0 = STRING:
avCmStatusMedGatewayAlarms292.0 = STRING:
avCmStatusMedGatewayAlarms293.0 = STRING:
avCmStatusMedGatewayAlarms294.0 = STRING:
avCmStatusMedGatewayAlarms295.0 = STRING:
avCmStatusMedGatewayAlarms296.0 = STRING:
avCmStatusMedGatewayAlarms297.0 = STRING:
avCmStatusMedGatewayAlarms298.0 = STRING:
avCmStatusMedGatewayAlarms299.0 = STRING:
avCmStatusMedGatewayAlarms300.0 = STRING:
avCmStatusMedGatewayAlarms301.0 = STRING:
avCmStatusMedGatewayAlarms302.0 = STRING:
avCmStatusMedGatewayAlarms303.0 = STRING:
avCmStatusMedGatewayAlarms304.0 = STRING:
avCmStatusMedGatewayAlarms305.0 = STRING:
avCmStatusMedGatewayAlarms306.0 = STRING:
avCmStatusMedGatewayAlarms307.0 = STRING:
avCmStatusMedGatewayAlarms308.0 = STRING:
avCmStatusMedGatewayAlarms309.0 = STRING:
avCmStatusMedGatewayAlarms310.0 = STRING:
avCmStatusMedGatewayAlarms311.0 = STRING:
avCmStatusMedGatewayAlarms312.0 = STRING:
avCmStatusMedGatewayAlarms313.0 = STRING:
avCmStatusMedGatewayAlarms314.0 = STRING:
avCmStatusMedGatewayAlarms315.0 = STRING:
avCmStatusMedGatewayAlarms316.0 = STRING:
avCmStatusMedGatewayAlarms317.0 = STRING:
avCmStatusMedGatewayAlarms318.0 = STRING:
avCmStatusMedGatewayAlarms319.0 = STRING:
avCmStatusMedGatewayAlarms320.0 = STRING:
avCmStatusMedGatewayAlarms321.0 = STRING:
avCmStatusMedGatewayAlarms322.0 = STRING:
avCmStatusMedGatewayAlarms323.0 = STRING:
avCmStatusMedGatewayAlarms324.0 = STRING:
avCmStatusMedGatewayAlarms325.0 = STRING:
avCmStatusMedGatewayAlarms326.0 = STRING:
avCmStatusMedGatewayAlarms327.0 = STRING:
avCmStatusMedGatewayAlarms328.0 = STRING:
avCmStatusMedGatewayAlarms329.0 = STRING:
avCmStatusMedGatewayAlarms330.0 = STRING:
avCmStatusMedGatewayAlarms331.0 = STRING:
avCmStatusMedGatewayAlarms332.0 = STRING:
avCmStatusMedGatewayAlarms333.0 = STRING:
avCmStatusMedGatewayAlarms334.0 = STRING:
avCmStatusMedGatewayAlarms335.0 = STRING:
avCmStatusMedGatewayAlarms336.0 = STRING:
avCmStatusMedGatewayAlarms337.0 = STRING:
avCmStatusMedGatewayAlarms338.0 = STRING:
avCmStatusMedGatewayAlarms339.0 = STRING:
avCmStatusMedGatewayAlarms340.0 = STRING:
avCmStatusMedGatewayAlarms341.0 = STRING:
avCmStatusMedGatewayAlarms342.0 = STRING:
avCmStatusMedGatewayAlarms343.0 = STRING:
avCmStatusMedGatewayAlarms344.0 = STRING:
avCmStatusMedGatewayAlarms345.0 = STRING:
avCmStatusMedGatewayAlarms346.0 = STRING:
avCmStatusMedGatewayAlarms347.0 = STRING:
avCmStatusMedGatewayAlarms348.0 = STRING:
avCmStatusMedGatewayAlarms349.0 = STRING:
avCmStatusMedGatewayAlarms350.0 = STRING:
avCmStatusMedGatewayAlarms351.0 = STRING:
avCmStatusMedGatewayAlarms352.0 = STRING:
avCmStatusMedGatewayAlarms353.0 = STRING:
avCmStatusMedGatewayAlarms354.0 = STRING:
avCmStatusMedGatewayAlarms355.0 = STRING:
avCmStatusMedGatewayAlarms356.0 = STRING:
avCmStatusMedGatewayAlarms357.0 = STRING:
avCmStatusMedGatewayAlarms358.0 = STRING:
avCmStatusMedGatewayAlarms359.0 = STRING:
avCmStatusMedGatewayAlarms360.0 = STRING:
avCmStatusMedGatewayAlarms361.0 = STRING:
avCmStatusMedGatewayAlarms362.0 = STRING:
avCmStatusMedGatewayAlarms363.0 = STRING:
avCmStatusMedGatewayAlarms364.0 = STRING:
avCmStatusMedGatewayAlarms365.0 = STRING:
avCmStatusMedGatewayAlarms366.0 = STRING:
avCmStatusMedGatewayAlarms367.0 = STRING:
avCmStatusMedGatewayAlarms368.0 = STRING:
avCmStatusMedGatewayAlarms369.0 = STRING:
avCmStatusMedGatewayAlarms370.0 = STRING:
avCmStatusMedGatewayAlarms371.0 = STRING:
avCmStatusMedGatewayAlarms372.0 = STRING:
avCmStatusMedGatewayAlarms373.0 = STRING:
avCmStatusMedGatewayAlarms374.0 = STRING:
avCmStatusMedGatewayAlarms375.0 = STRING:
avCmStatusMedGatewayAlarms376.0 = STRING:
avCmStatusMedGatewayAlarms377.0 = STRING:
avCmStatusMedGatewayAlarms378.0 = STRING:
avCmStatusMedGatewayAlarms379.0 = STRING:
avCmStatusMedGatewayAlarms380.0 = STRING:
avCmStatusMedGatewayAlarms381.0 = STRING:
avCmStatusMedGatewayAlarms382.0 = STRING:
avCmStatusMedGatewayAlarms383.0 = STRING:
avCmStatusMedGatewayAlarms384.0 = STRING:
avCmStatusMedGatewayAlarms385.0 = STRING:
avCmStatusMedGatewayAlarms386.0 = STRING:
avCmStatusMedGatewayAlarms387.0 = STRING:
avCmStatusMedGatewayAlarms388.0 = STRING:
avCmStatusMedGatewayAlarms389.0 = STRING:
avCmStatusMedGatewayAlarms390.0 = STRING:
avCmStatusMedGatewayAlarms391.0 = STRING:
avCmStatusMedGatewayAlarms392.0 = STRING:
avCmStatusMedGatewayAlarms393.0 = STRING:
avCmStatusMedGatewayAlarms394.0 = STRING:
avCmStatusMedGatewayAlarms395.0 = STRING:
avCmStatusMedGatewayAlarms396.0 = STRING:
avCmStatusMedGatewayAlarms397.0 = STRING:
avCmStatusMedGatewayAlarms398.0 = STRING:
avCmStatusMedGatewayAlarms399.0 = STRING:
avCmStatusMedGatewayAlarms400.0 = STRING:
avCmStatusMedGatewayAlarms401.0 = STRING:
avCmStatusMedGatewayAlarms402.0 = STRING:
avCmStatusMedGatewayAlarms403.0 = STRING:
avCmStatusMedGatewayAlarms404.0 = STRING:
avCmStatusMedGatewayAlarms405.0 = STRING:
avCmStatusMedGatewayAlarms406.0 = STRING:
avCmStatusMedGatewayAlarms407.0 = STRING:
avCmStatusMedGatewayAlarms408.0 = STRING:
avCmStatusMedGatewayAlarms409.0 = STRING:
avCmStatusMedGatewayAlarms410.0 = STRING:
avCmStatusMedGatewayAlarms411.0 = STRING:
avCmStatusMedGatewayAlarms412.0 = STRING:
avCmStatusMedGatewayAlarms413.0 = STRING:
avCmStatusMedGatewayAlarms414.0 = STRING:
avCmStatusMedGatewayAlarms415.0 = STRING:
avCmStatusMedGatewayAlarms416.0 = STRING:
avCmStatusMedGatewayAlarms417.0 = STRING:
avCmStatusMedGatewayAlarms418.0 = STRING:
avCmStatusMedGatewayAlarms419.0 = STRING:
avCmStatusMedGatewayAlarms420.0 = STRING:
avCmStatusMedGatewayAlarms421.0 = STRING:
avCmStatusMedGatewayAlarms422.0 = STRING:
avCmStatusMedGatewayAlarms423.0 = STRING:
avCmStatusMedGatewayAlarms424.0 = STRING:
avCmStatusMedGatewayAlarms425.0 = STRING:
avCmStatusMedGatewayAlarms426.0 = STRING:
avCmStatusMedGatewayAlarms427.0 = STRING:
avCmStatusMedGatewayAlarms428.0 = STRING:
avCmStatusMedGatewayAlarms429.0 = STRING:
avCmStatusMedGatewayAlarms430.0 = STRING:
avCmStatusMedGatewayAlarms431.0 = STRING:
avCmStatusMedGatewayAlarms432.0 = STRING:
avCmStatusMedGatewayAlarms433.0 = STRING:
avCmStatusMedGatewayAlarms434.0 = STRING:
avCmStatusMedGatewayAlarms435.0 = STRING:
avCmStatusMedGatewayAlarms436.0 = STRING:
avCmStatusMedGatewayAlarms437.0 = STRING:
avCmStatusMedGatewayAlarms438.0 = STRING:
avCmStatusMedGatewayAlarms439.0 = STRING:
avCmStatusMedGatewayAlarms440.0 = STRING:
avCmStatusMedGatewayAlarms441.0 = STRING:
avCmStatusMedGatewayAlarms442.0 = STRING:
avCmStatusMedGatewayAlarms443.0 = STRING:
avCmStatusMedGatewayAlarms444.0 = STRING:
avCmStatusMedGatewayAlarms445.0 = STRING:
avCmStatusMedGatewayAlarms446.0 = STRING:
avCmStatusMedGatewayAlarms447.0 = STRING:
avCmStatusMedGatewayAlarms448.0 = STRING:
avCmStatusMedGatewayAlarms449.0 = STRING:
avCmStatusMedGatewayAlarms450.0 = STRING:
avCmStatusMedGatewayAlarms451.0 = STRING:
avCmStatusMedGatewayAlarms452.0 = STRING:
avCmStatusMedGatewayAlarms453.0 = STRING:
avCmStatusMedGatewayAlarms454.0 = STRING:
avCmStatusMedGatewayAlarms455.0 = STRING:
avCmStatusMedGatewayAlarms456.0 = STRING:
avCmStatusMedGatewayAlarms457.0 = STRING:
avCmStatusMedGatewayAlarms458.0 = STRING:
avCmStatusMedGatewayAlarms459.0 = STRING:
avCmStatusMedGatewayAlarms460.0 = STRING:
avCmStatusMedGatewayAlarms461.0 = STRING:
avCmStatusMedGatewayAlarms462.0 = STRING:
avCmStatusMedGatewayAlarms463.0 = STRING:
avCmStatusMedGatewayAlarms464.0 = STRING:
avCmStatusMedGatewayAlarms465.0 = STRING:
avCmStatusMedGatewayAlarms466.0 = STRING:
avCmStatusMedGatewayAlarms467.0 = STRING:
avCmStatusMedGatewayAlarms468.0 = STRING:
avCmStatusMedGatewayAlarms469.0 = STRING:
avCmStatusMedGatewayAlarms470.0 = STRING:
avCmStatusMedGatewayAlarms471.0 = STRING:
avCmStatusMedGatewayAlarms472.0 = STRING:
avCmStatusMedGatewayAlarms473.0 = STRING:
avCmStatusMedGatewayAlarms474.0 = STRING:
avCmStatusMedGatewayAlarms475.0 = STRING:
avCmStatusMedGatewayAlarms476.0 = STRING:
avCmStatusMedGatewayAlarms477.0 = STRING:
avCmStatusMedGatewayAlarms478.0 = STRING:
avCmStatusMedGatewayAlarms479.0 = STRING:
avCmStatusMedGatewayAlarms480.0 = STRING:
avCmStatusMedGatewayAlarms481.0 = STRING:
avCmStatusMedGatewayAlarms482.0 = STRING:
avCmStatusMedGatewayAlarms483.0 = STRING:
avCmStatusMedGatewayAlarms484.0 = STRING:
avCmStatusMedGatewayAlarms485.0 = STRING:
avCmStatusMedGatewayAlarms486.0 = STRING:
avCmStatusMedGatewayAlarms487.0 = STRING:
avCmStatusMedGatewayAlarms488.0 = STRING:
avCmStatusMedGatewayAlarms489.0 = STRING:
avCmStatusMedGatewayAlarms490.0 = STRING:
avCmStatusMedGatewayAlarms491.0 = STRING:
avCmStatusMedGatewayAlarms492.0 = STRING:
avCmStatusMedGatewayAlarms493.0 = STRING:
avCmStatusMedGatewayAlarms494.0 = STRING:
avCmStatusMedGatewayAlarms495.0 = STRING:
avCmStatusMedGatewayAlarms496.0 = STRING:
avCmStatusMedGatewayAlarms497.0 = STRING:
avCmStatusMedGatewayAlarms498.0 = STRING:
avCmStatusMedGatewayAlarms499.0 = STRING:
avCmStatusMedGatewayAlarms500.0 = STRING:
avCmStatusMedGatewayAlarms501.0 = STRING:
avCmStatusMedGatewayAlarms502.0 = STRING:
avCmStatusMedGatewayAlarms503.0 = STRING:
avCmStatusMedGatewayAlarms504.0 = STRING:
avCmStatusMedGatewayAlarms505.0 = STRING:
avCmStatusMedGatewayAlarms506.0 = STRING:
avCmStatusMedGatewayAlarms507.0 = STRING:
avCmStatusMedGatewayAlarms508.0 = STRING:
avCmStatusMedGatewayAlarms509.0 = STRING:
avCmStatusMedGatewayAlarms510.0 = STRING:
avCmStatusMedGatewayAlarms511.0 = STRING:
avCmStatusMedGatewayAlarms512.0 = STRING:
avCmStatusMedGatewayAlarms513.0 = STRING:
avCmStatusMedGatewayAlarms514.0 = STRING:
avCmStatusMedGatewayAlarms515.0 = STRING:
avCmStatusMedGatewayAlarms516.0 = STRING:
avCmStatusMedGatewayAlarms517.0 = STRING:
avCmStatusMedGatewayAlarms518.0 = STRING:
avCmStatusMedGatewayAlarms519.0 = STRING:
avCmStatusMedGatewayAlarms520.0 = STRING:
avCmStatusMedGatewayAlarms521.0 = STRING:
avCmStatusMedGatewayAlarms522.0 = STRING:
avCmStatusMedGatewayAlarms523.0 = STRING:
avCmStatusMedGatewayAlarms524.0 = STRING:
avCmStatusMedGatewayAlarms525.0 = STRING:
avCmStatusMedGatewayAlarms526.0 = STRING:
avCmStatusMedGatewayAlarms527.0 = STRING:
avCmStatusMedGatewayAlarms528.0 = STRING:
avCmStatusMedGatewayAlarms529.0 = STRING:
avCmStatusMedGatewayAlarms530.0 = STRING:
avCmStatusMedGatewayAlarms531.0 = STRING:
avCmStatusMedGatewayAlarms532.0 = STRING:
avCmStatusMedGatewayAlarms533.0 = STRING:
avCmStatusMedGatewayAlarms534.0 = STRING:
avCmStatusMedGatewayAlarms535.0 = STRING:
avCmStatusMedGatewayAlarms536.0 = STRING:
avCmStatusMedGatewayAlarms537.0 = STRING:
avCmStatusMedGatewayAlarms538.0 = STRING:
avCmStatusMedGatewayAlarms539.0 = STRING:
avCmStatusMedGatewayAlarms540.0 = STRING:
avCmStatusMedGatewayAlarms541.0 = STRING:
avCmStatusMedGatewayAlarms542.0 = STRING:
avCmStatusMedGatewayAlarms543.0 = STRING:
avCmStatusMedGatewayAlarms544.0 = STRING:
avCmStatusMedGatewayAlarms545.0 = STRING:
avCmStatusMedGatewayAlarms546.0 = STRING:
avCmStatusMedGatewayAlarms547.0 = STRING:
avCmStatusMedGatewayAlarms548.0 = STRING:
avCmStatusMedGatewayAlarms549.0 = STRING:
avCmStatusMedGatewayAlarms550.0 = STRING:
avCmStatusMedGatewayAlarms551.0 = STRING:
avCmStatusMedGatewayAlarms552.0 = STRING:
avCmStatusMedGatewayAlarms553.0 = STRING:
avCmStatusMedGatewayAlarms554.0 = STRING:
avCmStatusMedGatewayAlarms555.0 = STRING:
avCmStatusMedGatewayAlarms556.0 = STRING:
avCmStatusMedGatewayAlarms557.0 = STRING:
avCmStatusMedGatewayAlarms558.0 = STRING:
avCmStatusMedGatewayAlarms559.0 = STRING:
avCmStatusMedGatewayAlarms560.0 = STRING:
avCmStatusMedGatewayAlarms561.0 = STRING:
avCmStatusMedGatewayAlarms562.0 = STRING:
avCmStatusMedGatewayAlarms563.0 = STRING:
avCmStatusMedGatewayAlarms564.0 = STRING:
avCmStatusMedGatewayAlarms565.0 = STRING:
avCmStatusMedGatewayAlarms566.0 = STRING:
avCmStatusMedGatewayAlarms567.0 = STRING:
avCmStatusMedGatewayAlarms568.0 = STRING:
avCmStatusMedGatewayAlarms569.0 = STRING:
avCmStatusMedGatewayAlarms570.0 = STRING:
avCmStatusMedGatewayAlarms571.0 = STRING:
avCmStatusMedGatewayAlarms572.0 = STRING:
avCmStatusMedGatewayAlarms573.0 = STRING:
avCmStatusMedGatewayAlarms574.0 = STRING:
avCmStatusMedGatewayAlarms575.0 = STRING:
avCmStatusMedGatewayAlarms576.0 = STRING:
avCmStatusMedGatewayAlarms577.0 = STRING:
avCmStatusMedGatewayAlarms578.0 = STRING:
avCmStatusMedGatewayAlarms579.0 = STRING:
avCmStatusMedGatewayAlarms580.0 = STRING:
avCmStatusMedGatewayAlarms581.0 = STRING:
avCmStatusMedGatewayAlarms582.0 = STRING:
avCmStatusMedGatewayAlarms583.0 = STRING:
avCmStatusMedGatewayAlarms584.0 = STRING:
avCmStatusMedGatewayAlarms585.0 = STRING:
avCmStatusMedGatewayAlarms586.0 = STRING:
avCmStatusMedGatewayAlarms587.0 = STRING:
avCmStatusMedGatewayAlarms588.0 = STRING:
avCmStatusMedGatewayAlarms589.0 = STRING:
avCmStatusMedGatewayAlarms590.0 = STRING:
avCmStatusMedGatewayAlarms591.0 = STRING:
avCmStatusMedGatewayAlarms592.0 = STRING:
avCmStatusMedGatewayAlarms593.0 = STRING:
avCmStatusMedGatewayAlarms594.0 = STRING:
avCmStatusMedGatewayAlarms595.0 = STRING:
avCmStatusMedGatewayAlarms596.0 = STRING:
avCmStatusMedGatewayAlarms597.0 = STRING:
avCmStatusMedGatewayAlarms598.0 = STRING:
avCmStatusMedGatewayAlarms599.0 = STRING:
avCmStatusMedGatewayAlarms600.0 = STRING:
avCmStatusMedGatewayAlarms601.0 = STRING:
avCmStatusMedGatewayAlarms602.0 = STRING:
avCmStatusMedGatewayAlarms603.0 = STRING:
avCmStatusMedGatewayAlarms604.0 = STRING:
avCmStatusMedGatewayAlarms605.0 = STRING:
avCmStatusMedGatewayAlarms606.0 = STRING:
avCmStatusMedGatewayAlarms607.0 = STRING:
avCmStatusMedGatewayAlarms608.0 = STRING:
avCmStatusMedGatewayAlarms609.0 = STRING:
avCmStatusMedGatewayAlarms610.0 = STRING:
avCmStatusMedGatewayAlarms611.0 = STRING:
avCmStatusMedGatewayAlarms612.0 = STRING:
avCmStatusMedGatewayAlarms613.0 = STRING:
avCmStatusMedGatewayAlarms614.0 = STRING:
avCmStatusMedGatewayAlarms615.0 = STRING:
avCmStatusMedGatewayAlarms616.0 = STRING:
avCmStatusMedGatewayAlarms617.0 = STRING:
avCmStatusMedGatewayAlarms618.0 = STRING:
avCmStatusMedGatewayAlarms619.0 = STRING:
avCmStatusMedGatewayAlarms620.0 = STRING:
avCmStatusMedGatewayAlarms621.0 = STRING:
avCmStatusMedGatewayAlarms622.0 = STRING:
avCmStatusMedGatewayAlarms623.0 = STRING:
avCmStatusMedGatewayAlarms624.0 = STRING:
avCmStatusMedGatewayAlarms625.0 = STRING:
avCmStatusMedGatewayAlarms626.0 = STRING:
avCmStatusMedGatewayAlarms627.0 = STRING:
avCmStatusMedGatewayAlarms628.0 = STRING:
avCmStatusMedGatewayAlarms629.0 = STRING:
avCmStatusMedGatewayAlarms630.0 = STRING:
avCmStatusMedGatewayAlarms631.0 = STRING:
avCmStatusMedGatewayAlarms632.0 = STRING:
avCmStatusMedGatewayAlarms633.0 = STRING:
avCmStatusMedGatewayAlarms634.0 = STRING:
avCmStatusMedGatewayAlarms635.0 = STRING:
avCmStatusMedGatewayAlarms636.0 = STRING:
avCmStatusMedGatewayAlarms637.0 = STRING:
avCmStatusMedGatewayAlarms638.0 = STRING:
avCmStatusMedGatewayAlarms639.0 = STRING:
avCmStatusMedGatewayAlarms640.0 = STRING:
avCmStatusMedGatewayAlarms641.0 = STRING:
avCmStatusMedGatewayAlarms642.0 = STRING:
avCmStatusMedGatewayAlarms643.0 = STRING:
avCmStatusMedGatewayAlarms644.0 = STRING:
avCmStatusMedGatewayAlarms645.0 = STRING:
avCmStatusMedGatewayAlarms646.0 = STRING:
avCmStatusMedGatewayAlarms647.0 = STRING:
avCmStatusMedGatewayAlarms648.0 = STRING:
avCmStatusMedGatewayAlarms649.0 = STRING:
avCmStatusMedGatewayAlarms650.0 = STRING:
avCmStatusMedGatewayAlarms651.0 = STRING:
avCmStatusMedGatewayAlarms652.0 = STRING:
avCmStatusMedGatewayAlarms653.0 = STRING:
avCmStatusMedGatewayAlarms654.0 = STRING:
avCmStatusMedGatewayAlarms655.0 = STRING:
avCmStatusMedGatewayAlarms656.0 = STRING:
avCmStatusMedGatewayAlarms657.0 = STRING:
avCmStatusMedGatewayAlarms658.0 = STRING:
avCmStatusMedGatewayAlarms659.0 = STRING:
avCmStatusMedGatewayAlarms660.0 = STRING:
avCmStatusMedGatewayAlarms661.0 = STRING:
avCmStatusMedGatewayAlarms662.0 = STRING:
avCmStatusMedGatewayAlarms663.0 = STRING:
avCmStatusMedGatewayAlarms664.0 = STRING:
avCmStatusMedGatewayAlarms665.0 = STRING:
avCmStatusMedGatewayAlarms666.0 = STRING:
avCmStatusMedGatewayAlarms667.0 = STRING:
avCmStatusMedGatewayAlarms668.0 = STRING:
avCmStatusMedGatewayAlarms669.0 = STRING:
avCmStatusMedGatewayAlarms670.0 = STRING:
avCmStatusMedGatewayAlarms671.0 = STRING:
avCmStatusMedGatewayAlarms672.0 = STRING:
avCmStatusMedGatewayAlarms673.0 = STRING:
avCmStatusMedGatewayAlarms674.0 = STRING:
avCmStatusMedGatewayAlarms675.0 = STRING:
avCmStatusMedGatewayAlarms676.0 = STRING:
avCmStatusMedGatewayAlarms677.0 = STRING:
avCmStatusMedGatewayAlarms678.0 = STRING:
avCmStatusMedGatewayAlarms679.0 = STRING:
avCmStatusMedGatewayAlarms680.0 = STRING:
avCmStatusMedGatewayAlarms681.0 = STRING:
avCmStatusMedGatewayAlarms682.0 = STRING:
avCmStatusMedGatewayAlarms683.0 = STRING:
avCmStatusMedGatewayAlarms684.0 = STRING:
avCmStatusMedGatewayAlarms685.0 = STRING:
avCmStatusMedGatewayAlarms686.0 = STRING:
avCmStatusMedGatewayAlarms687.0 = STRING:
avCmStatusMedGatewayAlarms688.0 = STRING:
avCmStatusMedGatewayAlarms689.0 = STRING:
avCmStatusMedGatewayAlarms690.0 = STRING:
avCmStatusMedGatewayAlarms691.0 = STRING:
avCmStatusMedGatewayAlarms692.0 = STRING:
avCmStatusMedGatewayAlarms693.0 = STRING:
avCmStatusMedGatewayAlarms694.0 = STRING:
avCmStatusMedGatewayAlarms695.0 = STRING:
avCmStatusMedGatewayAlarms696.0 = STRING:
avCmStatusMedGatewayAlarms697.0 = STRING:
avCmStatusMedGatewayAlarms698.0 = STRING:
avCmStatusMedGatewayAlarms699.0 = STRING:
avCmStatusMedGatewayAlarms700.0 = STRING:
avCmStatusMedGatewayAlarms701.0 = STRING:
avCmStatusMedGatewayAlarms702.0 = STRING:
avCmStatusMedGatewayAlarms703.0 = STRING:
avCmStatusMedGatewayAlarms704.0 = STRING:
avCmStatusMedGatewayAlarms705.0 = STRING:
avCmStatusMedGatewayAlarms706.0 = STRING:
avCmStatusMedGatewayAlarms707.0 = STRING:
avCmStatusMedGatewayAlarms708.0 = STRING:
avCmStatusMedGatewayAlarms709.0 = STRING:
avCmStatusMedGatewayAlarms710.0 = STRING:
avCmStatusMedGatewayAlarms711.0 = STRING:
avCmStatusMedGatewayAlarms712.0 = STRING:
avCmStatusMedGatewayAlarms713.0 = STRING:
avCmStatusMedGatewayAlarms714.0 = STRING:
avCmStatusMedGatewayAlarms715.0 = STRING:
avCmStatusMedGatewayAlarms716.0 = STRING:
avCmStatusMedGatewayAlarms717.0 = STRING:
avCmStatusMedGatewayAlarms718.0 = STRING:
avCmStatusMedGatewayAlarms719.0 = STRING:
avCmStatusMedGatewayAlarms720.0 = STRING:
avCmStatusMedGatewayAlarms721.0 = STRING:
avCmStatusMedGatewayAlarms722.0 = STRING:
avCmStatusMedGatewayAlarms723.0 = STRING:
avCmStatusMedGatewayAlarms724.0 = STRING:
avCmStatusMedGatewayAlarms725.0 = STRING:
avCmStatusMedGatewayAlarms726.0 = STRING:
avCmStatusMedGatewayAlarms727.0 = STRING:
avCmStatusMedGatewayAlarms728.0 = STRING:
avCmStatusMedGatewayAlarms729.0 = STRING:
avCmStatusMedGatewayAlarms730.0 = STRING:
avCmStatusMedGatewayAlarms731.0 = STRING:
avCmStatusMedGatewayAlarms732.0 = STRING:
avCmStatusMedGatewayAlarms733.0 = STRING:
avCmStatusMedGatewayAlarms734.0 = STRING:
avCmStatusMedGatewayAlarms735.0 = STRING:
avCmStatusMedGatewayAlarms736.0 = STRING:
avCmStatusMedGatewayAlarms737.0 = STRING:
avCmStatusMedGatewayAlarms738.0 = STRING:
avCmStatusMedGatewayAlarms739.0 = STRING:
avCmStatusMedGatewayAlarms740.0 = STRING:
avCmStatusMedGatewayAlarms741.0 = STRING:
avCmStatusMedGatewayAlarms742.0 = STRING:
avCmStatusMedGatewayAlarms743.0 = STRING:
avCmStatusMedGatewayAlarms744.0 = STRING:
avCmStatusMedGatewayAlarms745.0 = STRING:
avCmStatusMedGatewayAlarms746.0 = STRING:
avCmStatusMedGatewayAlarms747.0 = STRING:
avCmStatusMedGatewayAlarms748.0 = STRING:
avCmStatusMedGatewayAlarms749.0 = STRING:
avCmStatusMedGatewayAlarms750.0 = STRING:
avCmStatusMedGatewayAlarms751.0 = STRING:
avCmStatusMedGatewayAlarms752.0 = STRING:
avCmStatusMedGatewayAlarms753.0 = STRING:
avCmStatusMedGatewayAlarms754.0 = STRING:
avCmStatusMedGatewayAlarms755.0 = STRING:
avCmStatusMedGatewayAlarms756.0 = STRING:
avCmStatusMedGatewayAlarms757.0 = STRING:
avCmStatusMedGatewayAlarms758.0 = STRING:
avCmStatusMedGatewayAlarms759.0 = STRING:
avCmStatusMedGatewayAlarms760.0 = STRING:
avCmStatusMedGatewayAlarms761.0 = STRING:
avCmStatusMedGatewayAlarms762.0 = STRING:
avCmStatusMedGatewayAlarms763.0 = STRING:
avCmStatusMedGatewayAlarms764.0 = STRING:
avCmStatusMedGatewayAlarms765.0 = STRING:
avCmStatusMedGatewayAlarms766.0 = STRING:
avCmStatusMedGatewayAlarms767.0 = STRING:
avCmStatusMedGatewayAlarms768.0 = STRING:
avCmStatusMedGatewayAlarms769.0 = STRING:
avCmStatusMedGatewayAlarms770.0 = STRING:
avCmStatusMedGatewayAlarms771.0 = STRING:
avCmStatusMedGatewayAlarms772.0 = STRING:
avCmStatusMedGatewayAlarms773.0 = STRING:
avCmStatusMedGatewayAlarms774.0 = STRING:
avCmStatusMedGatewayAlarms775.0 = STRING:
avCmStatusMedGatewayAlarms776.0 = STRING:
avCmStatusMedGatewayAlarms777.0 = STRING:
avCmStatusMedGatewayAlarms778.0 = STRING:
avCmStatusMedGatewayAlarms779.0 = STRING:
avCmStatusMedGatewayAlarms780.0 = STRING:
avCmStatusMedGatewayAlarms781.0 = STRING:
avCmStatusMedGatewayAlarms782.0 = STRING:
avCmStatusMedGatewayAlarms783.0 = STRING:
avCmStatusMedGatewayAlarms784.0 = STRING:
avCmStatusMedGatewayAlarms785.0 = STRING:
avCmStatusMedGatewayAlarms786.0 = STRING:
avCmStatusMedGatewayAlarms787.0 = STRING:
avCmStatusMedGatewayAlarms788.0 = STRING:
avCmStatusMedGatewayAlarms789.0 = STRING:
avCmStatusMedGatewayAlarms790.0 = STRING:
avCmStatusMedGatewayAlarms791.0 = STRING:
avCmStatusMedGatewayAlarms792.0 = STRING:
avCmStatusMedGatewayAlarms793.0 = STRING:
avCmStatusMedGatewayAlarms794.0 = STRING:
avCmStatusMedGatewayAlarms795.0 = STRING:
avCmStatusMedGatewayAlarms796.0 = STRING:
avCmStatusMedGatewayAlarms797.0 = STRING:
avCmStatusMedGatewayAlarms798.0 = STRING:
avCmStatusMedGatewayAlarms799.0 = STRING:
avCmStatusMedGatewayAlarms800.0 = STRING:
avCmStatusMedGatewayAlarms801.0 = STRING:
avCmStatusMedGatewayAlarms802.0 = STRING:
avCmStatusMedGatewayAlarms803.0 = STRING:
avCmStatusMedGatewayAlarms804.0 = STRING:
avCmStatusMedGatewayAlarms805.0 = STRING:
avCmStatusMedGatewayAlarms806.0 = STRING:
avCmStatusMedGatewayAlarms807.0 = STRING:
avCmStatusMedGatewayAlarms808.0 = STRING:
avCmStatusMedGatewayAlarms809.0 = STRING:
avCmStatusMedGatewayAlarms810.0 = STRING:
avCmStatusMedGatewayAlarms811.0 = STRING:
avCmStatusMedGatewayAlarms812.0 = STRING:
avCmStatusMedGatewayAlarms813.0 = STRING:
avCmStatusMedGatewayAlarms814.0 = STRING:
avCmStatusMedGatewayAlarms815.0 = STRING:
avCmStatusMedGatewayAlarms816.0 = STRING:
avCmStatusMedGatewayAlarms817.0 = STRING:
avCmStatusMedGatewayAlarms818.0 = STRING:
avCmStatusMedGatewayAlarms819.0 = STRING:
avCmStatusMedGatewayAlarms820.0 = STRING:
avCmStatusMedGatewayAlarms821.0 = STRING:
avCmStatusMedGatewayAlarms822.0 = STRING:
avCmStatusMedGatewayAlarms823.0 = STRING:
avCmStatusMedGatewayAlarms824.0 = STRING:
avCmStatusMedGatewayAlarms825.0 = STRING:
avCmStatusMedGatewayAlarms826.0 = STRING:
avCmStatusMedGatewayAlarms827.0 = STRING:
avCmStatusMedGatewayAlarms828.0 = STRING:
avCmStatusMedGatewayAlarms829.0 = STRING:
avCmStatusMedGatewayAlarms830.0 = STRING:
avCmStatusMedGatewayAlarms831.0 = STRING:
avCmStatusMedGatewayAlarms832.0 = STRING:
avCmStatusMedGatewayAlarms833.0 = STRING:
avCmStatusMedGatewayAlarms834.0 = STRING:
avCmStatusMedGatewayAlarms835.0 = STRING:
avCmStatusMedGatewayAlarms836.0 = STRING:
avCmStatusMedGatewayAlarms837.0 = STRING:
avCmStatusMedGatewayAlarms838.0 = STRING:
avCmStatusMedGatewayAlarms839.0 = STRING:
avCmStatusMedGatewayAlarms840.0 = STRING:
avCmStatusMedGatewayAlarms841.0 = STRING:
avCmStatusMedGatewayAlarms842.0 = STRING:
avCmStatusMedGatewayAlarms843.0 = STRING:
avCmStatusMedGatewayAlarms844.0 = STRING:
avCmStatusMedGatewayAlarms845.0 = STRING:
avCmStatusMedGatewayAlarms846.0 = STRING:
avCmStatusMedGatewayAlarms847.0 = STRING:
avCmStatusMedGatewayAlarms848.0 = STRING:
avCmStatusMedGatewayAlarms849.0 = STRING:
avCmStatusMedGatewayAlarms850.0 = STRING:
avCmStatusMedGatewayAlarms851.0 = STRING:
avCmStatusMedGatewayAlarms852.0 = STRING:
avCmStatusMedGatewayAlarms853.0 = STRING:
avCmStatusMedGatewayAlarms854.0 = STRING:
avCmStatusMedGatewayAlarms855.0 = STRING:
avCmStatusMedGatewayAlarms856.0 = STRING:
avCmStatusMedGatewayAlarms857.0 = STRING:
avCmStatusMedGatewayAlarms858.0 = STRING:
avCmStatusMedGatewayAlarms859.0 = STRING:
avCmStatusMedGatewayAlarms860.0 = STRING:
avCmStatusMedGatewayAlarms861.0 = STRING:
avCmStatusMedGatewayAlarms862.0 = STRING:
avCmStatusMedGatewayAlarms863.0 = STRING:
avCmStatusMedGatewayAlarms864.0 = STRING:
avCmStatusMedGatewayAlarms865.0 = STRING:
avCmStatusMedGatewayAlarms866.0 = STRING:
avCmStatusMedGatewayAlarms667.0 = STRING:
avCmStatusMedGatewayAlarms868.0 = STRING:
avCmStatusMedGatewayAlarms869.0 = STRING:
avCmStatusMedGatewayAlarms870.0 = STRING:
avCmStatusMedGatewayAlarms871.0 = STRING:
avCmStatusMedGatewayAlarms872.0 = STRING:
avCmStatusMedGatewayAlarms873.0 = STRING:
avCmStatusMedGatewayAlarms874.0 = STRING:
avCmStatusMedGatewayAlarms875.0 = STRING:
avCmStatusMedGatewayAlarms876.0 = STRING:
avCmStatusMedGatewayAlarms877.0 = STRING:
avCmStatusMedGatewayAlarms878.0 = STRING:
avCmStatusMedGatewayAlarms879.0 = STRING:
avCmStatusMedGatewayAlarms880.0 = STRING:
avCmStatusMedGatewayAlarms881.0 = STRING:
avCmStatusMedGatewayAlarms882.0 = STRING:
avCmStatusMedGatewayAlarms883.0 = STRING:
avCmStatusMedGatewayAlarms884.0 = STRING:
avCmStatusMedGatewayAlarms885.0 = STRING:
avCmStatusMedGatewayAlarms886.0 = STRING:
avCmStatusMedGatewayAlarms887.0 = STRING:
avCmStatusMedGatewayAlarms888.0 = STRING:
avCmStatusMedGatewayAlarms889.0 = STRING:
avCmStatusMedGatewayAlarms890.0 = STRING:
avCmStatusMedGatewayAlarms891.0 = STRING:
avCmStatusMedGatewayAlarms892.0 = STRING:
avCmStatusMedGatewayAlarms893.0 = STRING:
avCmStatusMedGatewayAlarms894.0 = STRING:
avCmStatusMedGatewayAlarms895.0 = STRING:
avCmStatusMedGatewayAlarms896.0 = STRING:
avCmStatusMedGatewayAlarms897.0 = STRING:
avCmStatusMedGatewayAlarms898.0 = STRING:
avCmStatusMedGatewayAlarms899.0 = STRING:
avCmStatusMedGatewayAlarms900.0 = STRING:
avCmStatusMedGatewayAlarms901.0 = STRING:
avCmStatusMedGatewayAlarms902.0 = STRING:
avCmStatusMedGatewayAlarms903.0 = STRING:
avCmStatusMedGatewayAlarms904.0 = STRING:
avCmStatusMedGatewayAlarms905.0 = STRING:
avCmStatusMedGatewayAlarms906.0 = STRING:
avCmStatusMedGatewayAlarms907.0 = STRING:
avCmStatusMedGatewayAlarms907.0 = STRING:
avCmStatusMedGatewayAlarms908.0 = STRING:
avCmStatusMedGatewayAlarms909.0 = STRING:
avCmStatusMedGatewayAlarms910.0 = STRING:
avCmStatusMedGatewayAlarms911.0 = STRING:
avCmStatusMedGatewayAlarms912.0 = STRING:
avCmStatusMedGatewayAlarms913.0 = STRING:
avCmStatusMedGatewayAlarms914.0 = STRING:
avCmStatusMedGatewayAlarms915.0 = STRING:
avCmStatusMedGatewayAlarms916.0 = STRING:
avCmStatusMedGatewayAlarms917.0 = STRING:
avCmStatusMedGatewayAlarms918.0 = STRING:
avCmStatusMedGatewayAlarms919.0 = STRING:
avCmStatusMedGatewayAlarms920.0 = STRING:
avCmStatusMedGatewayAlarms921.0 = STRING:
avCmStatusMedGatewayAlarms922.0 = STRING:
avCmStatusMedGatewayAlarms923.0 = STRING:
avCmStatusMedGatewayAlarms924.0 = STRING:
avCmStatusMedGatewayAlarms925.0 = STRING:
avCmStatusMedGatewayAlarms926.0 = STRING:
avCmStatusMedGatewayAlarms927.0 = STRING:
avCmStatusMedGatewayAlarms928.0 = STRING:
avCmStatusMedGatewayAlarms929.0 = STRING:
avCmStatusMedGatewayAlarms930.0 = STRING:
avCmStatusMedGatewayAlarms931.0 = STRING:
avCmStatusMedGatewayAlarms932.0 = STRING:
avCmStatusMedGatewayAlarms933.0 = STRING:
avCmStatusMedGatewayAlarms934.0 = STRING:
avCmStatusMedGatewayAlarms935.0 = STRING:
avCmStatusMedGatewayAlarms936.0 = STRING:
avCmStatusMedGatewayAlarms937.0 = STRING:
avCmStatusMedGatewayAlarms938.0 = STRING:
avCmStatusMedGatewayAlarms939.0 = STRING:
avCmStatusMedGatewayAlarms940.0 = STRING:
avCmStatusMedGatewayAlarms941.0 = STRING:
avCmStatusMedGatewayAlarms942.0 = STRING:
avCmStatusMedGatewayAlarms943.0 = STRING:
avCmStatusMedGatewayAlarms944.0 = STRING:
avCmStatusMedGatewayAlarms945.0 = STRING:
avCmStatusMedGatewayAlarms946.0 = STRING:
avCmStatusMedGatewayAlarms947.0 = STRING:
avCmStatusMedGatewayAlarms948.0 = STRING:
avCmStatusMedGatewayAlarms949.0 = STRING:
avCmStatusMedGatewayAlarms950.0 = STRING:
avCmStatusMedGatewayAlarms951.0 = STRING:
avCmStatusMedGatewayAlarms952.0 = STRING:
avCmStatusMedGatewayAlarms953.0 = STRING:
avCmStatusMedGatewayAlarms954.0 = STRING:
avCmStatusMedGatewayAlarms955.0 = STRING:
avCmStatusMedGatewayAlarms956.0 = STRING:
avCmStatusMedGatewayAlarms957.0 = STRING:
avCmStatusMedGatewayAlarms958.0 = STRING:
avCmStatusMedGatewayAlarms959.0 = STRING:
avCmStatusMedGatewayAlarms960.0 = STRING:
avCmStatusMedGatewayAlarms961.0 = STRING:
avCmStatusMedGatewayAlarms962.0 = STRING:
avCmStatusMedGatewayAlarms963.0 = STRING:
avCmStatusMedGatewayAlarms964.0 = STRING:
avCmStatusMedGatewayAlarms965.0 = STRING:
avCmStatusMedGatewayAlarms966.0 = STRING:
avCmStatusMedGatewayAlarms967.0 = STRING:
avCmStatusMedGatewayAlarms968.0 = STRING:
avCmStatusMedGatewayAlarms969.0 = STRING:
avCmStatusMedGatewayAlarms970.0 = STRING:
avCmStatusMedGatewayAlarms971.0 = STRING:
avCmStatusMedGatewayAlarms972.0 = STRING:
avCmStatusMedGatewayAlarms973.0 = STRING:
avCmStatusMedGatewayAlarms974.0 = STRING:
avCmStatusMedGatewayAlarms975.0 = STRING:
avCmStatusMedGatewayAlarms976.0 = STRING:
avCmStatusMedGatewayAlarms977.0 = STRING:
avCmStatusMedGatewayAlarms978.0 = STRING:
avCmStatusMedGatewayAlarms979.0 = STRING:
avCmStatusMedGatewayAlarms980.0 = STRING:
avCmStatusMedGatewayAlarms981.0 = STRING:
avCmStatusMedGatewayAlarms982.0 = STRING:
avCmStatusMedGatewayAlarms983.0 = STRING:
avCmStatusMedGatewayAlarms984.0 = STRING:
avCmStatusMedGatewayAlarms985.0 = STRING:
avCmStatusMedGatewayAlarms986.0 = STRING:
avCmStatusMedGatewayAlarms987.0 = STRING:
avCmStatusMedGatewayAlarms988.0 = STRING:
avCmStatusMedGatewayAlarms989.0 = STRING:
avCmStatusMedGatewayAlarms990.0 = STRING:
avCmStatusMedGatewayAlarms991.0 = STRING:
avCmStatusMedGatewayAlarms992.0 = STRING:
avCmStatusMedGatewayAlarms993.0 = STRING:
avCmStatusMedGatewayAlarms994.0 = STRING:
avCmStatusMedGatewayAlarms995.0 = STRING:
avCmStatusMedGatewayAlarms996.0 = STRING:
avCmStatusMedGatewayAlarms997.0 = STRING:
avCmStatusMedGatewayAlarms998.0 = STRING:
avCmStatusMedGatewayAlarms999.0 = STRING:
