Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmDispSurvProcess
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmDispSurvProcess Group
|
enterprises.6889.2.73.8.1.50
|
Table
|
Description
The avCmDispSurvProcess MIB Group uses the display survivable-processor command to retrieve survivable-processor data.
Releases Supported
6.3.100 and later
Polling Type
Inventory
Polling Interval
Not more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmDispSurvProcessGroup
|
SAT
|
display survivable-processor
|
SURVIVABLE PROCESSORS
|
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmDispSurvProcessTable
|
.1
|
n/a
|
SEQUENCE OF avCmDispSurvProcessEntry
|
n/a
|
A Disp of the avCmDispSurvProcess entries
|
|
avCmDispSurvProcessEntry
|
.1.1
|
n/a
|
Integer32 (0..9999)
|
n/a
|
A avCmDispSurvProcess entry containing objects of the avCmDispSurvProcessinformation sent by the switch.
|
|
avCmDispSurvProcessNameIdx
|
.1.1.1
|
n/a
|
SnmpAdminString (SIZE (0..16))
|
n/a
|
An object that identifies each increment of data.
|
|
|
|||||
|
avCmDispSurvProcessNodeName
|
.1.1.2
|
R
|
SnmpAdminString (SIZE (0..16))
|
Name
|
An object that contains the name of the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessType
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..13))
|
Type
|
An object containing the name of the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessClusterId
|
.1.1.4
|
R
|
InavCmDispSurvProcessClusterId
|
Cluster ID/MID
|
An object containing the cluster id or MID of the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessActivesrvIP
|
.1.1.5
|
R
|
SnmpAdminString (SIZE (0..41))
|
ACTI Address
|
An object containing the survivable processor active IP address.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessAID
|
.1.1.6
|
R
|
Integer32 (0..999)
|
A Server ID
|
An object containing the survivable processor A server ID.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessAnodename
|
.1.1.7
|
R
|
SnmpAdminString (SIZE (0..16))
|
SERVER A V4 Node Name
|
An object containing the survivable processor SERVER A V4 Node Name.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessAIP
|
.1.1.8
|
R
|
SnmpAdminString (SIZE (0..41))
|
SERVER A V4 Address
|
An object containing the survivable processor SERVER A V4 IP Address.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessBID
|
.1.1.9
|
R
|
Integer32 (0..999)
|
B Server ID
|
An object containing the survivable processor B server ID.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessBnodename
|
.1.1.10
|
R
|
SnmpAdminString (SIZE (0..16))
|
SERVER B V4 Node Name
|
An object containing the survivable processor SERVER B V4 Node Name.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessBIP
|
.1.1.11
|
R
|
SnmpAdminString (SIZE (0..41))
|
SERVER B V4 Address
|
An object containing the survivable processor SERVER B V4 IP Address.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessSystemPref
|
.1.1.12
|
R
|
SnmpAdminString (SIZE (0..2))
|
System Preferred
|
An object containing whether System Preferred enabled for the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessPriorityscore
|
.1.1.13
|
R
|
Integer32 (0..100)
|
Priority Score
|
An object containing the Priority Score for the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessLocalPref
|
.1.1.14
|
R
|
SnmpAdminString (SIZE (0..2))
|
Local Preferred
|
An object containing whether Local Preferred enabledfor the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessLocalOnly
|
.1.1.15
|
R
|
SnmpAdminString (SIZE (0..2))
|
Local Only
|
An object containing whether Local Only enabled for the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessV6NodeName
|
.1.1.16
|
R
|
SnmpAdminString (SIZE (0..16))
|
V6 Node Name
|
An object containing the IPV6 Node Name for the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessV6IP
|
.1.1.17
|
R
|
SnmpAdminString (SIZE (0..41))
|
V6 Address
|
An object containing the IPV6 Address for the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessAV6NodeName
|
.1.1.18
|
R
|
SnmpAdminString (SIZE (0..2))
|
SERVER A V6 Node Name
|
An object containing the server A IPV6 Node Name for the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessAV6IP
|
.1.1.19
|
R
|
SnmpAdminString (SIZE (0..41))
|
SERVER B V6 Address
|
An object containing the server A IPV6 Address for the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessBV6NodeName
|
.1.1.20
|
R
|
SnmpAdminString (SIZE (0..16))
|
SERVER B V6 Node Name
|
SERVER B V6 Address for the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmDispSurvProcessBV6IP
|
.1.1.21
|
R
|
SnmpAdminString (SIZE (0..41))
|
SERVER B V6 Address
|
SERVER B V6 Address for the survivable processor.
|
|
SURVIVABLE PROCESSORS
|

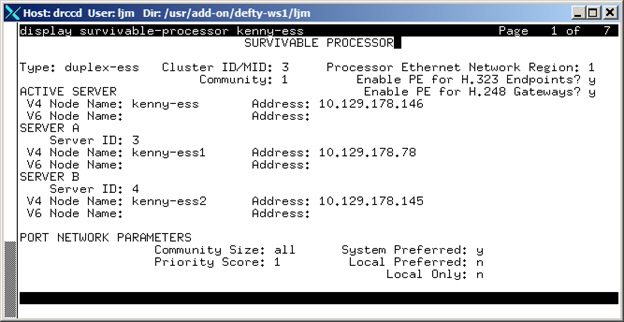

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmDispSurvProcess
266
avCmDispSurvProcessNodeName."kenny-ess" = STRING: kenny-ess
avCmDispSurvProcessType."kenny-ess" = STRING: duplex-ess
avCmDispSurvProcessClusterId."kenny-ess" = INTEGER: 3
avCmDispSurvProcessActivesrvIP."kenny-ess" = STRING: 10.129.178.146
avCmDispSurvProcessAID."kenny-ess" = INTEGER: 3
avCmDispSurvProcessAnodename."kenny-ess" = STRING: kenny-ess1
avCmDispSurvProcessAIP."kenny-ess" = STRING: 10.129.178.78
avCmDispSurvProcessBID."kenny-ess" = INTEGER: 4
avCmDispSurvProcessBnodename."kenny-ess" = STRING: kenny-ess2
avCmDispSurvProcessBIP."kenny-ess" = STRING: 10.129.178.145
avCmDispSurvProcessSystemPref."kenny-ess" = STRING: y
avCmDispSurvProcessPriorityscore."kenny-ess" = INTEGER: 1
avCmDispSurvProcessLocalPref."kenny-ess" = STRING: n
avCmDispSurvProcessLocalOnly."kenny-ess" = STRING: n
avCmDispSurvProcessV6NodeName."kenny-ess" = STRING:
avCmDispSurvProcessV6IP."kenny-ess" = STRING:
avCmDispSurvProcessAV6NodeName."kenny-ess" = STRING:
avCmDispSurvProcessAV6IP."kenny-ess" = STRING:
avCmDispSurvProcessBV6NodeName."kenny-ess" = STRING:
avCmDispSurvProcessBV6IP."kenny-ess" = STRING:
