avCmMeasIpVoStatHrData

Last Updated : Jul 13, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmMeasIVoStatHrData
enterprises.6889.2.73.8.1.67
Table

Description

The avCmMeasIpVoStatHrData MIB group displays the hourly data for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization

Polling Interval

No more than once an hour.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmMeasIpVoStatHrData
SAT
list measurements ip voice-stats hourly data
IP VOICE STATISTICS NETWORK REGION DATA REPORT

Reference Document

A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed. The default super user can run this command.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmMeasIpVoStatHrDataTable
.1
n/a
SEQUENCE OF AvCmMeasIpVoStatHrDataEntry
n/a
An object containing the avCmMeasIpVoStatHrData entries.
avCmMeasIpVoStatHrDataEntry
.1.1
n/a
AvCmMeasIpVoStatHrDataEntry
n/a
An object containing the avCmMeasIpVoStatHData entry with the information that the switch sent.
avCmMeasIpVoStatHrDataRegIdx
.1.1.1
n/a
Integer32 (1..2000)
n/a
An index in the network region.
avCmMeasIpVoStatHrDataHourIdx
.1.1.2
n/a
Integer32 (0..20300)
n/a
An index that contains the measurements of the data voice statistics.
avCmMeasIpVoStatHrDataIdx
.1.1.3
n/a
Integer32 (0..9999)
n/a
A unique index for the data voice statistics.
avCmMeasIpVoStatHrDataRegion
.1.1.4
R
Integer32 (0..2000)
List Command: Region
An object containing the network region.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataMeasHour
.1.1.5
R
Integer32 (0..2300)
Measurement Hour
An object containing the measurement hour.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataRunTime
.1.1.6
R
SnmpAdminString (SIZE (0..28))
Date
An object containing the date.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataBoardLoc
.1.1.7
R
SnmpAdminString (SIZE (0..6))
Board Loc
An object containing the board location.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataCallingNum
.1.1.8
R
SnmpAdminString (SIZE (0..17))
Calling Number
An object containing the calling number.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataCalledNum
.1.1.9
R
SnmpAdminString (SIZE (0..17))
Called Number
An object containing the called number.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataCodec
.1.1.10
R
SnmpAdminString (SIZE (0..8))
Codec
An object containing the codec used for the call.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataDataType
.1.1.11
R
SnmpAdminString (SIZE (0..7))
Data Type
An object containing the type of the call: ttyrel (TTY Relay), mod-pt (Modem pass-through), fax-pt (FAX pass-through), tty-pt (TTY pass-through), t38fax (T.38 FAX), faxrel (FAX relay), modrel (Modem relay)
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataPktSize
.1.1.12
R
SnmpAdminString (SIZE (0..999))
Pkt Size
An object containing the packet size of each data stream of the call in milliseconds.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataLostPerc
.1.1.13
R
SnmpAdminString (SIZE (0..4))
Loss%
An object containing the total packet loss during the call in percentage. The packet lost is calculated at 10-second intervals.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataPeakJitter
.1.1.14
R
Integer32 (0..9999)
Peak Jit
An object containing the peak jitter during the call in milliseconds.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataPeakDly
.1.1.15
R
Integer32 (0..9999)
Dly
An object containing the two-delay during the call in milliseconds.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataDataEC
.1.1.16
R
SnmpAdminString (SIZE (0..2))
EC
an object containing the status of echo cancellation.
IP VOICE STATISTICS NETWORK REGION DATA REPORT
avCmMeasIpVoStatHrDataFarIPAddr
.1.1.17
R
SnmpAdminString (SIZE (0..41))
Farend IPAddr
An object containing the far end IP address.
IP VOICE STATISTICS NETWORK REGION DATA REPORT

Sample output of forms

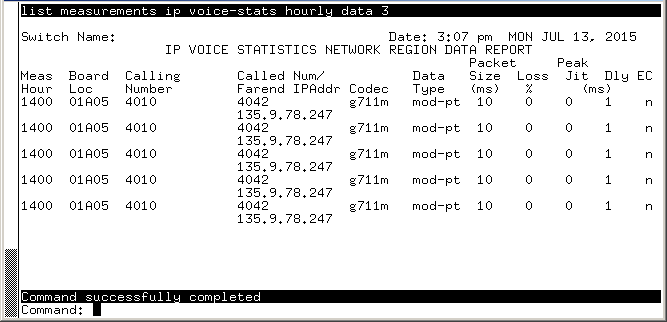

avCmMeasIpVoStatHrData - IP VOICE STATISTICS NETWORK REGION DATA REPORT

Sample Output of SNMP Walk command:

server1> snmpwalk -t 40 -v2c -Os -c public localhost -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatHrData
avCmMeasIpVoStatHrDataRegion.3.1400.1 = INTEGER: 3
avCmMeasIpVoStatHrDataRegion.3.1400.2 = INTEGER: 3
avCmMeasIpVoStatHrDataRegion.3.1400.3 = INTEGER: 3
avCmMeasIpVoStatHrDataRegion.3.1400.4 = INTEGER: 3
avCmMeasIpVoStatHrDataRegion.3.1400.5 = INTEGER: 3
avCmMeasIpVoStatHrDataRegion.12.1400.1 = INTEGER: 12
avCmMeasIpVoStatHrDataRegion.12.1400.2 = INTEGER: 12
avCmMeasIpVoStatHrDataRegion.12.1400.3 = INTEGER: 12
avCmMeasIpVoStatHrDataRegion.12.1400.4 = INTEGER: 12
avCmMeasIpVoStatHrDataRegion.12.1400.5 = INTEGER: 12
avCmMeasIpVoStatHrDataMeasHour.3.1400.1 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.3.1400.2 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.3.1400.3 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.3.1400.4 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.3.1400.5 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.12.1400.1 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.12.1400.2 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.12.1400.3 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.12.1400.4 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.12.1400.5 = INTEGER: 1400
avCmMeasIpVoStatHrDataRunTime.3.1400.1 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.3.1400.2 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.3.1400.3 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.3.1400.4 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.3.1400.5 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.12.1400.1 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.12.1400.2 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.12.1400.3 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.12.1400.4 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.12.1400.5 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataBoardLoc.3.1400.1 = STRING: 01A05
avCmMeasIpVoStatHrDataBoardLoc.3.1400.2 = STRING: 01A05
avCmMeasIpVoStatHrDataBoardLoc.3.1400.3 = STRING: 01A05
avCmMeasIpVoStatHrDataBoardLoc.3.1400.4 = STRING: 01A05
avCmMeasIpVoStatHrDataBoardLoc.3.1400.5 = STRING: 01A05
avCmMeasIpVoStatHrDataBoardLoc.12.1400.1 = STRING: 07A03
avCmMeasIpVoStatHrDataBoardLoc.12.1400.2 = STRING: 07A03
avCmMeasIpVoStatHrDataBoardLoc.12.1400.3 = STRING: 07A03
avCmMeasIpVoStatHrDataBoardLoc.12.1400.4 = STRING: 07A03
avCmMeasIpVoStatHrDataBoardLoc.12.1400.5 = STRING: 07A03
avCmMeasIpVoStatHrDataCallingNum.3.1400.1 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.3.1400.2 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.3.1400.3 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.3.1400.4 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.3.1400.5 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.12.1400.1 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.12.1400.2 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.12.1400.3 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.12.1400.4 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.12.1400.5 = STRING: 4010
avCmMeasIpVoStatHrDataCalledNum.3.1400.1 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.3.1400.2 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.3.1400.3 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.3.1400.4 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.3.1400.5 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.12.1400.1 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.12.1400.2 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.12.1400.3 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.12.1400.4 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.12.1400.5 = STRING: 4042
avCmMeasIpVoStatHrDataCodec.3.1400.1 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.3.1400.2 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.3.1400.3 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.3.1400.4 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.3.1400.5 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.12.1400.1 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.12.1400.2 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.12.1400.3 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.12.1400.4 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.12.1400.5 = STRING: g711m
avCmMeasIpVoStatHrDataDataType.3.1400.1 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.3.1400.2 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.3.1400.3 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.3.1400.4 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.3.1400.5 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.12.1400.1 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.12.1400.2 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.12.1400.3 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.12.1400.4 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.12.1400.5 = STRING: mod-pt
avCmMeasIpVoStatHrDataPktSize.3.1400.1 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.3.1400.2 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.3.1400.3 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.3.1400.4 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.3.1400.5 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.12.1400.1 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.12.1400.2 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.12.1400.3 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.12.1400.4 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.12.1400.5 = INTEGER: 10
avCmMeasIpVoStatHrDataLossPerc.3.1400.1 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.3.1400.2 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.3.1400.3 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.3.1400.4 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.3.1400.5 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.12.1400.1 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.12.1400.2 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.12.1400.3 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.12.1400.4 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.12.1400.5 = STRING: 0
avCmMeasIpVoStatHrDataPeakJitter.3.1400.1 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.3.1400.2 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.3.1400.3 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.3.1400.4 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.3.1400.5 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.12.1400.1 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.12.1400.2 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.12.1400.3 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.12.1400.4 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.12.1400.5 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakDly.3.1400.1 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.3.1400.2 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.3.1400.3 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.3.1400.4 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.3.1400.5 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.12.1400.1 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.12.1400.2 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.12.1400.3 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.12.1400.4 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.12.1400.5 = INTEGER: 1
avCmMeasIpVoStatHrDataEC.3.1400.1 = STRING: n
avCmMeasIpVoStatHrDataEC.3.1400.2 = STRING: n
avCmMeasIpVoStatHrDataEC.3.1400.3 = STRING: n
avCmMeasIpVoStatHrDataEC.3.1400.4 = STRING: n
avCmMeasIpVoStatHrDataEC.3.1400.5 = STRING: n
avCmMeasIpVoStatHrDataEC.12.1400.1 = STRING: n
avCmMeasIpVoStatHrDataEC.12.1400.2 = STRING: n
avCmMeasIpVoStatHrDataEC.12.1400.3 = STRING: n
avCmMeasIpVoStatHrDataEC.12.1400.4 = STRING: n
avCmMeasIpVoStatHrDataEC.12.1400.5 = STRING: n
avCmMeasIpVoStatHrDataFarIpAddr.3.1400.1 = STRING: 135.9.78.247
avCmMeasIpVoStatHrDataFarIpAddr.3.1400.2 = STRING: 135.9.78.247
avCmMeasIpVoStatHrDataFarIpAddr.3.1400.3 = STRING: 135.9.78.247
avCmMeasIpVoStatHrDataFarIpAddr.3.1400.4 = STRING: 135.9.78.247
avCmMeasIpVoStatHrDataFarIpAddr.3.1400.5 = STRING: 135.9.78.247
avCmMeasIpVoStatHrDataFarIpAddr.12.1400.1 = STRING: 135.9.78.205
avCmMeasIpVoStatHrDataFarIpAddr.12.1400.2 = STRING: 135.9.78.205
avCmMeasIpVoStatHrDataFarIpAddr.12.1400.3 = STRING: 135.9.78.205
avCmMeasIpVoStatHrDataFarIpAddr.12.1400.4 = STRING: 135.9.78.205
avCmMeasIpVoStatHrDataFarIpAddr.12.1400.5 = STRING: 135.9.78.205
Related links
AVAYA-AURA-CM-MIB
