avCmListTrunkRange

Last Updated : Jul 12, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmListTrunkRange
enterprises.6889.2.73.8.1.8
Scalar/Table

Description

The avCmListTrunkRange MIB group displays the output of the list trunk xxxx count xx command. This MIB Group should be used instead of the avCmListTrunk MIB Group on systems with over 100 trunks.

Releases Supported

6.3.100 and later

Polling Type

Inventory and Performance/Utilization

Polling Interval

No more than once a day or when stations are added.

Default Caching Interval

300 seconds

Timeout Interval

Initial Timeout should be set to 15 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmListTrunkRange
SAT
list trunk xxxxx count x
TRUNK GROUPS
SAT
display trunk xxxxx
TRUNK GROUPS

Reference Document

  1. A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
  2. A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

  1. No special permissions needed.
  2. No special permissions needed.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmListTrunkRangeStartGrp
.1
R/W
Integer32 (0..2000)
n/a
An object containing the starting trunk group.
(scalar)
avCmListTrunkRangeCount
.2
R/W
Integer32 (1..100)
n/a
An object containing the number of trunks to list.
(scalar)
avCmListTrunkRangeTable
.3
n/a
SEQUENCE OF avCmListStationRangeEntry
n/a
A list of the avCmListTrunkRange entries.
avCmListStationRangeEntry
.3.1
n/a
avCmListStationRangeEntry
n/a
An avCmListTrunkRange entry containing objects of the avCmListTrunkRange information sent by the switch.
avCmListTrunkRangeIdx
.3.1.1
n/a
Integer32 (0..2000)
n/a
An object that uniquely identifies each Server Alarm.
avCmListTrunkRangeGrpNumber
.3.1.2
R
Integer32 (0..2000)
List Command: Grp No
Display Command: Group Number
An object that uniquely identifies each Trunk Group.
TRUNK GROUPS
avCmListTrunkRangeTAC
.3.1.3
R
SnmpAdminString (SIZE (0..17))
TAC
An object that contains the Access Code for the Trunk Group.
TRUNK GROUPS
avCmListTrunkRangeGrpType
.3.1.4
R
SnmpAdminString (SIZE (0..8))
Type
An object containing the trunk group type.
TRUNK GROUPS
avCmListTrunkRangeGrpName
.3.1.5
R
SnmpAdminString (SIZE (0..28))
Name
An object containing the name assigned to the trunk.
TRUNK GROUPS
avCmListTrunkRangeGrpNoMem
.3.1.6
R
Integer32 (0..255)
No. Mem
An object containing the trunk group number of ports assigned.
TRUNK GROUPS
avCmListTrunkRangeSigGrp
.3.1.7
R
Integer32 (0..999)
Signaling Group
An object containing the signaling group of the sip trunk group.
TRUNK GROUPS
avCmListTrunkRangeGrpSigType
.3.1.8
R
SnmpAdminString (SIZE (0..8))
Trunk Signaling Type
An object containing the Trunk Signaling Type of the trunk group.
TRUNK GROUPS
avCmListTrunkRangeDirection
.3.1.9
R
SnmpAdminString (SIZE (0..9))
Direction
An object containing the Direction of the trunk group.
TRUNK GROUPS
avCmListTrunkRangeServiceType
.3.1.10
R
SnmpAdminString (SIZE (0..17))
List Command: Does not display this field.
Display Command: Service Type
An object that contains the Service Type of the Trunk Group.
TRUNK GROUP
avCmListTrunkRangeCommType
.3.1.11
R
SnmpAdminString (SIZE (0..6))
List Command: Does not display this field.
Display Command: Comm Type
An object that contains the Comm Type of the Trunk Group.
TRUNK GROUP
avCmListTrunkRangeTrunkType
.3.1.12
R
SnmpAdminString (SIZE (0..14))
List Command: Does not display this field.
Display Command: Trunk Type
An object that contains the Trunk Type of the Trunk Group.
TRUNK GROUP
avCmListTrunkRangeMemAssignMeth
.3.1.13
R
SnmpAdminString (SIZE (0..7))
List Command: Does not display this field.
Display Command: Member Assignment Method
An object that contains the Member Assignment Method of the Trunk Group.
TRUNK GROUP
avCmListTrunkRangeCarMedium
.3.1.14
R
SnmpAdminString (SIZE (0..8))
List Command: Does not display this field.
Display Command: Carrier Medium
An object that contains the Carrier Medium of the Trunk Group.
TRUNK GROUP

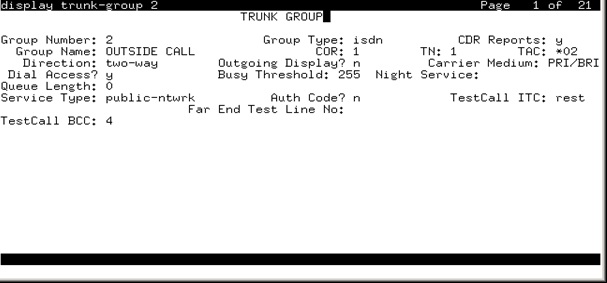

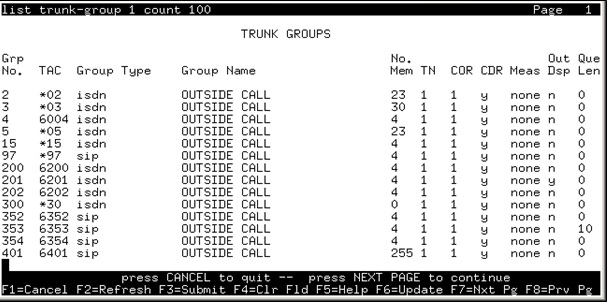

Sample output of forms

avCmListTrunkRange - Trunk GroupsavCmListTrunkRange - Trunk Group

Sample Output of SNMP Walk command:

server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListTrunkRange
avCmListTrunkRangeStartGrp.0 = INTEGER: 1
avCmListTrunkRangeCount.0 = INTEGER: 10
avCmListTrunkRangeGrpNumber.2 = INTEGER: 2
avCmListTrunkRangeGrpNumber.3 = INTEGER: 3
avCmListTrunkRangeGrpNumber.4 = INTEGER: 4
avCmListTrunkRangeGrpNumber.5 = INTEGER: 5
avCmListTrunkRangeGrpNumber.15 = INTEGER: 15
avCmListTrunkRangeGrpNumber.97 = INTEGER: 97
avCmListTrunkRangeGrpNumber.200 = INTEGER: 200
avCmListTrunkRangeGrpNumber.201 = INTEGER: 201
avCmListTrunkRangeGrpNumber.202 = INTEGER: 202
avCmListTrunkRangeGrpNumber.300 = INTEGER: 300
avCmListTrunkRangeTAC.2 = STRING: *02
avCmListTrunkRangeTAC.3 = STRING: *03
avCmListTrunkRangeTAC.4 = STRING: 6004
avCmListTrunkRangeTAC.5 = STRING: *05
avCmListTrunkRangeTAC.15 = STRING: *15
avCmListTrunkRangeTAC.97 = STRING: *97
avCmListTrunkRangeTAC.200 = STRING: 6200
avCmListTrunkRangeTAC.201 = STRING: 6201
avCmListTrunkRangeTAC.202 = STRING: 6202
avCmListTrunkRangeTAC.300 = STRING: *30
avCmListTrunkRangeGrpType.2 = STRING: isdn
avCmListTrunkRangeGrpType.3 = STRING: isdn
avCmListTrunkRangeGrpType.4 = STRING: isdn
avCmListTrunkRangeGrpType.5 = STRING: isdn
avCmListTrunkRangeGrpType.15 = STRING: isdn
avCmListTrunkRangeGrpType.97 = STRING: sip
avCmListTrunkRangeGrpType.200 = STRING: isdn
avCmListTrunkRangeGrpType.201 = STRING: isdn
avCmListTrunkRangeGrpType.202 = STRING: isdn
avCmListTrunkRangeGrpType.300 = STRING: isdn
avCmListTrunkRangeGrpName.2 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.3 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.4 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.5 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.15 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.97 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.200 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.201 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.202 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.300 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpNoMem.2 = INTEGER: 23
avCmListTrunkRangeGrpNoMem.3 = INTEGER: 30
avCmListTrunkRangeGrpNoMem.4 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.5 = INTEGER: 23
avCmListTrunkRangeGrpNoMem.15 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.97 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.200 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.201 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.202 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.300 = INTEGER: 0
avCmListTrunkRangeSigGrp.2 = INTEGER: 0
avCmListTrunkRangeSigGrp.3 = INTEGER: 0
avCmListTrunkRangeSigGrp.4 = INTEGER: 0
avCmListTrunkRangeSigGrp.5 = INTEGER: 0
avCmListTrunkRangeSigGrp.15 = INTEGER: 0
avCmListTrunkRangeSigGrp.97 = INTEGER: 97
avCmListTrunkRangeSigGrp.200 = INTEGER: 200
avCmListTrunkRangeSigGrp.201 = INTEGER: 201
avCmListTrunkRangeSigGrp.202 = INTEGER: 202
avCmListTrunkRangeSigGrp.300 = INTEGER: 0
avCmListTrunkRangeGrpSigType.2 = STRING:
avCmListTrunkRangeGrpSigType.3 = STRING:
avCmListTrunkRangeGrpSigType.4 = STRING:
avCmListTrunkRangeGrpSigType.5 = STRING:
avCmListTrunkRangeGrpSigType.15 = STRING:
avCmListTrunkRangeGrpSigType.97 = STRING:
avCmListTrunkRangeGrpSigType.200 = STRING:
avCmListTrunkRangeGrpSigType.201 = STRING:
avCmListTrunkRangeGrpSigType.202 = STRING:
avCmListTrunkRangeGrpSigType.300 = STRING:
avCmListTrunkRangeDirection.2 = STRING: two-way
avCmListTrunkRangeDirection.3 = STRING: two-way
avCmListTrunkRangeDirection.4 = STRING: two-way
avCmListTrunkRangeDirection.5 = STRING: two-way
avCmListTrunkRangeDirection.15 = STRING: two-way
avCmListTrunkRangeDirection.97 = STRING: two-way
avCmListTrunkRangeDirection.200 = STRING: two-way
avCmListTrunkRangeDirection.201 = STRING: two-way
avCmListTrunkRangeDirection.202 = STRING: two-way
avCmListTrunkRangeDirection.300 = STRING: two-way
avCmListTrunkRangeServiceType.2 = STRING: public-ntwrk
avCmListTrunkRangeServiceType.3 = STRING: tie
avCmListTrunkRangeServiceType.4 = STRING: tie
avCmListTrunkRangeServiceType.5 = STRING: tie
avCmListTrunkRangeServiceType.15 = STRING: tie
avCmListTrunkRangeServiceType.97 = STRING: tie
avCmListTrunkRangeServiceType.200 = STRING: tie
avCmListTrunkRangeServiceType.201 = STRING: tie
avCmListTrunkRangeServiceType.202 = STRING: tie
avCmListTrunkRangeServiceType.300 = STRING: tie
avCmListTrunkRangeCommType.2 = STRING: voice
avCmListTrunkRangeCommType.3 = STRING: voice
avCmListTrunkRangeCommType.4 = STRING: voice
avCmListTrunkRangeCommType.5 = STRING: voice
avCmListTrunkRangeCommType.15 = STRING: voice
avCmListTrunkRangeCommType.97 = STRING: voice
avCmListTrunkRangeCommType.200 = STRING: voice
avCmListTrunkRangeCommType.201 = STRING: voice
avCmListTrunkRangeCommType.202 = STRING: voice
avCmListTrunkRangeCommType.300 = STRING: voice
avCmListTrunkRangeTrunkType.2 = STRING: immed/immed
avCmListTrunkRangeTrunkType.3 = STRING: immed/immed
avCmListTrunkRangeTrunkType.4 = STRING: immed/immed
avCmListTrunkRangeTrunkType.5 = STRING: immed/immed
avCmListTrunkRangeTrunkType.15 = STRING: immed/immed
avCmListTrunkRangeTrunkType.97 = STRING: immed/immed
avCmListTrunkRangeTrunkType.200 = STRING: immed/immed
avCmListTrunkRangeTrunkType.201 = STRING: immed/immed
avCmListTrunkRangeTrunkType.202 = STRING: immed/immed
avCmListTrunkRangeTrunkType.300 = STRING: immed/immed
avCmListTrunkRangeMemAssignMeth.2 = STRING: manual
avCmListTrunkRangeMemAssignMeth.3 = STRING: manual
avCmListTrunkRangeMemAssignMeth.4 = STRING: manual
avCmListTrunkRangeMemAssignMeth.5 = STRING: manual
avCmListTrunkRangeMemAssignMeth.15 = STRING: manual
avCmListTrunkRangeMemAssignMeth.97 = STRING: auto
avCmListTrunkRangeMemAssignMeth.200 = STRING: auto
avCmListTrunkRangeMemAssignMeth.201 = STRING: auto
avCmListTrunkRangeMemAssignMeth.202 = STRING: auto
avCmListTrunkRangeMemAssignMeth.300 = STRING: manual
avCmListTrunkRangeCarMedium.2 = STRING: PRI/BRI
avCmListTrunkRangeCarMedium.3 = STRING: PRI/BRI
avCmListTrunkRangeCarMedium.4 = STRING: PRI/BRI
avCmListTrunkRangeCarMedium.5 = STRING: PRI/BRI
avCmListTrunkRangeCarMedium.15 = STRING: PRI/BRI
avCmListTrunkRangeCarMedium.97 = STRING: H.323
avCmListTrunkRangeCarMedium.200 = STRING: H.323
avCmListTrunkRangeCarMedium.201 = STRING: H.323
avCmListTrunkRangeCarMedium.202 = STRING: H.323
avCmListTrunkRangeCarMedium.300 = STRING: PRI/BRI
