Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmInitCauses
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmInitCauses Group
|
enterprises.6889.2.73.8.1.58
|
Table
|
Description
The avCmInitCauses MIB Group uses the display initcauses command to retrieve restart information.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
Once a minute.
Default Caching Interval
60 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmInitCauses Group
|
SAT
|
display initcauses
|
INITIALIZATION CAUSES
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmInitCausesTable
|
.1
|
n/a
|
SEQUENCE OF AvCmInitCausesEntry
|
n/a
|
A list of the avCmInitCauses entries.
|
|
avCmInitCausesEntry
|
.1.1
|
n/a
|
AvCmInitCausesEntry
|
n/a
|
A avCmInitCausesEntry entry containing objects of the avCmInitCauses information sent by the switch.
|
|
avCmInitCausesTimeIdx
|
.1.1.1
|
n/a
|
SnmpAdminString (SIZE (0..9))
|
n/a
|
An object that uniquely identifies each Increment of data.
|
|
avCmInitCausesIdx
|
.1.1.2
|
n/a
|
Integer32 (0..400)
|
n/a
|
An Integer32 object containing an index that numbers the alarm entry for the avCmInitCausesIdx. This object along with avCmInitCausesTimeIdx serves as the
|
|
avCmInitCausesTime
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0.13))
|
Time
|
An object containing the time of the event.
|
|
INITIALIZATION CAUSES
|
|||||
|
avCmInitCausesCause
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..25))
|
Cause
|
An object containing the cause of the event.
|
|
INITIALIZATION CAUSES
|
|||||
|
avCmInitCausesAction
|
.1.1.5
|
R
|
Integer32 (0..9)
|
Action
|
An object containing the reset level of the vent.
|
|
INITIALIZATION CAUSES
|
|||||
|
avCmInitCausesEscalated
|
.1.1.6
|
R
|
SnmpAdminString (SIZE (0..6))
|
Escalated
|
An object containing whether or not event escalated.
|
|
INITIALIZATION CAUSES
|
|||||
|
avCmInitCausesMode
|
.1.1.7
|
R
|
SnmpAdminString (SIZE (0..9))
|
Mode
|
An object containing the mode.
|
|
INITIALIZATION CAUSES
|

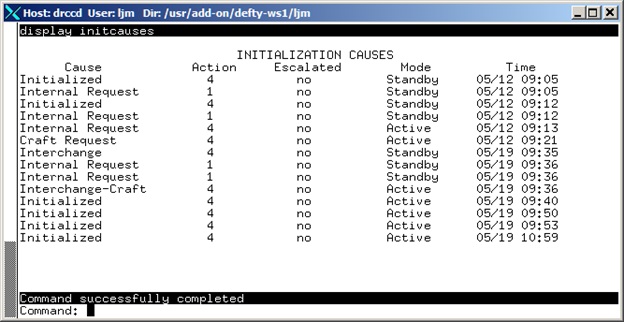

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmInitCauses
avCmInitCausesTime."05/12 09:05".1 = STRING: 05/12 09:05
avCmInitCausesTime."05/12 09:05".2 = STRING: 05/12 09:05
:
:
avCmInitCausesTime."05/19 10:59".1 = STRING: 05/19 10:59
avCmInitCausesCause."05/12 09:05".1 = STRING: Internal Request
avCmInitCausesCause."05/12 09:05".2 = STRING: Initialized
:
:
avCmInitCausesCause."05/19 10:59".1 = STRING: Initialized
avCmInitCausesAction."05/12 09:05".1 = INTEGER: 1
avCmInitCausesAction."05/12 09:05".2 = INTEGER: 4
:
:
avCmInitCausesAction."05/19 10:59".1 = INTEGER: 4
avCmInitCausesEscalated."05/12 09:05".1 = STRING: no
avCmInitCausesEscalated."05/12 09:05".2 = STRING: no
:
:
avCmInitCausesEscalated."05/19 10:59".1 = STRING: no
avCmInitCausesMode."05/12 09:05".1 = STRING: Standby
avCmInitCausesMode."05/12 09:05".2 = STRING: Standby
:
:
avCmInitCausesMode."05/19 10:59".1 = STRING: Active
