avCmMeasOccLstHr
In Communication Manager Release 8.0, occupancy OID has been deprecated and replaced by the following occupancy OID corresponding to the avCmMeasOccLstHr MIB.
|
MIB group name
|
New OID name
|
New OID
|
Type
|
|---|---|---|---|
|
avCmMeasOccLstHr
|
avCmMeasOccLstHrOcc
|
enterprises 6889.2.73.8.1.33.1.1.15
|
Table
|
Description
The avCmMeasOccLstHr MIB Group uses the list measurements occupancy last-hour command to retrieve the occupancy data from the last hour.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once every 6 minutes. However, no more than once an hour is recommended.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmMeasOccLstHr
|
SAT
|
list measurements occupancy last-hour
|

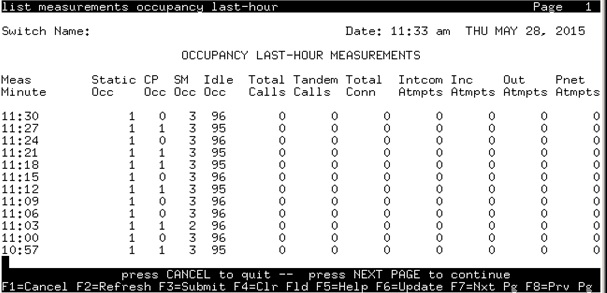

OCCUPANCY LAST-HOUR MEASUREMENTS
|
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmMeasLstHrTable
|
.1
|
n/a
|
SEQUENCE OF avCmMeasLstHrEntry
|
n/a
|
An object that contains a list of the avCmMeasOccLstHr entries
|
|
avCmMeasLstHrEntry
|
.1.1
|
n/a
|
avCmMeasLstHrEntry
|
n/a
|
A avCmMeasOccLstHr entry containing objects of the avCmMeasOccLstHr information sent by the switch.
|
|
avCmMeasLstHrIdx
|
.1.1.1
|
n/a
|
Integer32 (0..2300)
|
n/a
|
An object that uniquely identifies each Hour of data.
|
|
avCmMeasLstHrMeasMinute
|
.1.1.2
|
R
|
Integer32 (0..6)
|
Meas Hour
|
An object containing the minute the measurement was taken.
|
|
OCCUPANCY LAST-HOUR MEASUREMENTS
|
|||||
|
avCmMeasLstHrRunDate
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..27))
|
Date
|
An object containing the Date the command was executed.
|
|
OCCUPANCY LAST-HOUR MEASUREMENTS
|
|||||
|
avCmMeasLstHrStatOcc
|
.1.1.4
|
R
|
Integer32 (0..100)
|
OCCUPANCY
|
An object that contains the processor utilized by static processes.
|
|
OCCUPANCY LAST-HOUR MEASUREMENTS
|
|||||
|
avCmMeasLstHrTotCall
|
.1.1.8
|
R
|
Integer32 (0..100)
|
Total Calls
|
An object containing the total calls connected to the measurement hour.
|
|
OCCUPANCY LAST-HOUR MEASUREMENTS
|
|||||
|
avCmMeasLstHrTandCall
|
.1.1.9
|
R
|
Integer32 (0..100)
|
Tandem Calls
|
An object containing trunk-to-trunk calls connected for the measurement hour.
|
|
OCCUPANCY LAST-HOUR MEASUREMENTS
|
|||||
|
avCmMeasLstHrTotConn
|
.1.1.10
|
R
|
Integer32 (0..100)
|
Total Conn
|
An object containing the total calls connected for the measurement hour.
|
|
OCCUPANCY LAST-HOUR MEASUREMENTS
|
|||||
|
avCmMeasLstHrIntcomAtt
|
.1.1.11
|
R
|
Integer32 (0..100)
|
Intcom Atmpts
|
An object containing the number of extension-to-extension calls on the same switch and partially completed calls for the measurement hour.
|
|
OCCUPANCY LAST-HOUR MEASUREMENTS
|
|||||
|
avCmMeasLstHrIncAtt
|
.1.1.12
|
R
|
Integer32 (0..100)
|
Inc Atmpts
|
An object containing the number of incoming trunk seizures from public network facilities.
|
|
OCCUPANCY LAST-HOUR MEASUREMENTS
|
|||||
|
avCmMeasLstHrOutAtt
|
.1.1.13
|
R
|
Integer32 (0..100)
|
Out Atmpts
|
An object containing the number of outgoing trunk seizures from public network facilities.
|
|
OCCUPANCY LAST-HOUR MEASUREMENTS
|
|||||
|
avCmMeasOccLstHrPnetAtt
|
.1.1.14
|
R
|
Integer32 (0..100)
|
Pnet Atmpts
|
An object containing the number of trunk seizures from public network facilities.
|
|
OCCUPANCY LAST-HOUR MEASUREMENTS
|
Sample output of forms
Sample Output of SNMP Walk command:
snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmMeasOccLstHr
avCmMeasOccLstHrMeasMinute.1036 = STRING: 10:36
avCmMeasOccLstHrMeasMinute.1039 = STRING: 10:39
:
:
avCmMeasOccLstHrMeasMinute.1133 = STRING: 11:33
avCmMeasOccLstHrRunDate.1036 = STRING: 11:34 am THU MAY 28, 2015
avCmMeasOccLstHrRunDate.1039 = STRING: 11:34 am THU MAY 28, 2015
:
:
avCmMeasOccLstHrRunDate.1133 = STRING: 11:34 am THU MAY 28, 2015
avCmMeasOccLstHrStatOcc.1036 = INTEGER: 1
avCmMeasOccLstHrStatOcc.1039 = INTEGER: 1
:
:
avCmMeasOccLstHrStatOcc.1133 = INTEGER: 1
avCmMeasOccLstHrCPOcc.1036 = INTEGER: 1
avCmMeasOccLstHrCPOcc.1039 = INTEGER: 1
:
:
avCmMeasOccLstHrCPOcc.1133 = INTEGER: 1
avCmMeasOccLstHrSMOcc.1036 = INTEGER: 3
avCmMeasOccLstHrSMOcc.1039 = INTEGER: 3
:
:
avCmMeasOccLstHrSMOcc.1133 = INTEGER: 3
avCmMeasOccLstHrIdleOcc.1036 = INTEGER: 95
avCmMeasOccLstHrIdleOcc.1039 = INTEGER: 95
:
:
avCmMeasOccLstHrIdleOcc.1133 = INTEGER: 95
avCmMeasOccLstHrTotCall.1036 = INTEGER: 0
avCmMeasOccLstHrTotCall.1039 = INTEGER: 0
:
:
avCmMeasOccLstHrTotCall.1133 = INTEGER: 0
avCmMeasOccLstHrTandCall.1036 = INTEGER: 0
avCmMeasOccLstHrTandCall.1039 = INTEGER: 0
:
:
avCmMeasOccLstHrTandCall.1133 = INTEGER: 0
avCmMeasOccLstHrTotConn.1036 = INTEGER: 0
avCmMeasOccLstHrTotConn.1039 = INTEGER: 0
:
:
avCmMeasOccLstHrTotConn.1133 = INTEGER: 0
avCmMeasOccLstHrIntcomAtt.1036 = INTEGER: 0
avCmMeasOccLstHrIntcomAtt.1039 = INTEGER: 0
:
:
avCmMeasOccLstHrIntcomAtt.1133 = INTEGER: 0
avCmMeasOccLstHrIncAtt.1036 = INTEGER: 0
avCmMeasOccLstHrIncAtt.1039 = INTEGER: 0
:
:
avCmMeasOccLstHrIncAtt.1133 = INTEGER: 0
avCmMeasOccLstHrOutAtt.1036 = INTEGER: 0
avCmMeasOccLstHrOutAtt.1039 = INTEGER: 0
:
:
avCmMeasOccLstHrOutAtt.1133 = INTEGER: 0
avCmMeasOccLstHrPnetAtt.1036 = INTEGER: 0
avCmMeasOccLstHrPnetAtt.1039 = INTEGER: 0
:
:
avCmMeasOccLstHrPnetAtt.1133 = INTEGER: 0
