avCmMeasIpVoStatSumPkLosLstHr

Last Updated : Jul 13, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmMeasIVoStatSumPkLosYest
enterprises.6889.2.73.8.1.71
Table

Description

The avCmMeasIpVoStatSumPkLosLstHr MIB group displays the packet loss recorded during calls in the previous hour for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization

Polling Interval

No more than once an hour.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmMeasIpVoStatSumPkLosLstHr
SAT
list measurements ip voice-stats pktloss last-hour
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT

Reference Document

A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed. The default super user can run this command.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmMeasIpVoStatSumPkLosLstHrTable
..1
n/a
SEQUENCE OF avCmMeasIpVoStatSumPkLosLstHrEntry
n/a
An object containing the avCmMeasIpVoStatSumPkLosLstHr entries.
avCmMeasIpVoStatSumPkLosLstHrEntry
..1.1
n/a
avCmMeasIpVoStatSumPkLosLstHrEntry
n/a
An object containing the avCmMeasIpVoStatSumPkLosLstHr entry with the information that the switch sent.
avCmMeasIpVoStatSumPkLosLstHrRegIdx
..1.1.1
n/a
Integer32 (1..2000)
n/a
An index in the network region.
avCmMeasIpVoStatSumPkLosLstHrHourIdx
..1.1.2
n/a
Integer32 (1..2300)
n/a
An index containing the measurements of the PktLoss voice statistics.
avCmMeasIpVoStatSumPkLosLstHrIdx
..1.1.3
n/a
Integer32 (1..9999)
n/a
An index containing the measurements of the pktloss voice statistics.
avCmMeasIpVoStatSumPkLosLstHrRegion
..1.1.4
R
Integer32 (0..2000)
List Command: Region
An object that containing the network region.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrMeasHour
.1.1.5
Integer32 (0..2300)
Measurement Hour
An object containing the hour.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrRunTime
.1.1.6
R
SnmpAdminString (SIZE (0..28))
Date
An object containing the date.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrBoardLoc
..1.1.7
SnmpAdminString (SIZE (0..6))
Board Loc
An object containing the board location.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrCallingNum
..1.1.8
SnmpAdminString (SIZE (0..17))
Calling Number
An object containing the calling number.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrCalledNum
..1.1.9
R
SnmpAdminString (SIZE (0..17))
Called Number
An object containing the called number.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrDstReg
..1.1.10
R
Integer32 (0..9999)
Dst Reg
An object containing the destination region.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrCodec
..1.1.11
R
SnmpAdminString (SIZE (0..8))
Codec
An object containing the codec used for the call.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrTimeCall
..1.1.12
R
SnmpAdminString (SIZE (0..5))
Time of Call
An object containing the timestamp when the threshold was exceeded. The timestamp is displayed in the MMSS (minutes seconds) format.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrUDPPort
..1.1.13
SnmpAdminString (SIZE (0..6))
UDP Port
An object containing the port used by the media processor for the call.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrPktSize
..1.1.14
R
Integer32 (0..999)
Pkt Size
An object containing the packet size of each data stream in milliseconds.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrTotnumLosPkts
..1.1.15
R
Integer32 (0..9999)
Total # lost Pkts
An object containing the total packets lost during a call.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrPktLossPerc
..1.1.16
SnmpAdminString (SIZE (0..3))
Packet Loss
An object containing the peak packekt loss for a call. The packet loss is measured at 10-second intervals.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrSilSup
..1.1.17
R
SnmpAdminString (SIZE (0..2))
Sil Sup
An object containing the status of silence suppression during a call.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
avCmMeasIpVoStatSumPkLosLstHrFEAddr
..1.1.18
R
SnmpAdminString (SIZE (0..41))
FEAddr
An object containing the far-end IP address.
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT

Sample output of forms

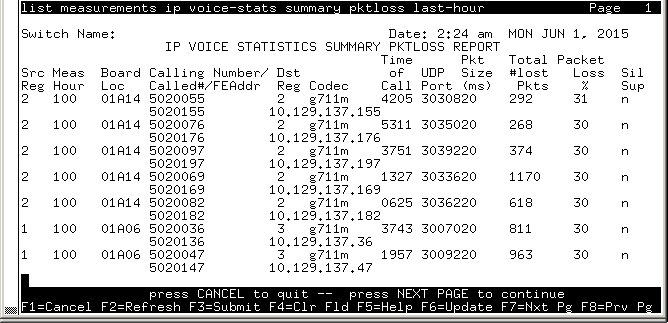

avCmMeasIpVoStatSumPkLosLstHr - IP VOICE STATISTICS SUMMARY PKTLOSS REPORT

Sample Output of SNMP Walk command:

server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatSumPkLosLstHr
avCmMeasIpVoStatSumPkLosLstHrRegion.1.100.1 = INTEGER: 1
avCmMeasIpVoStatSumPkLosLstHrRegion.1.100.2 = INTEGER: 1
:
:
avCmMeasIpVoStatSumPkLosLstHrRegion.2.100.5 = INTEGER: 2
avCmMeasIpVoStatSumPkLosLstHrMeasHour.1.100.1 = INTEGER: 100
avCmMeasIpVoStatSumPkLosLstHrMeasHour.1.100.2 = INTEGER: 100
:
:
avCmMeasIpVoStatSumPkLosLstHrMeasHour.2.100.5 = INTEGER: 100
avCmMeasIpVoStatSumPkLosLstHrRunTime.1.100.1 = STRING: 2:21 am MON JUN 1, 2015
avCmMeasIpVoStatSumPkLosLstHrRunTime.1.100.2 = STRING: 2:21 am MON JUN 1, 2015
:
:
avCmMeasIpVoStatSumPkLosLstHrRunTime.2.100.5 = STRING: 2:21 am MON JUN 1, 2015
avCmMeasIpVoStatSumPkLosLstHrBoardLoc.1.100.1 = STRING: 01A06
avCmMeasIpVoStatSumPkLosLstHrBoardLoc.1.100.2 = STRING: 01A06
:
:
avCmMeasIpVoStatSumPkLosLstHrBoardLoc.2.100.5 = STRING: 01A14
avCmMeasIpVoStatSumPkLosLstHrCallingNum.1.100.1 = STRING: 5020036
avCmMeasIpVoStatSumPkLosLstHrCallingNum.1.100.2 = STRING: 5020047
:
:
avCmMeasIpVoStatSumPkLosLstHrCallingNum.2.100.5 = STRING: 5020082
avCmMeasIpVoStatSumPkLosLstHrCalledNum.1.100.1 = STRING: 5020136
avCmMeasIpVoStatSumPkLosLstHrCalledNum.1.100.2 = STRING: 5020147
:
:
avCmMeasIpVoStatSumPkLosLstHrCalledNum.2.100.5 = STRING: 5020182
avCmMeasIpVoStatSumPkLosLstHrDstReg.1.100.1 = INTEGER: 3
avCmMeasIpVoStatSumPkLosLstHrDstReg.1.100.2 = INTEGER: 3
:
:
avCmMeasIpVoStatSumPkLosLstHrDstReg.2.100.5 = INTEGER: 2
avCmMeasIpVoStatSumPkLosLstHrCodec.1.100.1 = STRING: g711m
avCmMeasIpVoStatSumPkLosLstHrCodec.1.100.2 = STRING: g711m
:
:
avCmMeasIpVoStatSumPkLosLstHrCodec.2.100.5 = STRING: g711m
avCmMeasIpVoStatSumPkLosLstHrTimeCall.1.100.1 = STRING: 3743
avCmMeasIpVoStatSumPkLosLstHrTimeCall.1.100.2 = STRING: 1957
:
:
avCmMeasIpVoStatSumPkLosLstHrTimeCall.2.100.5 = STRING: 0625
avCmMeasIpVoStatSumPkLosLstHrUDPPort.1.100.1 = STRING: 30070
avCmMeasIpVoStatSumPkLosLstHrUDPPort.1.100.2 = STRING: 30092
:
:
avCmMeasIpVoStatSumPkLosLstHrUDPPort.2.100.5 = STRING: 30362
avCmMeasIpVoStatSumPkLosLstHrPktSize.1.100.1 = INTEGER: 20
avCmMeasIpVoStatSumPkLosLstHrPktSize.1.100.2 = INTEGER: 20
:
:
avCmMeasIpVoStatSumPkLosLstHrPktSize.2.100.5 = INTEGER: 20
avCmMeasIpVoStatSumPkLosLstHrTotnumLosPkts.1.100.1 = INTEGER: 811
369
avCmMeasIpVoStatSumPkLosLstHrTotnumLosPkts.1.100.2 = INTEGER: 963
:
:
avCmMeasIpVoStatSumPkLosLstHrTotnumLosPkts.2.100.5 = INTEGER: 618
avCmMeasIpVoStatSumPkLosLstHrPktLossPerc.1.100.1 = STRING: 30
avCmMeasIpVoStatSumPkLosLstHrPktLossPerc.1.100.2 = STRING: 30
:
:
avCmMeasIpVoStatSumPkLosLstHrPktLossPerc.2.100.5 = STRING: 30
avCmMeasIpVoStatSumPkLosLstHrSilSup.1.100.1 = STRING: n
avCmMeasIpVoStatSumPkLosLstHrSilSup.1.100.2 = STRING: n
:
:
avCmMeasIpVoStatSumPkLosLstHrSilSup.2.100.5 = STRING: n
avCmMeasIpVoStatSumPkLosLstHrFEAddr.1.100.1 = STRING: 10.129.137.36
avCmMeasIpVoStatSumPkLosLstHrFEAddr.1.100.2 = STRING: 10.129.137.47
:
:
avCmMeasIpVoStatSumPkLosLstHrFEAddr.2.100.5 = STRING: 10.129.137.182
