avCmMeasAnnAllLstHr

Last Updated : Jul 13, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmMeasAnnAllLstHr
enterprises.6889.2.73.8.1.80
Table

Description

The avCmMeasAnnAllLstHr MIB group displays all announcements in the previous hour.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization

Polling Interval

No more than once an hour. The date is updated only at the beginning of each hour.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmMeasAnnAllLstHr
SAT
list measurements announcement all last-hour
VOICE ANNOUNCEMENTS MEASUREMENTS

Reference Document

A detailed description of the command and form can be found in document referenced by Administering Avaya Aura® Communication Manager. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmMeasAnnAllLstHrTable
.1
n/a
SEQUENCE OF avCmMeasAnnAllLstHrEntry
n/a
An object containing the avCmMeasAnnAllLstHr entries.
avCmMeasAnnAllLstHrEntry
.1.1
n/a
avCmMeasAnnAllLstHrEntry
n/a
An object containing the avCmMeasAnnAllLstHrentry with the information that the switch sent.
avCmMeasAnnAllLstHrIdx
.1.1.1
n/a
Integer32 (0..17))
n/a
An object that uniquely identifies all data increments.
avCmMeasAnnAllLstHrExtension
.1.1.2
n/a
Integer32 (0..17))
Extension
An index containing the announcement extension.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrRunDate
.1.1.3
R
Integer32(0..28))
Date
An object containing the date when the command was executed.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrName
.1.1.4
R
Integer32(0..25))
Name
An object containing the announcement name.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrMeasHou
.1.1.5
R
Integer32(0..9999))
Measurement Hour
An object that containing the measurement hour.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrPlayRequests
.1.1.6
R
Integer32(0..9999))
Play Reqts
An object containing the number of play requests for the announcement.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrCallsQueued
.1.1.7
R
Integer32 (0..9999))
Calls Que
An object containing the number of calls in queue to be assigned a port.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrASP
.1.1.8
R
Integer32 (0..9999))
ASP
An object containing the average time calls waited for the announcement to be played in seconds. Calls abandoned in the queue are not included.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrPSP
.1.1.9
R
Integer32 (0..9999))
PSP
An object containing the peak speed to play an announcement.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrQueueDrops
1.1.10
R
Integer32 (0..9999))
Queue Drops
An object containing the number of calls in the queue that were disconnected. Calls abandoned by the caller and aborted by VOA (VDN of origin Announcements) are included. Calls in the queue answered by an agent are not included.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrMportPlays
1.1.11
R
Integer32 (0..9999))
Mport Plays
An object containing the number of times an announcement is played simultaneously by multiple ports.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrMxPorts
1.1.12
R
Integer32(0..99))
Mx Pt
An object containing the peak numbers of ports used for announcements in a specific period.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllLstHrMaxCallers
1.1.13
R
Integer32 (0..999))
Max Cls
An object containing the peak number callers simultaneously connected to a port for an announcement.
VOICE ANNOUNCEMENTS MEASUREMENTS

Sample output of forms

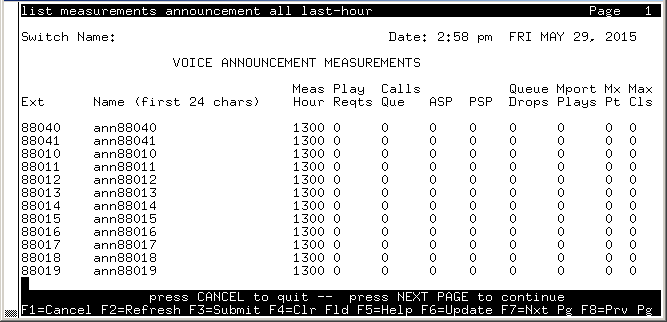

avCmMeasAnnAllLstHr - VOICE ANNOUNCEMENT MEASUREMENTS

Sample Output of SNMP Walk command:

server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmMeasAnnAllLstHr
avCmMeasAnnAllLstHrExtension."88010" = STRING: 88010
avCmMeasAnnAllLstHrExtension."88011" = STRING: 88011
:
:
avCmMeasAnnAllLstHrExtension."88041" = STRING: 88041
avCmMeasAnnAllLstHrRunDate."88010" = STRING: 3:00 pm FRI MAY 29, 2015
avCmMeasAnnAllLstHrRunDate."88011" = STRING: 3:00 pm FRI MAY 29, 2015
:
:
avCmMeasAnnAllLstHrRunDate."88041" = STRING: 3:00 pm FRI MAY 29, 2015
avCmMeasAnnAllLstHrName."88010" = STRING: ann88010
avCmMeasAnnAllLstHrName."88011" = STRING: ann88011
:
:
avCmMeasAnnAllLstHrName."88041" = STRING: ann88041
avCmMeasAnnAllLstHrMeasHour."88010" = INTEGER: 1400
avCmMeasAnnAllLstHrMeasHour."88011" = INTEGER: 1400
:
:
avCmMeasAnnAllLstHrMeasHour."88041" = INTEGER: 1400
avCmMeasAnnAllLstHrPlayRequests."88010" = INTEGER: 0
avCmMeasAnnAllLstHrPlayRequests."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrPlayRequests."88041" = INTEGER: 0
avCmMeasAnnAllLstHrCallsQueued."88010" = INTEGER: 0
avCmMeasAnnAllLstHrCallsQueued."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrCallsQueued."88041" = INTEGER: 0
avCmMeasAnnAllLstHrASP."88010" = INTEGER: 0
avCmMeasAnnAllLstHrASP."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrASP."88041" = INTEGER: 0
avCmMeasAnnAllLstHrPSP."88010" = INTEGER: 0
avCmMeasAnnAllLstHrPSP."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrPSP."88041" = INTEGER: 0
avCmMeasAnnAllLstHrQueueDrops."88010" = INTEGER: 0
avCmMeasAnnAllLstHrQueueDrops."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrQueueDrops."88041" = INTEGER: 0
avCmMeasAnnAllLstHrMportPlays."88010" = INTEGER: 0
avCmMeasAnnAllLstHrMportPlays."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrMportPlays."88041" = INTEGER: 0
avCmMeasAnnAllLstHrMxPorts."88010" = INTEGER: 0
avCmMeasAnnAllLstHrMxPorts."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrMxPorts."88041" = INTEGER: 0
avCmMeasAnnAllLstHrMaxCallers."88010" = INTEGER: 0
avCmMeasAnnAllLstHrMaxCallers."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrMaxCallers."88041" = INTEGER: 0
