avCmErrors

Last Updated : Jul 12, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmErrors
enterprises.6889.2.73.8.1.6
Table

Description

The avCmErrors MIB group displays the output of CMs error log.

Releases Supported

6.3.100 and later

Polling Type

Fault

Polling Interval

No more than every 1 hour.

Default Caching Interval

300 seconds

Timeout Interval

Initial Timeout should be set to 15 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmErrors
SAT
display errors
ERROR REPORT

Reference Document

A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmErrorsTable
.1
n/a
n/a
n/a
a list of the avCmErrors entries.
avCmErrorsEntry
.1.1
n/a
n/a
n/a
An avCmErrorsentry containing objects of the avCmErrors information sent by the switch.
avCmErrorsPortldx
.1.1.1
n/a
SnmpAdminString (SIZE (0..10))
n/a
An object that uniquely identifies a port based on its location in the system. The syntax for the Port Number is as follows: cabinet (01-64): carrier (A-E): slot (01-20): port (01-64).
avCmErrorsMtceNameIdx
.1.1.2
n/a
SnmpAdminString (SIZE (0..9))
n/a
An object containing an index that uniquely identifies a Maintenance Object Name.
avCmErrorsIndex
.1.1.3
n/a
Integer32 (0..6500)
n/a
An object containing an index that numbers the alarm entry for the avCmErrorsPortIdx. This object along with avCmErrorsPortIdx serves as the instance identifier for avCmErrorsEntry.
avCmErrorsPort
.1.1.4
R
SnmpAdminString (SIZE (0..10))
Port
An object that uniquely identifies a port based on its location in the system. The syntax for the Port Number is as follows: cabinet (01-64): carrier (A-E): slot (01-20): port (01-64).
ERROR REPORT
avCmErrorsMtceName
.1.1.5
R
SnmpAdminString (SIZE (0..9))
Mtce Name
An object that contains the Maintenance Object Name.
ERROR REPORT
avCmErrorsAltName
.1.1.6
R
SnmpAdminString (SIZE (0..14))
Alt Name
An object that contains the the alternate name of the alarmed object. Alternate names can consist of extension numbers, trunk group numbers or other identifying data.
ERROR REPORT
avCmErrorsErrType
.1.1.7
R
SnmpAdminString (SIZE (0..8))
Err Type
An object that contains the specific error type in numeric code used to determine the type of error.
ERROR REPORT
avCmErrorsAuxData
.1.1.8
R
SnmpAdminString (SIZE (0..6))
Aux Data
An object that contains the numeric auxiliary code used with the errType to troubleshoot a problem.
ERROR REPORT
avCmErrorsFirstLastOccurrence
.1.1.9
R
SnmpAdminString (SIZE (0..37))
First / Last Occurrence
An object that contains the mon/day/hour: min the alarm first last occurred.
ERROR REPORT
avCmErrorsErrCnt
.1.1.10
R
SnmpAdminString (SIZE (0..4))
err Cnt
An object that contains a numeric count of the occurrence of error.
ERROR REPORT
avCmErrorsErrRt
.1.1.11
R
SnmpAdminString (SIZE (0..4))
Err Rt
An object that contains the error rate occurrences of the error hour.
ERROR REPORT
avCmErrorsRtHr
.1.1.12
R
SnmpAdminString (SIZE (0..4))
Rt Hr
A DisplayString Object containing the error rate per hour.
ERROR REPORT
avCmErrorsAlSt
.1.1.13
R
SnmpAdminString (SIZE (0..2))
Alm St
An object that contains the alarm state of the error.
ERROR REPORT
avCmErrorsAc
.1.1.14
R
SnmpAdminString (SIZE (0..2))
Ac
An object that contains the Maintenance Object active state.
ERROR REPORT

Sample output of forms

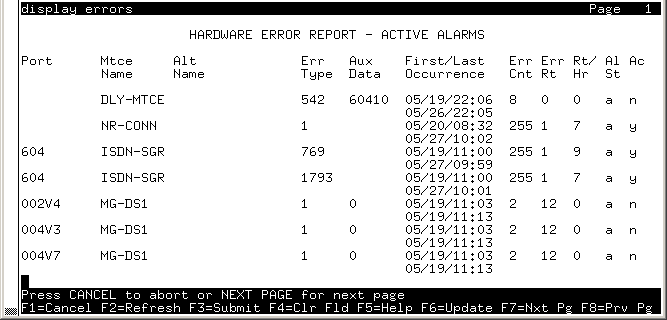

avCmErrors - Hardware Error Report

Sample Output of SNMP Walk command:

server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmErrors
avCmErrorsPort."604"."ISDN-SGR".1 = STRING: 604
avCmErrorsPort."604"."ISDN-SGR".2 = STRING: 604
:
:
avCmErrorsPort."000000000"."SP-REG-M".1 = STRING: 000000000
avCmErrorsMtceName."604"."ISDN-SGR".1 = STRING: ISDN-SGR
:
:
avCmErrorsMtceName."000000000"."SP-REG-M".1 = STRING: SP-REG-M
avCmErrorsAltName."604"."ISDN-SGR".1 = STRING:
avCmErrorsAltName."604"."ISDN-SGR".2 = STRING:
:
:
avCmErrorsAltName."000000000"."SP-REG-M".1 = STRING:
avCmErrorsErrType."604"."ISDN-SGR".1 = STRING: 1793
avCmErrorsErrType."604"."ISDN-SGR".2 = STRING: 769
:
:
avCmErrorsErrType."000000000"."SP-REG-M".1 = STRING: 257
avCmErrorsAuxData."604"."ISDN-SGR".1 = STRING:
avCmErrorsAuxData."604"."ISDN-SGR".2 = STRING:
:
:
avCmErrorsAuxData."000000000"."SP-REG-M".1 = STRING: 2
avCmErrorsFirstLastOccurrence."604"."ISDN-SGR".1 = STRING: First: 05/19/11:00 Last: 05/27/10:01
avCmErrorsFirstLastOccurrence."604"."ISDN-SGR".2 = STRING: First: 05/19/11:00 Last: 05/27/09:59
27
:
:
avCmErrorsFirstLastOccurrence."000000000"."SP-REG-M".1 = STRING: First: 05/19/11:09 Last: 05/19/11:09
avCmErrorsErrCnt."604"."ISDN-SGR".1 = STRING: 255
avCmErrorsErrCnt."604"."ISDN-SGR".2 = STRING: 255
:
:
avCmErrorsErrCnt."000000000"."SP-REG-M".1 = STRING: 1
avCmErrorsErrRt."604"."ISDN-SGR".1 = STRING: 1
avCmErrorsErrRt."604"."ISDN-SGR".2 = STRING: 1
:
:
avCmErrorsErrRt."000000000"."SP-REG-M".1 = STRING: 0
avCmErrorsRtHr."604"."ISDN-SGR".1 = STRING: 7
avCmErrorsRtHr."604"."ISDN-SGR".2 = STRING: 9
:
:
avCmErrorsRtHr."000000000"."SP-REG-M".1 = STRING: 0
avCmErrorsAlSt."604"."ISDN-SGR".1 = STRING: a
avCmErrorsAlSt."604"."ISDN-SGR".2 = STRING: a
:
:
avCmErrorsAlSt."000000000"."SP-REG-M".1 = STRING: a
avCmErrorsAc."604"."ISDN-SGR".1 = STRING: y
avCmErrorsAc."604"."ISDN-SGR".2 = STRING: y
:
:
avCmErrorsAc."000000000"."SP-REG-M".1 = STRING: y
