Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmCapacityUsage
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmCapacityUsage
|
enterprises 6889.2.73.8.1.21
|
Scalar
|
Description

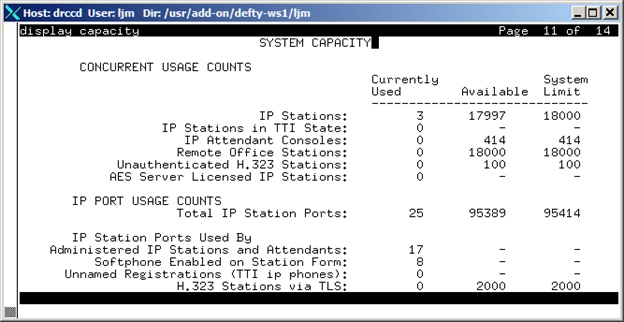

The avCmCapacityUsage MIB Group uses the display capacitycommand to retrieve the USAGE capacity information under the CONCURRENT USAGE COUNTS section of the SYSTEM CAPACITY form.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
No more than once every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmCapacityUsage
|
SAT
|
display capacity
|
SYSTEM CAPACITY
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmCapacityUsageIPStatUsed
|
.1
|
R
|
Integer32 (0..99999)
|
IP Stations
|
An object that contains the number of IP Stations.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityUsageIPStatAvail
|
.2
|
R
|
Integer32 (0..99999)
|
IP Stations
|
An object that contains the number of available IP Stations.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksDS1CirPksSysLim
|
.3
|
R
|
Integer32 (0..99999)
|
IP Stations
|
An object that contains the system limit of IP Stations.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksDS1EchoCanUsed
|
.4
|
R
|
Integer32 (0..99999)
|
IP Attendant Consoles
|
An object that contains the number of used IP Attendant Consoles.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksDS1EchoCanUsed
|
.5
|
R
|
Integer32 (0..99999)
|
IP Attendant Consoles
|
An object that contains the number of available IP Attendant Consoles.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksDS1EchoCanUsed
|
.6
|
R
|
Integer32 (0..99999)
|
IP Attendant Consoles
|
An object that contains the system limit of IP Attendant Consoles.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksIchtIsdnSipTrkUsed
|
.7
|
R
|
Integer32 (0..99999)
|
Remote Office Stations
|
An object that contains the number of used Remote Office Stations.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksIchtIsdnSipTrkAvail
|
.8
|
R
|
Integer32 (0..99999)
|
Remote Office Stations
|
An object that contains the number of available Remote Office Stations.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksIchtIsdnSipTrkSysLim
|
.9
|
R
|
Integer32 (0..99999)
|
Remote Office Stations
|
An object that contains the system limit of Remote Office Stations.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksIsdnCbcTrkUsed
|
.10
|
R
|
Integer32 (0..99999)
|
Remote Office Stations
|
An object that contains the number of used Remote Office Stations.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksIsdnCbcTrkAvail
|
.11
|
R
|
Integer32 (0..99999)
|
Remote Office Stations
|
An object that contains the number of available Remote Office Stations.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksIsdnCbcTrkSysLim
|
.12
|
R
|
Integer32 (0..99999)
|
Remote Office Stations
|
An object that contains the system limit of Remote Office Stations.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityTrunksTrunkGrpsUsed
|
.13
|
R
|
Integer32 (0..99999)
|
AES Server Licensed IP Stations
|
An object that contains the number of used AES Server Licensed IP Stations.
|
|
SYSTEM CAPACITY
|
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmCapacityUsage
avCmCapacityUsageIPStatUsed.0 = INTEGER: 3
avCmCapacityUsageIPStatAvail.0 = INTEGER: 17997
avCmCapacityUsageIPStatSysLim.0 = INTEGER: 18000
avCmCapacityUsageIPAttConUsed.0 = INTEGER: 0
avCmCapacityUsageIPAttConAvail.0 = INTEGER: 414
avCmCapacityUsageIPAttConSysLim.0 = INTEGER: 414
avCmCapacityUsageRemOffStatUsed.0 = INTEGER: 0
avCmCapacityUsageRemOffStatAvail.0 = INTEGER: 18000
avCmCapacityUsageRemOffStatSysLim.0 = INTEGER: 18000
avCmCapacityUsageUnauthH323StatUsed.0 = INTEGER: 0
avCmCapacityUsageUnauthH323StatAvail.0 = INTEGER: 100
avCmCapacityUsageUnauthH323StatSysLim.0 = INTEGER: 100
avCmCapacityUsageAESServLicUsed.0 = INTEGER: 0
