Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasOccBusIntvl
In Communication Manager Release 8.0, occupancy OID has been deprecated and replaced by the following occupancy OID corresponding to the avCmMeasOccBusIntvl MIB.
|
MIB group name
|
New OID name
|
New OID
|
Type
|
|---|---|---|---|
|
avCmMeasOccBusIntvl
|
avCmMeasOccBusIntvlOcc
|
enterprises.6889.2.73.8.1.34.1.1.15
|
Table
|
Description
The avCmMeasOccBusIntvl MIB Group uses the list occupancy busiest-intervals command to retrieve the occupancy data from the busiest intervals.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once a day.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmMeasOccBusIntvl
|
SAT
|
list occupancy busiest-intervals
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmMeasOccBusIntvlTable
|
.1
|
n/a
|
SEQUENCE OF avCmMeasOccBusIntvlEntry
|
n/a
|
An object that contains a list of the avCmMeasOccBusIntvl entries
|
|
avCmMeasOccBusIntvlEntry
|
.1.1
|
n/a
|
avCmMeasOccBusIntvlEntry
|
n/a
|
A avCmMeasOccBusIntvl entry containing objects of the avCmMeasOccBusIntvl information sent by the switch.
|
|
avCmMeasOccBusIntvlIdx
|
.1.1.1
|
n/a
|
Integer32 (0..2300)
|
n/a
|
An object that uniquely identifies each increment of data.
|
|
avCmMeasOccBusIntvlDateofOcc
|
.1.1.2
|
R
|
Integer32 (0..12)
|
Meas Hour
|
An object containing the date and time of occurrence.
|
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|
|||||
|
avCmMeasOccBusIntvlRunDate
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..27))
|
Date
|
An object containing the Date the command was executed.
|
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|
|||||
|
avCmMeasOccBusIntvlStatOcc
|
.1.1.4
|
R
|
Integer32 (0..100)
|
Occupancy
|
An object that contains the processor utilized by static processes.
|
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|
|||||
|
avCmMeasOccBusIntvlTotCall
|
.1.1.8
|
R
|
Integer32 (0..100)
|
Total Calls
|
An object containing the total calls connected to the measurement hour.
|
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|
|||||
|
avCmMeasOccBusIntvlTandCall
|
.1.1.9
|
R
|
Integer32 (0..100)
|
Tandem Calls
|
An object containing trunk-to-trunk calls connected for the measurement hour.
|
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|
|||||
|
avCmMeasOccBusIntvlTotConn
|
.1.1.10
|
R
|
Integer32 (0..100)
|
Total Conn
|
An object containing the total calls connected for the measurement hour.
|
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|
|||||
|
avCmMeasOccBusIntvlIntcomAtt
|
.1.1.11
|
R
|
Integer32 (0..100)
|
Intcom Atmpts
|
An object containing the number of extension-to-extension calls on the same switch and partially completed calls for the measurement hour.
|
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|
|||||
|
avCmMeasOccBusIntvlIncAtt
|
.1.1.12
|
R
|
Integer32 (0..100)
|
Inc Atmpts
|
An object containing the number of incoming trunk seizures from public network facilities.
|
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|
|||||
|
avCmMeasOccBusIntvlOutAtt
|
.1.1.13
|
R
|
Integer32 (0..100)
|
Out Atmpts
|
An object containing the number of outgoing trunk seizures from public network facilities.
|
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|
|||||
|
avCmMeasOccBusIntvlPnetAtt
|
.1.1.14
|
R
|
Integer32 (0..100)
|
Pnet Atmpts
|
An object containing the number of trunk seizures from public network facilities.
|
|
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS
|

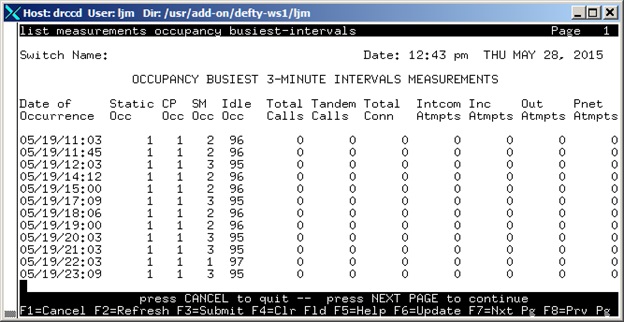

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -v 2c -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmMeasOccBusIntvl
avCmMeasOccBusIntvlDateofOcc.5191103 = STRING: 05/19/11:03
avCmMeasOccBusIntvlDateofOcc.5191145 = STRING: 05/19/11:45
:
:
avCmMeasOccBusIntvlDateofOcc.5200815 = STRING: 05/20/08:15
avCmMeasOccBusIntvlRunDate.5191103 = STRING: 12:44 pm THU MAY 28, 2015
avCmMeasOccBusIntvlRunDate.5191145 = STRING: 12:44 pm THU MAY 28, 2015
:
:
avCmMeasOccBusIntvlRunDate.5200815 = STRING: 12:44 pm THU MAY 28, 2015
avCmMeasOccBusIntvlStatOcc.5191103 = INTEGER: 1
avCmMeasOccBusIntvlStatOcc.5191145 = INTEGER: 1
:
:
avCmMeasOccBusIntvlStatOcc.5200815 = INTEGER: 1
avCmMeasOccBusIntvlCPOcc.5191103 = INTEGER: 1
avCmMeasOccBusIntvlCPOcc.5191145 = INTEGER: 1
:
:
avCmMeasOccBusIntvlCPOcc.5200815 = INTEGER: 1
avCmMeasOccBusIntvlSMOcc.5191103 = INTEGER: 2
avCmMeasOccBusIntvlSMOcc.5191145 = INTEGER: 2
:
:
avCmMeasOccBusIntvlSMOcc.5200815 = INTEGER: 2
avCmMeasOccBusIntvlIdleOcc.5191103 = INTEGER: 96
avCmMeasOccBusIntvlIdleOcc.5191145 = INTEGER: 96
:
:
avCmMeasOccBusIntvlIdleOcc.5200815 = INTEGER: 96
avCmMeasOccBusIntvlTotCall.5191103 = INTEGER: 0
avCmMeasOccBusIntvlTotCall.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlTotCall.5200815 = INTEGER: 0
avCmMeasOccBusIntvlTandCall.5191103 = INTEGER: 0
avCmMeasOccBusIntvlTandCall.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlTandCall.5200815 = INTEGER: 0
avCmMeasOccBusIntvlTotConn.5191103 = INTEGER: 0
avCmMeasOccBusIntvlTotConn.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlTotConn.5200815 = INTEGER: 0
avCmMeasOccBusIntvlIntcomAtt.5191103 = INTEGER: 0
avCmMeasOccBusIntvlIntcomAtt.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlIntcomAtt.5200815 = INTEGER: 0
avCmMeasOccBusIntvlIncAtt.5191103 = INTEGER: 0
avCmMeasOccBusIntvlIncAtt.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlIncAtt.5200815 = INTEGER: 0
avCmMeasOccBusIntvlOutAtt.5191103 = INTEGER: 0
avCmMeasOccBusIntvlOutAtt.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlOutAtt.5200815 = INTEGER: 0
avCmMeasOccBusIntvlPnetAtt.5191103 = INTEGER: 0
avCmMeasOccBusIntvlPnetAtt.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlPnetAtt.5200815 = INTEGER: 0
