avCmMeasIpVoStatSumRtdelLstHr

Last Updated : Jul 13, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmMeasIpVoStatSumRtdelLstHr
enterprises.6889.2.73.8.1.74
Table

Description

The avCmMeasIpVoStatSumRtdelLstHr MIB group displays the packet delay recorded during calls in the previous hour for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization

Polling Interval

No more than once an hour.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmMeasIpVoStatSumRtdelLstHr
SAT
list measurements ip voice-stats rtdelay last-hour
IP VOICE STATISTICS SUMMARY RTDELAY REPORT

Reference Document

A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed. The default super user can run this command.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmMeasIpVoStatSumRtdelLstHrTable
.1
n/a
SEQUENCE OF avCmMeasIpVoStatSumRtdelLstHrEntry
n/a
An object containing the avCmMeasIpVoStatSumRtdelLstHr entries.
avCmMeasIpVoStatSumRtdelLstHrEntry
.1.1
n/a
avCmMeasIpVoStatSumRtdelLstHrEntry
n/a
An object containing the avCmMeasIpVoStatSumRtdelLstHr entry with the information that the switch sent.
avCmMeasIpVoStatSumRtdelLstHrRegIdx
.1.1.1
n/a
Integer32 (1..2000)
n/a
An index in the network region.
avCmMeasIpVoStatSumRtdelLstHrHourIdx
.1.1.2
n/a
Integer32 (1..2300)
n/a
An index containing the measurements of the packet loss voice statistics in the 24-hour format.
avCmMeasIpVoStatSumRtdelLstHrHourIdx
.1.1.3
n/a
Integer32 (1..9999)
n/a
An index containing the measurements of the packet loss voice statistics in the 24-hour format.
avCmMeasIpVoStatSumRtdelLstHrRegion
.1.1.4
R
Integer32 (1..2000)
List Command: Region
An object containing the network region.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrMeasHour
.1.1.5
R
Integer32 (1..2300)
Measurement Hour
An object that containing the measurement hour.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrRunTime
.1.1.6
R
SnmpAdminString (SIZE (0..28))
Date
An object containing the date
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrBoardLoc
.1.1.7
R
SnmpAdminString (SIZE (0..6))
Board Loc
An object containing the board location.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrCallingNum
.1.1.8
R
SnmpAdminString (SIZE (0..17))
Calling Number
An object containing the calling number.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrCalledNum
.1.1.9
R
SnmpAdminString (SIZE (0..17))
Called Number
An object containing the called number.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrDstReg
.1.1.10
R
Integer32 (0..9999)
Pkt Size
An object containing the packet size of each data stream in milliseconds.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrDstReg
.1.1.11
R
Integer32 (0..9999)
Dst Reg
An object containing the destination region.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrCodec
.1.1.12
R
SnmpAdminString (SIZE (0..58))
Codec
An object containing the codec used for the call.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrAvg
.1.1.13
R
Integer32 (0..9999)
RT-Delay Avg
An object containing the average two-way packet delay in milliseconds.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrPeak
.1.1.14
R
Integer32 (0..999)
RT-Delay Peak
An object containing the peak two-way packet delay during a call.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrTimeCall
.1.1.15
R
SnmpAdminString (SIZE (0..5))
Time of Call
An object containing the timestamp when the threshold was exceeded. The timestamp is displayed in the MMSS (minutes seconds) format..
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrDataCallr
.1.1.16
R
SnmpAdminString (SIZE (0..2))
Data Call
An object containing the indication of a data call.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrEncryp
.1.1.17
R
SnmpAdminString (SIZE (0..2))
Encryp
An object containing the status of encryption during a call.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrEC
.1.1.18
R
SnmpAdminString (SIZE (0..2))
EC
An object containing the status of echo cancellation during a call.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelLstHrFEAddr
.1.1.19
R
SnmpAdminString (SIZE (0..41))
FE-Addr
An object containing the far-end IP address.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT

Sample output of forms

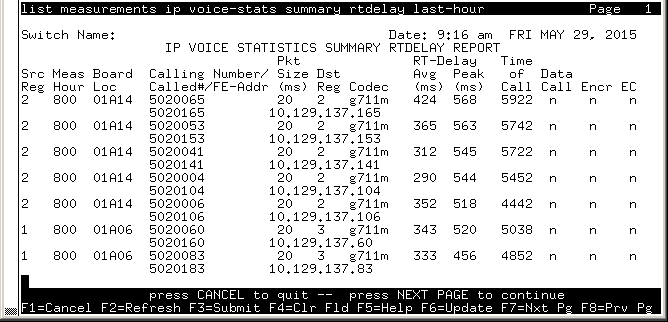

avCmMeasIpVoStatSumRtdelLstHr - IP VOICE STATISICS SUMMARY RTDELAY REPORT

Sample Output of SNMP Walk command:

server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatSumRtdelLstHr
avCmMeasIpVoStatSumRtdelLstHrRegion.1.800.1 = INTEGER: 1
avCmMeasIpVoStatSumRtdelLstHrRegion.1.800.2 = INTEGER: 1
:
:
avCmMeasIpVoStatSumRtdelLstHrRegion.4.800.5 = INTEGER: 4
avCmMeasIpVoStatSumRtdelLstHrMeasHour.1.800.1 = INTEGER: 800
avCmMeasIpVoStatSumRtdelLstHrMeasHour.1.800.2 = INTEGER: 800
:
:
avCmMeasIpVoStatSumRtdelLstHrMeasHour.4.800.5 = INTEGER: 800
avCmMeasIpVoStatSumRtdelLstHrRunTime.1.800.1 = STRING: 9:18 am FRI MAY 29, 2015
avCmMeasIpVoStatSumRtdelLstHrRunTime.1.800.2 = STRING: 9:18 am FRI MAY 29, 2015
:
:
MAY 29, 2015
avCmMeasIpVoStatSumRtdelLstHrRunTime.4.800.5 = STRING: 9:18 am FRI MAY 29, 2015
avCmMeasIpVoStatSumRtdelLstHrBoardLoc.1.800.1 = STRING: 01A06
avCmMeasIpVoStatSumRtdelLstHrBoardLoc.1.800.2 = STRING: 01A06
:
:
avCmMeasIpVoStatSumRtdelLstHrBoardLoc.4.800.5 = STRING: 01A04
avCmMeasIpVoStatSumRtdelLstHrCallingNum.1.800.1 = STRING: 5020060
avCmMeasIpVoStatSumRtdelLstHrCallingNum.1.800.2 = STRING: 5020083
:
:
avCmMeasIpVoStatSumRtdelLstHrCallingNum.4.800.5 = STRING: 5020100
avCmMeasIpVoStatSumRtdelLstHrCalledNum.1.800.1 = STRING: 5020160
avCmMeasIpVoStatSumRtdelLstHrCalledNum.1.800.2 = STRING: 5020183
:
:
avCmMeasIpVoStatSumRtdelLstHrCalledNum.4.800.5 = STRING: 5020200
avCmMeasIpVoStatSumRtdelLstHrPktSize.1.800.1 = INTEGER: 20
avCmMeasIpVoStatSumRtdelLstHrPktSize.1.800.2 = INTEGER: 20
:
:
avCmMeasIpVoStatSumRtdelLstHrPktSize.4.800.5 = INTEGER: 20
avCmMeasIpVoStatSumRtdelLstHrDstReg.1.800.1 = INTEGER: 3
avCmMeasIpVoStatSumRtdelLstHrDstReg.1.800.2 = INTEGER: 3
:
:
avCmMeasIpVoStatSumRtdelLstHrDstReg.4.800.5 = INTEGER: 4
avCmMeasIpVoStatSumRtdelLstHrCodec.1.800.1 = STRING: g711m
avCmMeasIpVoStatSumRtdelLstHrCodec.1.800.2 = STRING: g711m
:
:
avCmMeasIpVoStatSumRtdelLstHrCodec.4.800.5 = STRING: g711m
avCmMeasIpVoStatSumRtdelLstHrAvg.1.800.1 = INTEGER: 343
avCmMeasIpVoStatSumRtdelLstHrAvg.1.800.2 = INTEGER: 333
:
:
avCmMeasIpVoStatSumRtdelLstHrAvg.4.800.5 = INTEGER: 117
avCmMeasIpVoStatSumRtdelLstHrPeak.1.800.1 = INTEGER: 520
avCmMeasIpVoStatSumRtdelLstHrPeak.1.800.2 = INTEGER: 456
:
:
avCmMeasIpVoStatSumRtdelLstHrPeak.4.800.5 = INTEGER: 277
avCmMeasIpVoStatSumRtdelLstHrTimeCall.1.800.1 = STRING: 5038
avCmMeasIpVoStatSumRtdelLstHrTimeCall.1.800.2 = STRING: 4852
:
:
avCmMeasIpVoStatSumRtdelLstHrTimeCall.4.800.5 = STRING: 4456
avCmMeasIpVoStatSumRtdelLstHrDataCall.1.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrDataCall.1.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelLstHrDataCall.4.800.5 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEncryp.1.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEncryp.1.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelLstHrEncryp.2.800.5 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEncryp.3.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEncryp.3.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelLstHrEncryp.4.800.5 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEC.1.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEC.1.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelLstHrEC.4.800.5 = STRING: y
avCmMeasIpVoStatSumRtdelLstHrFEAddr.1.800.1 = STRING: 10.129.137.60
avCmMeasIpVoStatSumRtdelLstHrFEAddr.1.800.2 = STRING: 10.129.137.83
:
:
avCmMeasIpVoStatSumRtdelLstHrFEAddr.4.800.5 = STRING: 10.129.137.100
vit@server1>
