avCmListHuntGrp

Last Updated : Jul 13, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmListHuntGrp
enterprises.6889.2.73.8.1.86
Table

Description

The avCmListHuntGrp MIB group displays information about hunt groups.

Releases Supported

7.0 and later

Polling Type

Inventory and Configuration
Configuration and Inventory

Polling Interval

No more than once an hour when the hunt group administration is changed.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmListHuntGrp
SAT
list hunt-group
HUNT GROUPS

Reference Document

A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmListHuntGrpTable
.1
n/a
SEQUENCE OF AvCmStatusHuntGrpYestEntry
n/a
An object containing the avCmListHuntGrp entries.
avCmListHuntGrpEntry
.1.1
n/a
AvCmStatushuntGrpYestEntry
n/a
An object containing the avCmListHuntGrpentry with the information that the switch sent.
avCmListHuntGrpHuntGrpIdx
.1.1.1
n/a
Integer32 (0..2000)
n/a
An object that uniquely identifies each hunt group.
avCmListHuntGrpHuntGrpNo
.1.1.2
R
Integer32 (0..9999)
Grp No
An object that uniquely identifies each hunt group.
HUNT GROUPS
avCmListHuntGrpRunDate
.1.1.3
R
Integer32 (0..28)
Grp Name
An object containing the hunt group name.
HUNT GROUPS
avCmListHuntGrpGrpName
.1.1.4
R
Integer32 (0..17)
Ext
An object containing the extension of the hunt group.
HUNT GROUPS
avCmListHuntGrpGroupSiz
.1.1.5
R
Integer32 (0..8)
Grp Type
An object containing the extension of the hunt group.
HUNT GROUPS
avCmListHuntGrpMeasHour
.1.1.6
R
Integer32 (0..4)
ACD/MEAS
An object containing the indication whether the hunt group is ACD and measured.
HUNT GROUPS
avCmListHuntGrpTotalUsage
.1.1.7
R
Integer32 (0..2)
Vec
An object containing the indication whether the hunt group is a vector.
HUNT GROUPS
avCmListHuntGrpCallsAns
.1.1.8
R
Integer32 (0..5)
MCH
An object containing the indication whether the hunt group is Multiple Call Handling.
HUNT GROUPS
avCmListHuntGrpGrpQue
.1.1.9
R
Integer32 (0..2)
Que
An object containing the indication whether the hunt group has a queue.
HUNT GROUPS
avCmListHuntGrpCallsQue
.1.1.10
R
Integer32 (0..9999)
No Mem
An object containing the number of group members.
HUNT GROUPS
avCmListHuntGrpQueOvfl
.1.1.11
R
SnmpAdminString (SIZE (0..5))
Cov Pathl
An object containing the indication whether the hunt group has a coverage path.
HUNT GROUPS
avCmListHuntGrpTimeAvail
.1.1.12
R
SnmpAdminString (SIZE (0..5))
Cov Pathl
An object containing the indication whether the hunt group has NotifCtgAdj.
HUNT GROUPS
avCmListHuntGrpSpeedAns
.1.1.13
R
SnmpAdminString (SIZE (0..3))
Dom Ctrl
An object containing the indication whether the hunt group has Domain Control.
HUNT GROUPS
avCmListHuntGrpTyp
.1.1.14
R
SnmpAdminString (SIZE (0..2))
Message Center
An object containing the indication whether the hunt group has Message Center.
HUNT GROUPS
avCmListHuntGrpAban
.1.1.15
R
SnmpAdminString (SIZE (0..8))
Message Center Name
An object containing the name of Message Center.
HUNT GROUPS

Sample output of forms

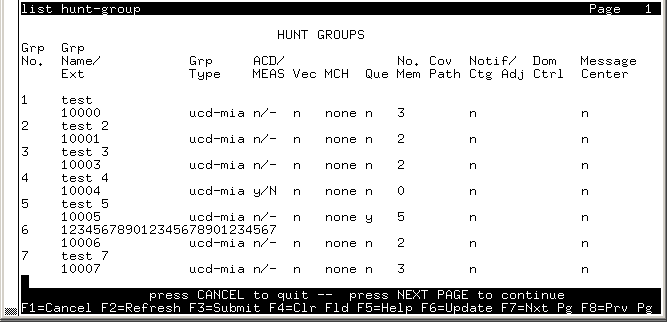

avCmListHuntGrp - HUNT GROUPS

Sample Output of SNMP Walk command:

server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmListHuntGrp
avCmListHuntGrpGrpNumber.1 = INTEGER: 1
avCmListHuntGrpGrpNumber.2 = INTEGER: 2
:
:
avCmListHuntGrpGrpNumber.10 = INTEGER: 10
avCmListHuntGrpGrpName.1 = STRING: test
avCmListHuntGrpGrpName.2 = STRING: test 2
:
:
avCmListHuntGrpGrpName.10 = STRING: test 10
avCmListHuntGrpGrpExt.1 = STRING: 10000
avCmListHuntGrpGrpExt.2 = STRING: 10001
:
:
avCmListHuntGrpGrpExt.10 = STRING: 10010
avCmListHuntGrpGrpType.1 = STRING: ucd-mia
avCmListHuntGrpGrpType.2 = STRING: ucd-mia
:
:
avCmListHuntGrpGrpType.10 = STRING: ucd-mia
avCmListHuntGrpGrpAcdMeas.1 = STRING: n/-
avCmListHuntGrpGrpAcdMeas.2 = STRING: n/-
:
:
avCmListHuntGrpGrpAcdMeas.10 = STRING: n/-
avCmListHuntGrpGrpVec.1 = STRING:
avCmListHuntGrpGrpVec.2 = STRING:
:
:
avCmListHuntGrpGrpVec.10 = STRING:
avCmListHuntGrpGrpMch.1 = STRING:
avCmListHuntGrpGrpMch.2 = STRING:
:
:
avCmListHuntGrpGrpMch.10 = STRING:
avCmListHuntGrpGrpQue.1 = STRING: n
avCmListHuntGrpGrpQue.2 = STRING: n
:
:
avCmListHuntGrpGrpQue.10 = STRING: n
avCmListHuntGrpGrpNoMem.1 = INTEGER: 3
avCmListHuntGrpGrpNoMem.2 = INTEGER: 2
:
:
avCmListHuntGrpGrpNoMem.10 = INTEGER: 2
avCmListHuntGrpCovPath.1 = STRING:
avCmListHuntGrpCovPath.2 = STRING:
:
:
avCmListHuntGrpCovPath.10 = STRING:
avCmListHuntGrpNotifCtgAdj.1 = STRING: n
avCmListHuntGrpNotifCtgAdj.2 = STRING: n
:
:
avCmListHuntGrpNotifCtgAdj.10 = STRING: n
avCmListHuntGrpDomCtrl.1 = STRING:
avCmListHuntGrpDomCtrl.2 = STRING:
:
:
avCmListHuntGrpDomCtrl.10 = STRING:
avCmListHuntGrpMsgCtr.1 = STRING: n
avCmListHuntGrpMsgCtr.2 = STRING: n
:
:
avCmListHuntGrpMsgCtr.10 = STRING: n
avCmListHuntGrpMsgCtrName.1 = STRING:
avCmListHuntGrpMsgCtrName.2 = STRING:
:
:
avCmListHuntGrpMsgCtrName.10 = STRING:
