Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmCapacityIPUsage
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmCapacityIPUsage
|
enterprises.6889.2.73.8.1.22
|
Scalar
|
Description
The avCmCapacityIPUsage MIB Group uses the display capacity command to retrieve the IP PORT USAGE capacity information under the IP PORT USAGE COUNTS section of the SYSTEM CAPACITY form.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
No more than once every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmCapacityIPUsage
|
SAT
|
display capacity
|
SYSTEM CAPACITY
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmCapacityIPUsageTotalIpStatPtsUsed
|
.1
|
R
|
Integer32 (0..99999)
|
Total IP Station Ports
|
An object that contains the number of used total IP station ports.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityIPUsageTotalIpStatPtsAvail
|
.2
|
R
|
Integer32 (0..99999)
|
Total IP Station Ports
|
An object that contains the number of available total IP station ports.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityIPUsageTotalIpStatPtsSysLim
|
.3
|
R
|
Integer32 (0..99999)
|
Total IP Station Ports
|
An object that contains the system limit of total IP station ports.
|
|
SYSTEM CAPACITY
|

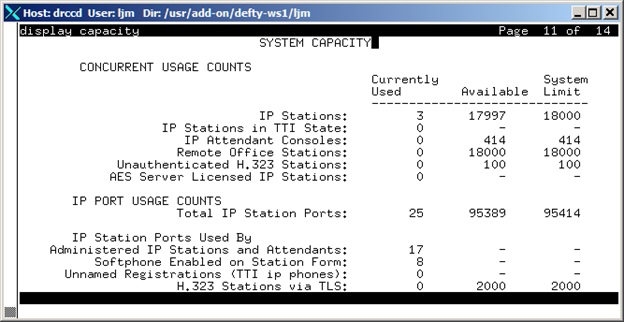

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmCapacityIPUsage
avCmCapacityIPUsageTotalIpStatPtsUsed.0 = INTEGER: 25
avCmCapacityIPUsageTotalIpStatPtsAvail.0 = INTEGER: 95389
avCmCapacityIPUsageTotalIpStatPtsSysLim.0 = INTEGER: 95414
