avCmStatusStationRange
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmStatusStationRange
|
enterprises.6889.2.73.8.1.31
|
Scalar/Table
|
Description
The avCmStatusStationRange MIB group displays the output of the status station command.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once a day or when stations are added.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmStatusStationRange
|
SAT
|

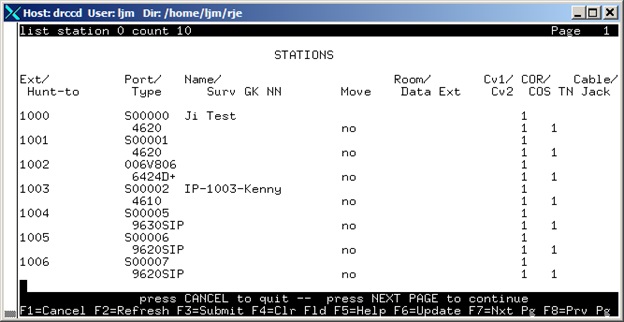

list station
|
STATIONS
|
|
SAT
|
status station xxx
|
GENERAL STATUS
|
Reference Document
-
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
-
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
-
No special permissions needed.
-
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmStatusStationRangeStartExt
|
.1
|
R/W
|
SnmpAdminString (SIZE (0..17))
|
n/a
|
An object that contains the starting extension location.
|
|
avCmStatusStationRangeCount
|
.2
|
R/W
|
SnmpAdminString (SIZE (0..17))
|
n/a
|
An object containing the number of stations to list.
|
|
avCmStatusStationRangeTable
|
.3
|
n/a
|
SEQUENCE OF avCmStatusStationRangeEntry
|
n/a
|
An object that contains a list of the avCmStatusStationRange entries.
|
|
avCmStatusStationRangeEntry
|
.4
|
n/a
|
avCmStatusStationRangeEntry
|
n/a
|
A avCmStatusStationRange entry containing objects of the avCmStatusStationRange information sent by the switch.
|
|
avCmStatusStationRangeIdx
|
.3.1.1
|
n/a
|
SnmpAdminString (SIZE (0..17))
|
n/a
|
An object that contains an index into the administered station.
|
|
avCmStatusStationRangeExtension
|
.3.1.2
|
R
|
SnmpAdminString (SIZE (0..17))
|
Ext
|
An object containing the stations extension.
|
|

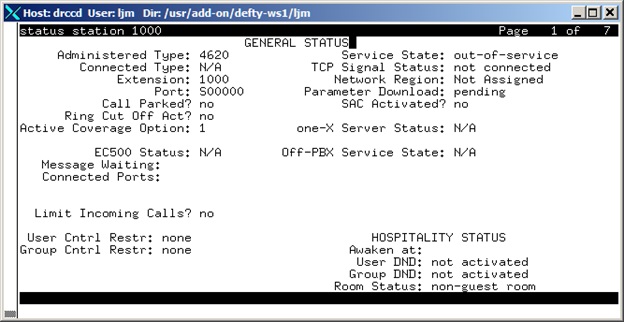

GENERAL STATUS
|
|||||
|
avCmStatusStationConnType
|
.3.1.3
|
R
|
SnmpAdminString (SIZE (0..15))
|
Connected Type
|
An object containing the connected station type.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeServiceState
|
.3.1.4
|
R
|
SnmpAdminString (SIZE (0..22))
|
Service State
|
An object containing the Station member service state.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangePort
|
.3.1.5
|
R
|
SnmpAdminString (SIZE (0..11))
|
Port
|
An object containing the stations port assignment.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeConnPort1
|
.3.1.6
|
R
|
SnmpAdminString (SIZE (0..11))
|
Connected Ports
|
A DisplayString Object that contains the first port connected to the station
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeConnPort2
|
.3.1.7
|
R
|
SnmpAdminString (SIZE (0..11))
|
Connected Ports
|
A DisplayString Object that contains the second port connected to the station
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeConnPort3
|
.3.1.8
|
R
|
SnmpAdminString (SIZE (0..11))
|
Connected Ports
|
A DisplayString Object that contains the third port connected to the station
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeConnPort4
|
.3.1.9
|
R
|
SnmpAdminString (SIZE (0..11))
|
Connected Ports
|
A DisplayString Object that contains the fourth port connected to the station
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeConnPort5
|
.3.1.10
|
R
|
SnmpAdminString (SIZE (0..11))
|
Connected Ports
|
A DisplayString Object that contains the fifth port connected to the station
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeConnPort6
|
.3.1.11
|
R
|
SnmpAdminString (SIZE (0..11))
|
Connected Ports
|
A DisplayString Object that contains the sixth port connected to the station
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeConnPort7
|
.3.1.12
|
R
|
SnmpAdminString (SIZE (0..11))
|
Connected Ports
|
A DisplayString Object that contains the seventh port connected to the station
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeConnPort8
|
.3.1.13
|
R
|
SnmpAdminString (SIZE (0..11))
|
Connected Ports
|
A DisplayString Object that contains the seventh port connected to the station
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeConnPort9
|
.3.1.14
|
R
|
SnmpAdminString (SIZE (0..11))
|
Connected Ports
|
A DisplayString Object that contains the seventh port connected to the station
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeConnPort10
|
.3.1.15
|
R
|
SnmpAdminString (SIZE (0..11))
|
Connected Ports
|
A DisplayString Object that contains the seventh port connected to the station
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeSACactive
|
.3.1.16
|
R
|
SnmpAdminString (SIZE (0..4))
|
SAC Activated
|
An object containing whether the stations Send All Calls (SAC) button is activated.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeCFdestExt
|
.3.1.17
|
R
|
SnmpAdminString (SIZE (0..39))
|
Call Forward Destination Extension
|
An object containing whether the stations Send All Calls (SAC) button is activated.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeRingCutOff
|
.3.1.18
|
R
|
SnmpAdminString (SIZE (0..39))
|
Ringer Cutoff
|
An object containing whether Ring Cut Off is activated for the station.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeSerialNbr
|
.3.1.19
|
R
|
SnmpAdminString (SIZE (0..12))
|
Serial Number
|
An object containing the station serial number.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangePartID
|
.3.1.20
|
R
|
SnmpAdminString (SIZE (0..12))
|
Part ID
|
An object containing the station Part ID.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeSwitchPort
|
.3.1.21
|
R
|
SnmpAdminString (SIZE (0..8))
|
Switch Port
|
An object containing the station switch port.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeSwitchIPAddr
|
.3.1.22
|
R
|
SnmpAdminString (SIZE (0..40))
|
Switch End IP Address
|
A DisplayString Object that contains the switch-end IP address for the station.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeSwitchIPPort
|
.3.1.23
|
R
|
SnmpAdminString (SIZE (0..6))
|
Switch End IP Port
|
A DisplayString Object that contains the switch-end IP port number for the station.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeSetIPAddr
|
.3.1.24
|
R
|
SnmpAdminString (SIZE (0..40))
|
Set End IP Address
|
A DisplayString Object that contains the switch-end IP address for the station.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationRangeSetIPPort
|
.3.1.25
|
R
|
SnmpAdminString (SIZE (0..39))
|
Set End IP Port
|
A DisplayString Object that contains the switch-end IP port number for the station.
|
|
GENERAL STATUS
|
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/ /AVAYA-AURA-CM-MIB.txt avCmStatusStationRange
avCmStatusStationRangeStartExt.0 = STRING: 0
avCmStatusStationRangeCount.0 = INTEGER: 10
avCmStatusStationRangeExtension."1000" = STRING: 1000
avCmStatusStationRangeExtension."1001" = STRING: 1001
:
:
avCmStatusStationRangeExtension."1009" = STRING: 1009
avCmStatusStationRangeConnType."1000" = STRING: N/A
avCmStatusStationRangeConnType."1001" = STRING: N/A
:
:
avCmStatusStationRangeConnType."1009" = STRING: N/A
avCmStatusStationRangeServiceState."1000" = STRING: out-of-service
avCmStatusStationRangeServiceState."1001" = STRING: out-of-service
:
:
avCmStatusStationRangeServiceState."1009" = STRING: out-of-service
avCmStatusStationRangePort."1000" = STRING: S00000
avCmStatusStationRangePort."1001" = STRING: S00001
:
:
avCmStatusStationRangePort."1009" = STRING: S00009
avCmStatusStationRangeConnPort1."1000" = STRING:
avCmStatusStationRangeConnPort1."1001" = STRING:
:
:
avCmStatusStationRangeConnPort1."1009" = STRING:
avCmStatusStationRangeConnPort2."1000" = STRING:
avCmStatusStationRangeConnPort2."1001" = STRING:
:
:
avCmStatusStationRangeConnPort2."1009" = STRING:
avCmStatusStationRangeConnPort3."1000" = STRING:
avCmStatusStationRangeConnPort3."1001" = STRING:
:
:
avCmStatusStationRangeConnPort3."1009" = STRING:
avCmStatusStationRangeConnPort4."1000" = STRING:
avCmStatusStationRangeConnPort4."1001" = STRING:
:
:
avCmStatusStationRangeConnPort4."1009" = STRING:
avCmStatusStationRangeConnPort5."1000" = STRING:
avCmStatusStationRangeConnPort5."1001" = STRING:
:
:
avCmStatusStationRangeConnPort5."1009" = STRING:
avCmStatusStationRangeConnPort6."1000" = STRING:
avCmStatusStationRangeConnPort6."1001" = STRING:
:
:
avCmStatusStationRangeConnPort6."1009" = STRING:
avCmStatusStationRangeConnPort7."1000" = STRING:
avCmStatusStationRangeConnPort7."1001" = STRING:
:
:
avCmStatusStationRangeConnPort7."1009" = STRING:
avCmStatusStationRangeConnPort8."1000" = STRING:
avCmStatusStationRangeConnPort8."1001" = STRING:
:
:
avCmStatusStationRangeConnPort8."1009" = STRING:
avCmStatusStationRangeConnPort9."1000" = STRING:
avCmStatusStationRangeConnPort9."1001" = STRING:
:
:
avCmStatusStationRangeConnPort9."1009" = STRING:
avCmStatusStationRangeConnPort10."1000" = STRING:
avCmStatusStationRangeConnPort10."1001" = STRING:
:
:
avCmStatusStationRangeConnPort10."1009" = STRING:
avCmStatusStationRangeSACactive."1000" = STRING: no
avCmStatusStationRangeSACactive."1001" = STRING: no
:
:
avCmStatusStationRangeSACactive."1009" = STRING: no
avCmStatusStationRangeCFdestExt."1000" = STRING:
avCmStatusStationRangeCFdestExt."1001" = STRING:
:
:
avCmStatusStationRangeCFdestExt."1009" = STRING:
avCmStatusStationRangeRingCutOff."1000" = STRING: no
avCmStatusStationRangeRingCutOff."1001" = STRING: no
:
:
avCmStatusStationRangeRingCutOff."1009" = STRING: no
avCmStatusStationRangeSerialNbr."1000" = STRING: unavailable
avCmStatusStationRangeSerialNbr."1001" = STRING: unavailable
:
:
avCmStatusStationRangeSerialNbr."1009" = STRING: unavailable
avCmStatusStationRangePartID."1000" = STRING: unavailable
avCmStatusStationRangePartID."1001" = STRING: unavailable
:
:
avCmStatusStationRangePartID."1009" = STRING: unavailable
avCmStatusStationRangeSwitchPort."1000" = STRING:
avCmStatusStationRangeSwitchPort."1001" = STRING:
:
:
avCmStatusStationRangeSwitchPort."1009" = STRING:
avCmStatusStationRangeSwitchIPAddr."1000" = STRING:
avCmStatusStationRangeSwitchIPAddr."1001" = STRING:
:
:
avCmStatusStationRangeSwitchIPAddr."1009" = STRING:
avCmStatusStationRangeSwitchIPPort."1000" = STRING: 0
avCmStatusStationRangeSwitchIPPort."1001" = STRING: 0
:
:
avCmStatusStationRangeSwitchIPPort."1009" = STRING: 0
avCmStatusStationRangeSetIPAddr."1000" = STRING:
avCmStatusStationRangeSetIPAddr."1001" = STRING:
:
:
avCmStatusStationRangeSetIPAddr."1009" = STRING:
avCmStatusStationRangeSetIPPort."1000" = STRING: 0
avCmStatusStationRangeSetIPPort."1001" = STRING: 0
:
:
avCmStatusStationRangeSetIPPort."1009" = STRING: 0
