Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasTrkGrpSumYest
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmMeasTrkGrpSumYest
|
enterprises.6889.2.73.8.1.37
|
Table
|
Description
The avCmMeasTrkGrpSumYest MIB Group uses the list measurements trunk-group summary yesterday command to retrieve trunk from yesterday.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmMeasTrkGrpSumYest
|
SAT
|
list measurements trunk-group summary yesterday
|

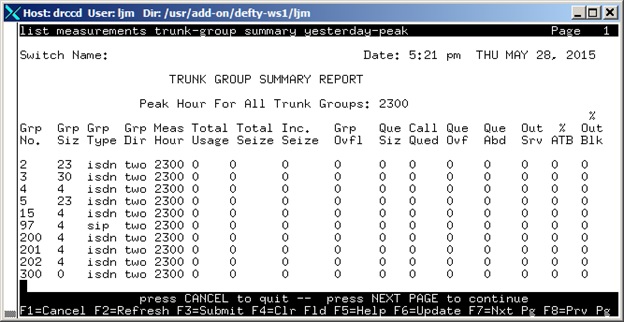

TRUNK GROUP SUMMARY REPORT
|
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmMeasTrkGrpSumYestTable
|
.1
|
n/a
|
SEQUENCE OF avCmMeasTrkGrpSumYestEntry
|
n/a
|
An object that contains a list of the avCmMeasTrkGrpSumYest entries
|
|
avCmMeasTrkGrpSumYestEntry
|
.1.1
|
n/a
|
avCmMeasTrkGrpSumYestEntry
|
n/a
|
A avCmMeasTrkGrpSumYest entry containing objects of the avCmMeasTrkGrpSumYest information sent by the switch.
|
|
avCmMeasTrkGrpSumYestTrunkGrpIdx
|
.1.1.1
|
n/a
|
Integer32 (0..2000)
|
n/a
|
An object that uniquely identifies each increment of data.
|
|
avCmMeasTrkGrpSumYestTrunkGroup
|
.1.1.2
|
R
|
Integer32 (0..2000)
|
Trunk Group
|
An object containing the trunk group number.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestRunDate
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..27))
|
Date
|
An object containing the Date the command was executed.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestPeakHour
|
.1.1.4
|
R
|
Integer32 (0..2300)
|
Peak Hour For All Trunk Groups
|
An object containing the peak traffic hour for all trunk groups.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestMeasHour
|
.1.1.5
|
R
|
Integer32 (0..2300)
|
Meas Hour
|
An object containing the Hour the measurement was taken.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestGroupSize
|
.1.1.6
|
R
|
Integer32 (0..255)
|
Grp Siz
|
An object containing the number of administered trunks in the trunk group.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestTotalUsage
|
.1.1.7
|
R
|
Integer32 (0..9999)
|
Total Usage
|
An object containing the total time trunks are busy with calls during the measurement period (in CCS).
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestTotalSeize
|
.1.1.8
|
R
|
Integer32 (0..999999)
|
Total Seize
|
An object containing the number of times a trunk was seized in the group including false starts, don't answer and busy.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestIncSeize
|
.1.1.9
|
R
|
Integer32 (0..999999)
|
Inc Seize
|
An object containing the number of incoming seizures carried on the trunk group.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestGrpOvflow
|
.1.1.10
|
R
|
Integer32 (0..999999)
|
Grp Ovfl
|
An object containing the number of calls offered to a trunk group that are not carried or queued.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestQueSiz
|
.1.1.11
|
R
|
Integer32 (0..9999)
|
Que Siz
|
An object containing a number that identifies the number of slots assigned to the trunk group queue.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestCallQued
|
.1.1.12
|
R
|
Integer32 (0..9999)
|
Call Qued
|
An object containing the total number of calls that entered the trunk group queue after finding all trunks busy.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestQueOvf
|
.1.1.13
|
R
|
Integer32 (0..9999)
|
Que Ovf
|
An object containing the total number of calls that were not queued because the queue was full.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestQueAbd
|
.1.1.14
|
R
|
Integer32 (0..9999)
|
Que Abd
|
An object containing the total number of calls that were removed from the queue.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestOutSrv
|
.1.1.15
|
R
|
Integer32 (0..999)
|
Out Srv
|
An object containing the number of trunks in the group
that are out of service
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestPercentAtb
|
.1.1.16
|
R
|
Integer32 (0..100)
|
% ATB
|
An object containing the percentage of time all trunks the group were simultaneously in use.
|
|
TRUNK GROUP SUMMARY REPORT
|
|||||
|
avCmMeasTrkGrpSumYestPercentOutBlk
|
.1.1.17
|
R
|
Integer32 (0..100)
|
% Out Blk
|
An object containing the percentage of offered calls that are not carried on the group.
|
|
TRUNK GROUP SUMMARY REPORT
|
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmMeasSecViolationSum
avCmMeasSecViolationSumPortType."" = STRING:
avCmMeasSecViolationSumRunDate."" = STRING: 8:32 am FRI MAY 29, 2015
avCmMeasSecViolationSumCountSince."" = STRING: system initialization
avCmMeasSecViolationSumValidBC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidBC."" = INTEGER: 0
avCmMeasSecViolationSumBC."" = INTEGER: 0
avCmMeasSecViolationSumValidStnSecCode."" = INTEGER: 0
avCmMeasSecViolationSumInvalidStnSecCode."" = INTEGER: 0
avCmMeasSecViolationSumValidTrkSecCode."" = INTEGER: 0
avCmMeasSecViolationSumInvalidTrkSecCode."" = INTEGER: 0
avCmMeasSecViolationSumTotValidSecCode."" = INTEGER: 0
avCmMeasSecViolationSumTotInvalidSecCode."" = INTEGER: 0
avCmMeasSecViolationSumTotSecCode."" = INTEGER: 0
avCmMeasSecViolationSumValidStnAC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidStnAC."" = INTEGER: 0
avCmMeasSecViolationSumValidTrkAC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidTrkAC."" = INTEGER: 0
avCmMeasSecViolationSumValidRemAccAC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidRemAccAC."" = INTEGER: 0
avCmMeasSecViolationSumValidAtdAC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidAtdAC."" = INTEGER: 0
avCmMeasSecViolationSumValidTotAC."" = INTEGER: 0
avCmMeasSecViolationSumInvalidTotAC."" = INTEGER: 0
avCmMeasSecViolationSumTotAC."" = INTEGER: 0
