Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListConfigMedGateway Group
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmListConfigMedGateway Group
|
enterprises.6889.2.73.8.1.46
|
Table
|
Description
The avCmListConfigMedGateway MIB group uses the list configuration media-gateway command to retrieve media-gateway data.
Releases Supported
6.3.100 and later
Polling Type
Polling Interval
No more than once a day or after configuration changes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmListConfigMedGateway Group
|
SAT
|

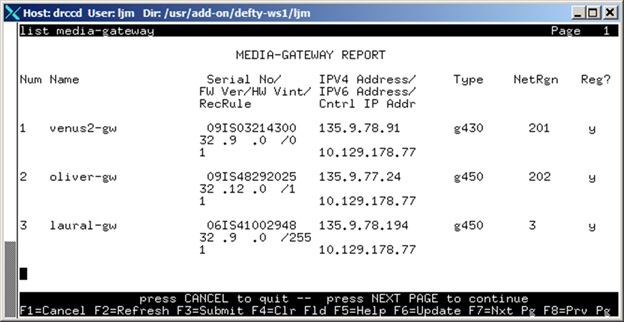

list media-gateway
|
SYSTEM CONFIGURATION
|
|
SAT
|

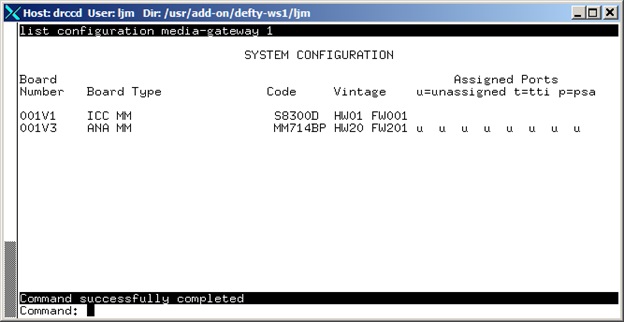

list configuration media-gateway
|
SYSTEM CONFIGURATION
|
Reference Document
-
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
-
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
-
No special permissions needed.
-
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmListConfigMedGatewayTable
|
.1
|
n/a
|
SEQUENCE OF AvCmListConfigMedGatewayEntry
|
n/a
|
An object that contains a list of the avCmListConfigMedGateway entries.
|
|
avCmListConfigMedGatewayEntry
|
.1.1
|
n/a
|
AvCmListMedGatewayEntry
|
n/a
|
A avCmListConfigMedGateway entry containing objects of the avCmListConfigMedGateway information sent by the switch.
|
|
avCmListConfigMedGatewayNumIdx
|
.1.1.1
|
n/a
|
Integer32 (0..999)
|
n/a
|
An object that contains that uniquely identifies a media gateway.
|
|
avCmListConfigMedGatewayBoardIdx
|
.1.1.2
|
n/a
|
SnmpAdminString (SIZE (0..10))
|
n/a
|
An object that contains that uniquely identifies a board based on its location in the system. The syntax for the Board Number is as follows: cabinet(01-64):carrier(A-E):slot(01-20).
|
|
avCmListConfigMedGatewayBoardNumber
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..28))
|
Board Number
|
An object that contains that uniquely identifies a board based on its location in the system. The syntax for the Board Number is as follows: cabinet(01-64):carrier(A-E):slot(01-20).
|
|
SYSTEM CONFIGURATION
|
|||||
|
avCmListConfigMedGatewayBoardType
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..20))
|
Board Type
|
An object containing the type of board.
|
|
SYSTEM CONFIGURATION
|
|||||
|
avCmListConfigMedGatewayCode
|
.1.1.5
|
R
|
SnmpAdminString (SIZE (0..11))
|
Code
|
An object that contains a the board code and suffix of the board.
|
|
SYSTEM CONFIGURATION
|
|||||
|
avCmListConfigMedGatewayVintage
|
.1.1.6
|
R
|
SnmpAdminString (SIZE (0..11))
|
Vintage
|
An object that contains vintage of the board.
|
|
SYSTEM CONFIGURATION
|
|||||
|
avCmListConfigMedGatewayAssignedPorts
|
.1.1.7
|
R
|
SnmpAdminString (SIZE (0..193))
|
Assigned Ports
|
An object that specifies the assignment of the port. A string representing integers identical to the port numbers that are assigned. The char (u) indicates that the port is unassigned. The char (t) indicates that the port is assigned via the TTI feature. The char (p) indicates that the port is assigned via the PSA feature. A NULL char or string indicates that the port(s) does not exist or is not administered on that board.
|
|
SYSTEM CONFIGURATION
|
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListConfigMedGateway
avCmListConfigMedGatewayBoardNumber.1."001V1" = STRING: 001V1
avCmListConfigMedGatewayBoardNumber.1."001V3" = STRING: 001V3
:
:
avCmListConfigMedGatewayBoardNumber.10."010V8" = STRING: 010V8
avCmListConfigMedGatewayBoardType.1."001V1" = STRING: ICC MM
avCmListConfigMedGatewayBoardType.1."001V3" = STRING: ANA MM
:
:
avCmListConfigMedGatewayCode.10."010V8" = STRING: MM711AP
avCmListConfigMedGatewayVintage.1."001V1" = STRING: HW01 FW001
avCmListConfigMedGatewayVintage.1."001V3" = STRING: HW20 FW201
:
:
avCmListConfigMedGatewayVintage.10."010V8" = STRING: HW31 FW087
avCmListConfigMedGatewayAssignedPorts.1."001V1" = STRING:
avCmListConfigMedGatewayAssignedPorts.1."001V3" = STRING: u u u u u u
u u
:
:
avCmListConfigMedGatewayAssignedPorts.10."010V8" = STRING: u u u u u u u u
