Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmCapacityAnnounce
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmCapacityAnnounce
|
enterprises.6889.2.73.8.1.17
|
Scalar
|
Description

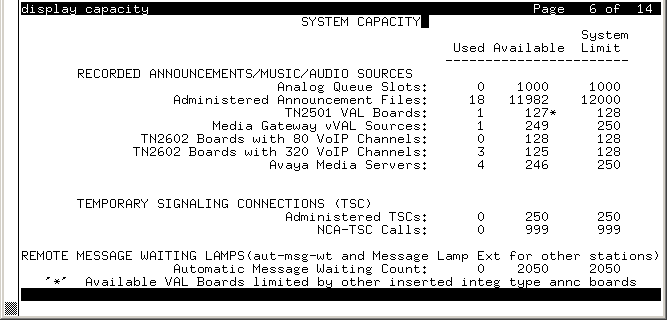

The avCmCapacityAnnounce MIB Group uses the display capacity command to retrieve the ANNOUNCEMENTS capacity information under the RECORDED ANNOUNCEMENTS/MUSIC/AUDIO SOURCES section of the SYSTEM CAPACITY form.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
No more than once every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmCapacityAnnounce
|
SAT
|
display capacity
|
SYSTEM CAPACITY
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmCapacityAnnounceAdmAnnFileUsed
|
.1
|
R
|
Integer32 (0..99999)
|
Administered Announcement Files
|
An object that contains the number of used administered announcement files.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceAdmAnnFileAvaill
|
.2
|
R
|
Integer32 (0..99999)
|
Administered Announcement Files
|
An object that contains the number of available administered announcement files.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceAdmAnnFileSysLim
|
.3
|
R
|
Integer32 (0..99999)
|
Administered Announcement Files
|
An object that contains the system limit of administered announcement files.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceTN2501ValBrdUsed
|
.4
|
R
|
Integer32 (0..99999)
|
TN2501 VAL Boards
|
An object that contains the number of used TN2501 VAL Boards.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceTN2501ValBrdAvail
|
.5
|
R
|
Integer32 (0..99999)
|
TN2501 VAL Boards
|
An object that contains the number of available TN2501 VAL Boards.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceTN2501ValBrdSysLim
|
.6
|
R
|
Integer32 (0..99999)
|
TN2501 VAL Boards
|
An object that contains the system limit of TN2501 VAL Boards.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceMGValSrcUsed
|
.7
|
R
|
Integer32 (0..99999)
|
Media Gateway vVAL Sources
|
An object that contains the number of used Media Gateway vVAL Sources.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceMGValSrcAvail
|
.8
|
R
|
Integer32 (0..99999)
|
Media Gateway vVAL Sources
|
An object that contains the number of available Media Gateway vVAL Sources.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceMGValSrcSysLim
|
.9
|
R
|
Integer32 (0..99999)
|
Media Gateway vVAL Sources
|
An object that contains the system limits of Media Gateway vVAL Sources.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceTN2602Brds80ChUsed
|
.10
|
R
|
Integer32 (0..99999)
|
TN2602 Boards with 80 VoIP Channels
|
An object that contains the number of used TN2602 Boards with 80 VoIP channels.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceTN2602Brds80ChAvail
|
.11
|
R
|
Integer32 (0..99999)
|
TN2602 Boards with 80 VoIP Channels
|
An object that contains the number of available TN2602 Boards with 80 VoIP channels.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceTN2602Brds80ChSysLim
|
.12
|
R
|
Integer32 (0..99999)
|
TN2602 Boards with 80 VoIP Channels
|
An object that contains the system limit of TN2602 Boards with 80 VoIP channels.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceTN2602Brds320Used
|
.13
|
R
|
Integer32 (0..99999)
|
TN2602 Boards with 320 VoIP Channels
|
An object that contains the number of used TN2602 Boards with 320 VoIP channels.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceTN2602Brds320Avail
|
.14
|
R
|
Integer32 (0..99999)
|
TN2602 Boards with 320 VoIP Channels
|
An object that contains the number of available TN2602 Boards with 320 VoIP channels.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceTN2602Brds320SysLim
|
.15
|
R
|
Integer32 (0..99999)
|
TN2602 Boards with 320 VoIP Channels
|
An object that contains the system limit of TN2602 Boards with 320 VoIP channels.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceAvayaMedServUsed
|
.16
|
R
|
Integer32 (0..99999)
|
Avaya Media Servers
|
An object that contains the number of used Avaya Media Servers.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceAvayaMedServAvail
|
.17
|
R
|
Integer32 (0..99999)
|
Avaya Media Servers
|
An object that contains the number of available Avaya Media Servers.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityAnnounceAvayaMedServSysLim
|
.18
|
R
|
Integer32 (0..99999)
|
Avaya Media Servers
|
An object that contains the system limit of Avaya Media Servers.
|
|
SYSTEM CAPACITY
|
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -v 2c -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmCapacityAnnounce
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceAdmAnnFileUsed.0 = INTEGER: 18
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceAdmAnnFileAvail.0 = INTEGER: 11982
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceAdmAnnFileSysLim.0 = INTEGER: 12000
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceTN2501ValBrdUsed.0 = INTEGER: 1
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceTN2501ValBrdAvail.0 = INTEGER: 127
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceTN2501ValBrdSysLim.0 = INTEGER: 128
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceMGValSrcUsed.0 = INTEGER: 1
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceMGValSrcAvail.0 = INTEGER: 249
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceMGValSrcSysLim.0 = INTEGER: 250
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceTN2602Brds80ChUsed.0 = INTEGER: 0
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceTN2602Brds80ChAvail.0 = INTEGER: 128
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceTN2602Brds80ChSysLim.0 = INTEGER: 128
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceTN2602Brds320Used.0 = INTEGER: 3
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceTN2602Brds320Avail.0 = INTEGER: 125
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceTN2602Brds320SysLim.0 = INTEGER: 128
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceAvayaMedServUsed.0 = INTEGER: 4
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceAvayaMedServAvail.0 = INTEGER: 246
AVAYA-AURA-CM-MIB::avCmCapacityAnnounceAvayaMedServSysLim.0 = INTEGER: 250
