Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmCapacityCurrentUsage
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmCapacityCurrentUsage
|
enterprises.6889.2.73.8.1.23
|
Table
|
Description
The avCmCapacityCurrentUsage MIB Group displays the output of the CURRENT USAGE COUNTS BY PRODUCT ID page of display capacitycommand.
Releases Supported
6.3.100 and later
Polling Type
Configuration
Configuration, Inventory, and Performance/Utilization
Polling Interval
Not more than once a day.
No more than once every 20 minutes.
Default Caching Interval
60 seconds
600 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmCapacityCurrentUsage
|
SAT
|
display capacity
|
SYSTEM CAPACITY
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmCapacityCurrentUsageTable
|
.1
|
n/a
|
SEQUENCE OF AvCmCapacityCurrentUsageEntry
|
n/a
|
An object that contains a list of the avCmCapacityCurrentUsage entries.
|
|
avCmCapacityCurrentUsageEntry
|
.1.1
|
n/a
|
AvCmCapacityCurrentUsageEntry
|
n/a
|
An avCmCapacityCurrentUsage entry containing objects of the avCmCapacityCurrentUsage information sent by the switch.
|
|
avCmCapacityCurrentUsageIdx
|
.1.1.1
|
R
|
SnmpAdminString (SIZE (0..11))
|
n/a
|
An object containing an index that uniquely identifies a Product ID.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityCurrentUsageID
|
.1.1.2
|
R
|
SnmpAdminString (SIZE (0..11))
|
ID
|
An object containing the Product ID of the entry.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityCurrentUsageRel
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..3))
|
Rel
|
An object containing the release of the Product ID.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityCurrentUsageUsed
|
.1.1.4
|
R
|
Integer32 (0..999)
|
ID
|
An object that contains the Used count of a Product ID.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityCurrentUsageAvail
|
.1.1.5
|
R
|
Integer32 (0..999)
|
Remote Office Stations
|
An object that contains the available count of a Product ID.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityCurrentUsageLicLim
|
.1.1.6
|
R
|
Integer32 (0..999)
|
Remote Office Stations
|
An object that contains the licensed limit of a Product ID.
|
|
SYSTEM CAPACITY
|

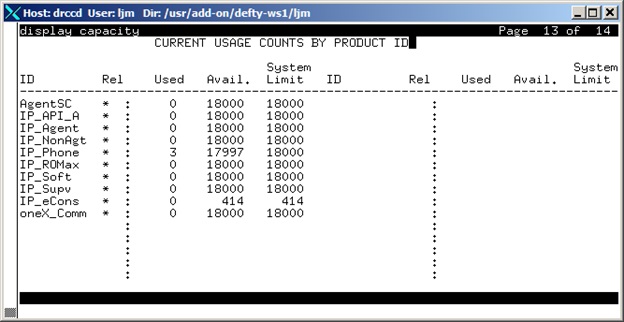

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmCapacityCurrentUsage
avCmCapacityCurrentUsageID."AgentSC" = STRING: AgentSC
avCmCapacityCurrentUsageID."IP_Soft" = STRING: IP_Soft
avCmCapacityCurrentUsageID."IP_Supv" = STRING: IP_Supv
avCmCapacityCurrentUsageID."IP_API_A" = STRING: IP_API_A
avCmCapacityCurrentUsageID."IP_Agent" = STRING: IP_Agent
avCmCapacityCurrentUsageID."IP_Phone" = STRING: IP_Phone
avCmCapacityCurrentUsageID."IP_ROMax" = STRING: IP_ROMax
avCmCapacityCurrentUsageID."IP_eCons" = STRING: IP_eCons
avCmCapacityCurrentUsageID."IP_NonAgt" = STRING: IP_NonAgt
avCmCapacityCurrentUsageID."oneX_Comm" = STRING: oneX_Comm
avCmCapacityCurrentUsageRel."AgentSC" = STRING: *
avCmCapacityCurrentUsageRel."IP_Soft" = STRING: *
avCmCapacityCurrentUsageRel."IP_Supv" = STRING: *
avCmCapacityCurrentUsageRel."IP_API_A" = STRING: *
avCmCapacityCurrentUsageRel."IP_Agent" = STRING: *
avCmCapacityCurrentUsageRel."IP_Phone" = STRING: *
avCmCapacityCurrentUsageRel."IP_ROMax" = STRING: *
avCmCapacityCurrentUsageRel."IP_eCons" = STRING: *
avCmCapacityCurrentUsageRel."IP_NonAgt" = STRING: *
avCmCapacityCurrentUsageRel."oneX_Comm" = STRING: *
avCmCapacityCurrentUsageUsed."AgentSC" = INTEGER: 0
avCmCapacityCurrentUsageUsed."IP_Soft" = INTEGER: 0
