Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListMemTrunk
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmListMemTrunk
|
enterprises 6889.2.73.8.1.24
|
Scalar/Table
|
Description
The avCmListMemTrunk MIB Group displays the output of the list member trunk command up to the first 500 members of groups.
Releases Supported
6.3.100 and later
Polling Type
Configuration
Polling Interval
No more than once a day or when trunk members are added.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
This OID retrieves up to first 500 trunk members administered system-wide. For example, if trunk group 1 has more than 500 members, this OID never returns the list of members in trunk groups other than trunk group 1.
Similarly, if trunk group 1 has 250 members and trunk 2 has 250 members, this OID never returns the trunk group members in groups other than 1 or 2. This limitation is created because of the occupancy problems when trying to retrieve more trunk members. To get data on other trunk group members use the avCmListMemTrunkRange OID.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmListMemTrunk
|
SAT
|
list trunk
|

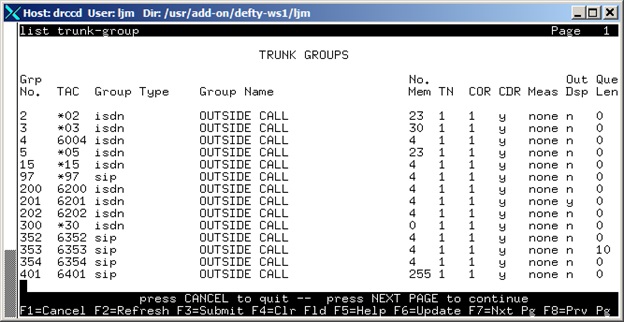

TRUNK GROUPS
|
|
SAT
|
list member trunk
|
TRUNK GROUP MEMBERS
|
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
-
No special permissions needed.
-
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmListMemTrunkGrp
|
.1
|
n/a
|
Integer32 (0..2000)
|
n/a
|
An object that contains the trunk group.
|
|
avCmListMemTrunkTable
|
.2
|
n/a
|
SEQUENCE OF avCmListMemTrunkTable
|
n/a
|
An object that contains a list of the avCmListMemTrunk entries.
|
|
avCmListMemTrunkEntry
|
.3.1
|
n/a
|
avCmListMemTrunkTable
|
n/a
|
An object that contains a avCmListMemTrunk entry containing objects of the avCmListMemTrunk information sent by the switch.
|
|
avCmListMemTrunkIdx
|
.3.1.1
|
n/a
|
Integer32 (0..2000)
|
n/a
|
An object that contains an index into the Trunk Group.
|
|
avCmListMemTrunkMemberIdx
|
.3.1.2
|
n/a
|
Integer32 (0..255)
|
List Command: Member No.
Display Command: Member No.
|
An object that contains an index that contains the Member No. for the Trunk Group Port.
|
|
avCmListMemTrunkMemMember
|
.3.1.3
|
R
|
Integer32 (0..255)
|
List Command: Member No.
Display Command: Member No.
|
An object that contains an index that contains the Member No. for the Trunk Group Port.
|
|

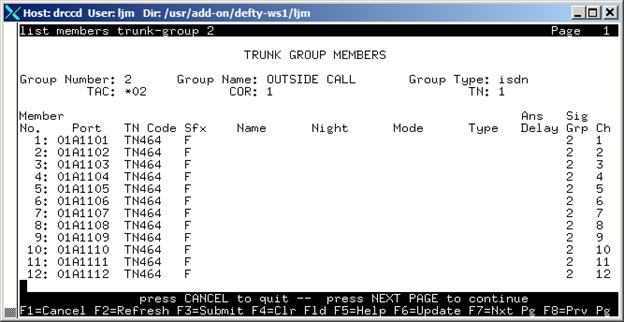

TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkPort
|
.3.1.4
|
R
|
SnmpAdminString (SIZE (0..10))
|
Miscellaneous Extensions
|
An object that contains the trunk member port.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkName
|
.3.1.5
|
R
|
SnmpAdminString (SIZE (0..11))
|
Name
|
An object containing the name assigned to the member.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkType
|
.3.1.6
|
R
|
SnmpAdminString (SIZE (0..8))
|
Type
|
An object containing the trunk group member type.
|
|
TRUNK GROUP MEMBERS
|
|||||
|
avCmListMemTrunkSigGrp
|
.3.1.7
|
R
|
Integer32 (0..999)
|
Signaling Group
|
An object containing the signaling group of the SIP trunk group.
|
|
TRUNK GROUP MEMBERS
|
Sample output of forms
Sample Output of SNMP Walk command:
init@kenny1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListMemTrunk
avCmListMemTrunkMemMember.2.1 = INTEGER: 1
avCmListMemTrunkMemMember.2.2 = INTEGER: 2
:
:
avCmListMemTrunkMemMember.604.2 = INTEGER: 2
avCmListMemTrunkPort.2.1 = STRING: 01A1101
avCmListMemTrunkPort.2.2 = STRING: 01A1102
:
:
vCmListMemTrunkPort.604.2 = STRING: 02A0502
avCmListMemTrunkName.2.1 = STRING:
avCmListMemTrunkName.2.2 = STRING:
:
:
avCmListMemTrunkName.604.2 = STRING:
avCmListMemTrunkType.2.1 = STRING:
avCmListMemTrunkType.2.2 = STRING:
:
:
avCmListMemTrunkType.604.2 = STRING:
avCmListMemTrunkSigGrp.2.1 = INTEGER: 2
avCmListMemTrunkSigGrp.2.2 = INTEGER: 2
:
:
avCmListMemTrunkSigGrp.604.2 = INTEGER: 604
