Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListAnn
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmListAnn Group
|
enterprises.6889.2.73.8.1.54
|
Table
|
Description
The avCmListAnn Group MIB Group uses the "list announcement" command to retrieve announcement data.
Releases Supported
6.3.100 and later
Polling Type
Inventory
Polling Interval
Not more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmListAnn Group
|
SAT
|
list announcement
|
ANNOUNCEMENTS/AUDIO SOURCES
|
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmListAnnTable
|
.1
|
n/a
|
SEQUENCE OF AvCmListAnnEntry
|
n/a
|
A list of the avCmListAnn entries
|
|
avCmListAnnEntry
|
.1.1
|
n/a
|
AvCmListAnnEntry
|
n/a
|
A avCmListAnn entry containing objects of the avCmListAnn information sent by the switch.
|
|
avCmListAnnExtIdx
|
.1.1.1
|
n/a
|
SnmpAdminString (SIZE (0..41))
|
n/a
|
An object that identifies each increment of data.
|
|
avCmListAnnExtension
|
.1.1.2
|
R
|
SnmpAdminString (SIZE (0..41))
|
Extension
|
An object containing the extension of the announcement.
|
|
ANNOUNCEMENTS/AUDIO SOURCES
|
|||||
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..41))
|
Type
|
An object containing the type of announcement.
|
|
|
ANNOUNCEMENTS/AUDIO SOURCES
|
|||||
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..41))
|
Name
|
An object containing the name of the announcement.
|
|
|
ANNOUNCEMENTS/AUDIO SOURCES
|
|||||
|
.1.1.5
|
R
|
SnmpAdminString (SIZE (0..41))
|
Source
|
An object containing the source of the announcement.
|
|
|
ANNOUNCEMENTS/AUDIO SOURCES
|
|||||
|
.1.1.6
|
R
|
SnmpAdminString (SIZE (0..41))
|
Num of Files
|
An object containing the number of files.
|
|
|
ANNOUNCEMENTS/AUDIO SOURCES
|

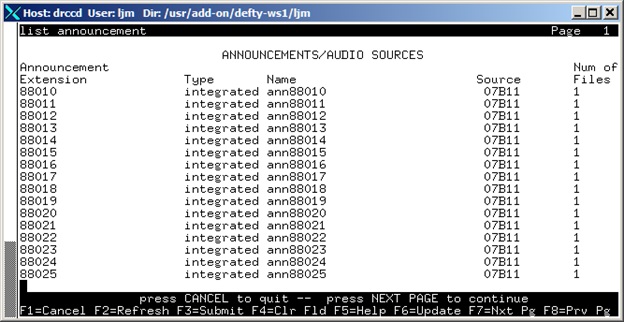

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListAnn
avCmListAnnExtension."88010" = STRING: 88010
avCmListAnnExtension."88011" = STRING: 88011
:
:
avCmListAnnExtension."88041" = STRING: 88041
avCmListAnnType."88010" = STRING: integrated
avCmListAnnType."88011" = STRING: integrated
:
:
avCmListAnnType."88041" = STRING: integ-mus
avCmListAnnName."88010" = STRING: ann88010
avCmListAnnName."88011" = STRING: ann88011
:
:
avCmListAnnName."88041" = STRING: ann88041
avCmListAnnSource."88010" = STRING: 07B11
avCmListAnnSource."88011" = STRING: 07B11
:
:
avCmListAnnSource."88041" = STRING: 004V9
avCmListAnnNumFiles."88010" = INTEGER: 1
avCmListAnnNumFiles."88011" = INTEGER: 1
:
:
avCmListAnnNumFiles."88041" = INTEGER: 1
