Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListNodeNamesV4
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmListNodeNamesV4 Group
|
enterprises.6889.2.73.8.1.52
|
Table
|
Description
The avCmListNodeNamesV4 Group MIB Group uses the "list node-names v4" command to retrieve IPV4 address node name data.
Releases Supported
6.3.100 and later
Polling Type
Inventory
Polling Interval
No more than every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Time-out should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmListNodeNamesV4 Group
|
SAT
|
list node-names v4
|
NODE NAMES
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmListNodeNamesV4Table
|
.1
|
R
|
SEQUENCE OF AvCmListNodeNamesV4Entry
|
n/a
|
A list of the avCmListNodeNamesV4 entries.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmListNodeNamesV4Entry
|
.1.1
|
R
|
AvCmListNodeNamesV4Entry
|
n/a
|
A avCmListNodeNamesV4 entry containing objects of the avCmListNodeNamesV4 information sent by the switch..
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityCallVecMeetMeVdnUsed
|
.1.1.1
|
R
|
SnmpAdminString (SIZE (0..16))
|
n/a
|
An object that identifies each increment of data..
|
|
avCmCapacityHuntGrpsSpSkSysLim
|
.1.1.2
|
R
|
SnmpAdminString (SIZE (0..16))
|
Name
|
An object containing the Name of the node.
|
|
NODE NAMES
|
|||||
|
avCmCapacityHuntGrpsAdmLogAgtUsed
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..6))
|
Type
|
An object containing the type of node name.
|
|
NODE NAMES
|
|||||
|
avCmListNodeNamesV4IPAddress
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..41))
|
IP Address
|
An object containing either an IPV4 or IPV6 IP Address.
|
|
NODE NAMES
|

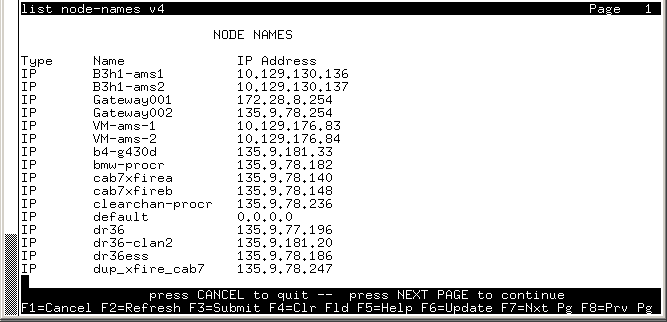

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListNodeNamesV4
avCmListNodeNamesV4Name."dr36" = STRING: dr36
avCmListNodeNamesV4Name."hardy" = STRING: hardy
:
:
avCmListNodeNamesV4Name."clearchan-procr" = STRING: clearchan-procr
avCmListNodeNamesV4Type."dr36" = STRING: IP
avCmListNodeNamesV4Type."hardy" = STRING: IP
:
:
avCmListNodeNamesV4Type."clearchan-procr" = STRING: IP
avCmListNodeNamesV4IPAddress."dr36" = STRING: 135.9.77.196
avCmListNodeNamesV4IPAddress."hardy" = STRING: 135.9.78.202
:
:
avCmListNodeNamesV4IPAddress."clearchan-procr" = STRING: 135.9.78.236
