Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListIntegAnn
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmListIntegAnn
|
enterprises.6889.2.73.8.1.63
|
Table
|
Description
The avCmListIntegAnn MIB group displays the information of all the integrated announcements.
Releases Supported
6.3.100 and later
Polling Type
Inventory and Configuration
Polling Interval
Not more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmListIntegAnn
|
SAT
|
list integrated-annc-boards
|
INTEGRATED ANNOUNCEMENTS
|
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmListIntegAnnTable
|
.1
|
n/a
|
SEQUENCE OF AvCmListIntegAnnEntry
|
n/a
|
An object containing the avCmListIntegAnn entries.
|
|
|
|||||
|
avCmListIntegAnnEntry
|
.1.1
|
n/a
|
AvCmListIntegAnnEntry
|
n/a
|
An object containing the avCmListIntegAnn entry with the information that the switch sent.
|
|
|
|||||
|
avCmListIntegAnnIdx
|
.1.1.1
|
n/a
|
SnmpAdminString (SIZE (0..6))
|
n/a
|
An object that uniquely identifies each increment of data.
|
|
|
|||||
|
avCmListIntegAnnIntIdx
|
.1.1.2
|
n/a
|
SnmpAdminString (SIZE (0..4))
|
n/a
|
An object that uniquely identifies each increment of data.
|
|
|
|||||
|
avCmListIntegAnnSource
|
.1.1.3
|
n/a
|
SnmpAdminString (SIZE (0..6))
|
Source
|
An object containing the announcement source location.
|
|
INTEGRATED ANNOUNCEMENTS
|
|||||
|
avCmListIntegAnnTimeRem
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..3))
|
Time remaining at
|
An object containing the run rate of the announcements.
|
|
INTEGRATED ANNOUNCEMENTS
|
|||||
|
avCmListIntegAnnKbps
|
.1.1.5
|
R
|
SnmpAdminString (SIZE (0..6))
|
kbps
|
An object containing the kilobytes per second of the announcements.
|
|
INTEGRATED ANNOUNCEMENTS
|
|||||
|
avCmListIntegAnnIntNum
|
.1.1.6
|
R
|
SnmpAdminString (SIZE (0..4))
|
Internal Number
|
An object containing the internal number of the announcement.
|
|
INTEGRATED ANNOUNCEMENTS
|
|||||
|
avCmListIntegAnnGrpNum
|
.1.1.7
|
R
|
SnmpAdminString (SIZE (0..3))
|
Group Number
|
An object containing the audio group number of the announcement.
|
|
INTEGRATED ANNOUNCEMENTS
|
|||||
|
avCmListIntegAnnExtension
|
.11.8
|
R
|
SnmpAdminString (SIZE (0..17))
|
Extension
|
An object containing the announcement extension.
|
|
INTEGRATED ANNOUNCEMENTS
|
|||||
|
avCmListIntegAnnName
|
.1.1.9
|
R
|
SnmpAdminString (SIZE (0..29))
|
Name
|
An object containing the name of the announcement.
|
|
INTEGRATED ANNOUNCEMENTS
|
|||||
|
avCmListIntegAnnLength
|
.1.1.10
|
R
|
Integer32 (0..99999)
|
Length
|
An object containing the length of the announcement in seconds.
|
|
INTEGRATED ANNOUNCEMENTS
|
|||||
|
avCmListIntegAnnSize
|
.1.1.11
|
R
|
Integer32 (0..99999)
|
Size
|
An object containing the size of the announcement in kilobytes.
|
|
INTEGRATED ANNOUNCEMENTS
|

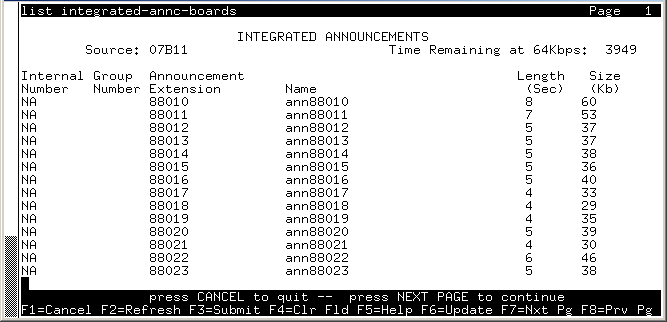

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmListIntegAnn
avCmListIntegAnnSource."004V9"."NA" = STRING: 004V9
avCmListIntegAnnSource."07B11"."NA" = STRING: 07B11
avCmListIntegAnnTimeRem."004V9"."NA" = STRING: 64
avCmListIntegAnnTimeRem."07B11"."NA" = STRING: 64
avCmListIntegAnnKbps."004V9"."NA" = STRING: 2811
avCmListIntegAnnKbps."07B11"."NA" = STRING: 3949
avCmListIntegAnnIntNum."004V9"."NA" = STRING: NA
avCmListIntegAnnIntNum."07B11"."NA" = STRING: NA
avCmListIntegAnnGrpNum."004V9"."NA" = STRING:
avCmListIntegAnnGrpNum."07B11"."NA" = STRING:
avCmListIntegAnnExtension."004V9"."NA" = STRING: 88040
avCmListIntegAnnExtension."07B11"."NA" = STRING: 88010
avCmListIntegAnnName."004V9"."NA" = STRING: ann88040
avCmListIntegAnnName."07B11"."NA" = STRING: ann88010
avCmListIntegAnnLength."004V9"."NA" = INTEGER: 7
avCmListIntegAnnLength."07B11"."NA" = INTEGER: 8
avCmListIntegAnnSize."004V9"."NA" = INTEGER: 53
avCmListIntegAnnSize."07B11"."NA" = INTEGER: 6
