Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListNodeNamesAll
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmListNodeNamesAll Group
|
enterprises.6889.2.73.8.1.51
|
Table
|
Description
The avCmListNodeNamesAll MIB Group uses "list node-names all" command retrieve node name data.
Releases Supported
6.3.100 and later
Polling Type
Configuration
Performance/Utilization
Polling Interval
No more than every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Time-out should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmListNodeNamesAll Group
|
SAT
|
list node-names all
|
NODE NAMES
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmListNodeNamesAllTable
|
.1
|
R
|
SEQUENCE OF AvCmListNodeNamesAllEntry
|
Groups/Splits/Skills
|
An object that contains the number of available Groups/Splits/Skills.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmListNodeNamesAllEntry
|
.1.1
|
R
|
AvCmListNodeNamesAllEntry
|
Groups/Splits/Skills
|
An object that contains the system limit of Groups/Splits/Skills.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmListNodeNamesAllNameIdx
|
.1.1.1
|
R
|
SnmpAdminString (SIZE (0..16))
|
Administered Logical Agents
|
An object that contains the number of used administered logical agents.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmListNodeNamesAllName
|
.1.1.2
|
R
|
SnmpAdminString (SIZE (0..16))
|
Administered Logical Agents
|
An object that contains the number of available administered logical agents.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmListNodeNamesAllType
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..6))
|
Administered Logical Agents
|
An object that contains the system limit of administered logical agents.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmListNodeNamesAllIPAddress
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..41))
|
Administered Logical Agent-Skill Pairs
|
An object that contains the number of used administered logical agent-skill pairs.
|
|
SYSTEM CAPACITY
|

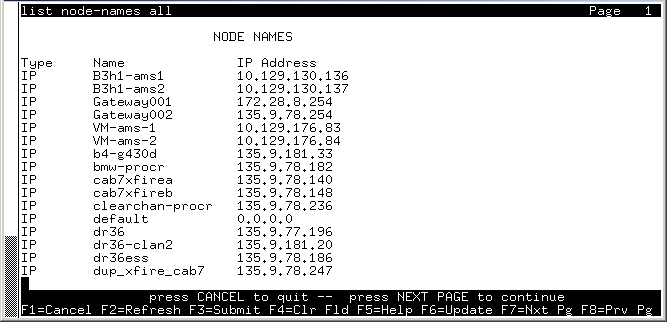

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListNodeNamesAll
avCmListNodeNamesAllName."dr36" = STRING: dr36
avCmListNodeNamesAllName."hardy" = STRING: hardy
:
:
avCmListNodeNamesAllName."clearchan-procr" = STRING: clearchan-procr
avCmListNodeNamesAllType."dr36" = STRING: IP
avCmListNodeNamesAllType."hardy" = STRING: IP
:
:
avCmListNodeNamesAllType."clearchan-procr" = STRING: IP
avCmListNodeNamesAllIPAddress."dr36" = STRING: 135.9.77.196
avCmListNodeNamesAllIPAddress."hardy" = STRING: 135.9.78.202
:
:
avCmListNodeNamesAllIPAddress."clearchan-procr" = STRING: 135.9.78.236
