avCmMeasIpVoStatSumRtdelYest

Last Updated : Jul 13, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmMeasIpVoStatSumRtdelYest
enterprises.6889.2.73.8.1.76
Table

Description

The avCmMeasIpVoStatSumRtdelYest MIB group displays the packet delay recorded during calls in the previous day for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization

Polling Interval

No more than once an hour.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmMeasIpVoStatSumRtdelYest
SAT
list measurements ip voice-stats rtdelay last-hour
IP VOICE STATISTICS SUMMARY RTDELAY REPORT

Reference Document

A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed. The default super user can run this command.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmMeasIpVoStatSumRtdelYestTable
.1
n/a
SEQUENCE OF avCmMeasIpVoStatSumRtdelYestEntry
n/a
An object containing the avCmMeasIpVoStatSumRtdelYest entries.
avCmMeasIpVoStatSumRtdelYestEntry
.1.1
n/a
avCmMeasIpVoStatSumRtdelYestEntry
n/a
An object containing the avCmMeasIpVoStatSumRtdelYest entry with the information that the switch sent.
avCmMeasIpVoStatSumRtdelYestRegIdx
.1.1.1
n/a
Integer32 (1..2000)
n/a
An index in the network region.
avCmMeasIpVoStatSumRtdelYestHourIdx
.1.1.2
n/a
Integer32 (1..2300)
n/a
An index containing the measurements of the packet loss voice statistics in the 24-hour format.
avCmMeasIpVoStatSumRtdelYestHourIdx
.1.1.3
n/a
Integer32 (1..9999)
n/a
An index containing the measurements of the packet loss voice statistics in the 24-hour format.
avCmMeasIpVoStatSumRtdelYestRegion
.1.1.4
R
Integer32 (1..2000)
List Command: Region
An object containing the network region.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestMeasHour
.1.1.5
R
Integer32 (1..2300)
Measurement Hour
An object that containing the measurement hour.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestRunTime
.1.1.6
R
SnmpAdminString (SIZE (0..28))
Date
An object containing the date
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestBoardLoc
.1.1.7
R
SnmpAdminString (SIZE (0..6))
Board Loc
An object containing the board location.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestCallingNum
.1.1.8
R
SnmpAdminString (SIZE (0..17))
Calling Number
An object containing the calling number.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestCalledNum
.1.1.9
R
SnmpAdminString (SIZE (0..17))
Called Number
An object containing the called number.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestDstReg
.1.1.10
R
Integer32 (0..9999)
Pkt Size
An object containing the packet size of each data stream in milliseconds.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestDstReg
.1.1.11
R
Integer32 (0..9999)
Dst Reg
An object containing the destination region.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestCodec
.1.1.12
R
SnmpAdminString (SIZE (0..58))
Codec
An object containing the codec used for the call.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestAvg
.1.1.13
R
Integer32 (0..9999)
RT-Delay Avg
An object containing the average two-way packet delay in milliseconds.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestPeak
.1.1.14
R
Integer32 (0..999)
RT-Delay Peak
An object containing the peak two-way packet delay during a call.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestTimeCall
.1.1.15
R
SnmpAdminString (SIZE (0..5))
Time of Call
An object containing the timestamp when the threshold was exceeded. The timestamp is displayed in the MMSS (minutes seconds) format..
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestDataCallr
.1.1.16
R
SnmpAdminString (SIZE (0..2))
Data Call
An object containing the indication of a data call.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestEncryp
.1.1.17
R
SnmpAdminString (SIZE (0..2))
Encryp
An object containing the status of encryption during a call.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestEC
.1.1.18
R
SnmpAdminString (SIZE (0..2))
EC
An object containing the status of echo cancellation during a call.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT
avCmMeasIpVoStatSumRtdelYestFEAddr
.1.1.19
R
SnmpAdminString (SIZE (0..41))
FE-Addr
An object containing the far-end IP address.
IP VOICE STATISTICS SUMMARY RTDELAY REPORT

Sample output of forms

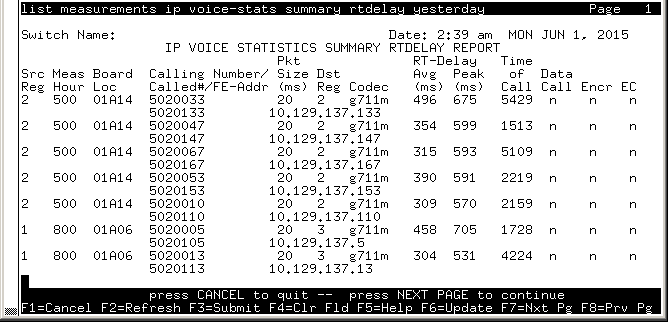

avCmMeasIpVoStatSumRtdelYest - IP VOICE STATISTICS SUMMARY RTDELAY REPORT

Sample Output of SNMP Walk command:

server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatSumRtdelYest
avCmMeasIpVoStatSumRtdelYestRegion.1.800.1 = INTEGER: 1
avCmMeasIpVoStatSumRtdelYestRegion.1.800.2 = INTEGER: 1
:
:
avCmMeasIpVoStatSumRtdelYestRegion.3.500.5 = INTEGER: 3
avCmMeasIpVoStatSumRtdelYestMeasHour.1.800.1 = INTEGER: 800
avCmMeasIpVoStatSumRtdelYestMeasHour.1.800.2 = INTEGER: 800
:
:
avCmMeasIpVoStatSumRtdelYestMeasHour.3.500.5 = INTEGER: 500
avCmMeasIpVoStatSumRtdelYestRunTime.1.800.1 = STRING: 2:36 am MON JUN 1, 2015
avCmMeasIpVoStatSumRtdelYestRunTime.1.800.2 = STRING: 2:36 am MON JUN 1, 2015
:
:
avCmMeasIpVoStatSumRtdelYestRunTime.3.500.5 = STRING: 2:36 am MON JUN 1, 2015
avCmMeasIpVoStatSumRtdelYestBoardLoc.1.800.1 = STRING: 01A06
avCmMeasIpVoStatSumRtdelYestBoardLoc.1.800.2 = STRING: 01A06
:
:
avCmMeasIpVoStatSumRtdelYestBoardLoc.3.500.5 = STRING: 01A03
avCmMeasIpVoStatSumRtdelYestCallingNum.1.800.1 = STRING: 5020005
avCmMeasIpVoStatSumRtdelYestCallingNum.1.800.2 = STRING: 5020013
:
:
avCmMeasIpVoStatSumRtdelYestCallingNum.3.500.5 = STRING: 5020049
avCmMeasIpVoStatSumRtdelYestCalledNum.1.800.1 = STRING: 5020105
avCmMeasIpVoStatSumRtdelYestCalledNum.1.800.2 = STRING: 5020113
:
:
avCmMeasIpVoStatSumRtdelYestCalledNum.3.500.5 = STRING: 5020149
avCmMeasIpVoStatSumRtdelYestPktSize.1.800.1 = INTEGER: 20
avCmMeasIpVoStatSumRtdelYestPktSize.1.800.2 = INTEGER: 20
:
:
avCmMeasIpVoStatSumRtdelYestPktSize.3.500.5 = INTEGER: 20
avCmMeasIpVoStatSumRtdelYestDstReg.1.800.1 = INTEGER: 3
avCmMeasIpVoStatSumRtdelYestDstReg.1.800.2 = INTEGER: 3
:
:
avCmMeasIpVoStatSumRtdelYestDstReg.3.500.5 = INTEGER: 3
avCmMeasIpVoStatSumRtdelYestCodec.1.800.1 = STRING: g711m
avCmMeasIpVoStatSumRtdelYestCodec.1.800.2 = STRING: g711m
:
:
avCmMeasIpVoStatSumRtdelYestCodec.3.500.5 = STRING: g711m
avCmMeasIpVoStatSumRtdelYestAvg.1.800.1 = INTEGER: 458
avCmMeasIpVoStatSumRtdelYestAvg.1.800.2 = INTEGER: 304
:
:
avCmMeasIpVoStatSumRtdelYestAvg.3.500.5 = INTEGER: 221
avCmMeasIpVoStatSumRtdelYestPeak.1.800.1 = INTEGER: 705
avCmMeasIpVoStatSumRtdelYestPeak.1.800.2 = INTEGER: 531
:
:
avCmMeasIpVoStatSumRtdelYestPeak.3.500.5 = INTEGER: 419
avCmMeasIpVoStatSumRtdelYestTimeCall.1.800.1 = STRING: 1728
avCmMeasIpVoStatSumRtdelYestTimeCall.1.800.2 = STRING: 4224
:
:
avCmMeasIpVoStatSumRtdelYestTimeCall.3.500.5 = STRING: 0620
avCmMeasIpVoStatSumRtdelYestDataCall.1.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelYestDataCall.1.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelYestDataCall.3.500.5 = STRING: n
avCmMeasIpVoStatSumRtdelYestEncryp.1.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelYestEncryp.1.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelYestEncryp.3.500.5 = STRING: n
avCmMeasIpVoStatSumRtdelYestEC.1.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelYestEC.1.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelYestEC.3.500.5 = STRING: y
avCmMeasIpVoStatSumRtdelYestFEAddr.1.800.1 = STRING: 10.129.137.5
avCmMeasIpVoStatSumRtdelYestFEAddr.1.800.2 = STRING: 10.129.137.13
:
:
avCmMeasIpVoStatSumRtdelYestFEAddr.3.500.5 = STRING: 10.129.137.49
