Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmCapacityVoiceTerm
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmCapacityVoiceTerm
|
enterprises.6889.2.73.8.1.19
|
Scalar
|
Description
The avCmCapacityVoiceTerm MIB Group uses the display capacity command to retrieve the Station capacity information under the Trunks capacity section of the SYSTEM CAPACITY form.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
No more than once every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmCapacityVoiceTerm
|
SAT
|
display capacity
|
SYSTEM CAPACITY
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmCapacityVoiceTermStatWithPtUsed
|
.1
|
R
|
Integer32 (0..99999)
|
Stations With Port
|
An object that contains the number of used station with ports.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityVoiceTermStatWithPtAvail
|
.2
|
R
|
Integer32 (0..99999)
|
Stations With Port
|
An object that contains the number of available station with ports.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityVoiceTermStatWithPtSysLim
|
.3
|
R
|
Integer32 (0..99999)
|
Stations With Port
|
An object that contains the system limit of station with ports.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityVoiceTermTTIportsUsed
|
.4
|
n/a
|
Integer32 (0..99999)
|
DS1 With Echo Cancellation
|
An object that contains the number of used DS1 With Echo Cancellation.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityVoiceTermTTIportsAvail
|
.5
|
R
|
Integer32 (0..99999)
|
DS1 With Echo Cancellation
|
An object that contains the number of available DS1 With Echo Cancellation.
|
|
SYSTEM CAPACITY
|
|||||
|
avCmCapacityVoiceTermTTIportsSysLim
|
.6
|
R
|
Integer32 (0..99999)
|
DS1 With Echo Cancellation
|
An object that contains the system limit of DS1 With Echo Cancellation.
|
|
SYSTEM CAPACITY
|

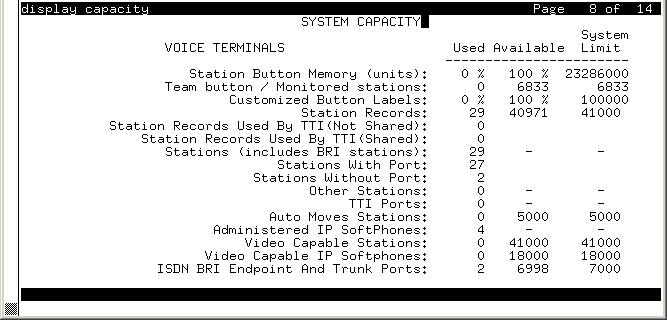

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmCapacityVoiceTerm
avCmCapacityVoiceTermStatWithPtUsed.0 = INTEGER: 27
avCmCapacityVoiceTermStatWithOutPtUsed.0 = INTEGER: 2
avCmCapacityVoiceTermOtherStatUsed.0 = INTEGER: 0
avCmCapacityVoiceTermTTIportsUsed.0 = INTEGER: 0
avCmCapacityVoiceTermAdmIPSoftUsed.0 = INTEGER: 4
avCmCapacityVoiceTermVidCapStatUsed.0 = INTEGER: 0
avCmCapacityVoiceTermVidCapStatAvail.0 = INTEGER: 41000
avCmCapacityVoiceTermVidCapStatSysLim.0 = INTEGER: 41000
avCmCapacityVoiceTermVidCapSoftUsed.0 = INTEGER: 0
avCmCapacityVoiceTermVidCapSoftAvail.0 = INTEGER: 18000
avCmCapacityVoiceTermVidCapSoftSysLim.0 = INTEGER: 18000
avCmCapacityVoiceTermBRIEndTrkPtsUsed.0 = INTEGER: 2
avCmCapacityVoiceTermBRIEndTrkPtsAvail.0 = INTEGER: 6998
avCmCapacityVoiceTermBRIEndTrkPtsSysLim.0 = INTEGER: 7000
