Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListSurvProcess
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmListSurvProcess Group
|
enterprises.6889.2.73.8.1.49
|
Table
|
Description
The avCmListSurvProcess MIB Group uses the list survivable-processor command to retrieve survivable-processor data.
Releases Supported
6.3.100 and later
Polling Type
Inventory
Polling Interval
Not more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmListSurvProcess Group
|
SAT
|
list survivable-processor
|
SURVIVABLE PROCESSORS
|
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmListSurvProcessTable
|
.1
|
n/a
|
SEQUENCE OF AvCmListSurvProcessEntry
|
n/a
|
A list of the avCmListSurvProcess entries
|
|
avCmListSurvProcessEntry
|
.1.1
|
n/a
|
Integer32 (0..9999)
|
n/a
|
A avCmListSurvProcess entry containing objects of the avCmListSurvProcess information sent by the switch.
|
|
avCmListSurvProcessNumIdx
|
.1.1.1
|
n/a
|
Integer32 (0..9999)
|
n/a
|
An object that identifies each increment of data.
|
|
a
|
|||||
|
avCmListSurvProcessNumber
|
.1.1.2
|
R
|
Integer32 (0..9999)
|
Number
|
An object that contains the record number.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmListSurvProcessName
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..16))
|
Name
|
An object containing the name of the survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmListSurvProcessType
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..6))
|
Type
|
An object containing the type of survivable processor.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmListSurvProcessReg
|
.1.1.5
|
R
|
SnmpAdminString (SIZE (0..2))
|
Reg
|
An object containing whether the survivable processor is registered.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmListSurvProcessAc
|
.1.1.6
|
R
|
SnmpAdminString (SIZE (0..2))
|
Act
|
An object containing whether the survivable processor is active.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmListSurvProcessTransUpdated
|
.1.1.7
|
R
|
SnmpAdminString (SIZE (0..18))
|
Translations Updated
|
An object containing when the survivable processor translations were last updated.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmListSurvProcessNetRgn
|
.1.1.8
|
R
|
SnmpAdminString (SIZE (0..9999))
|
Net Rgn
|
An object containing the network region the survivable processor is using.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmListSurvProcessIpAddress
|
.1.1.9
|
R
|
SnmpAdminString (SIZE (0..41))
|
IP Address
|
An object containing the IP address the survivable processor is using.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmListSurvProcessIPV6Name
|
.1.1.10
|
R
|
SnmpAdminString (SIZE (0..16))
|
IPV6 Address
|
An object containing the Name of the IPV6 address the survivable processor is using.
|
|
SURVIVABLE PROCESSORS
|
|||||
|
avCmListSurvProcessIPV6Address
|
.1.1.11
|
R
|
SnmpAdminString (SIZE (0..41))
|
IPV6 Address
|
An object containing the IPV6 address the survivable processor is using.
|
|
SURVIVABLE PROCESSORS
|

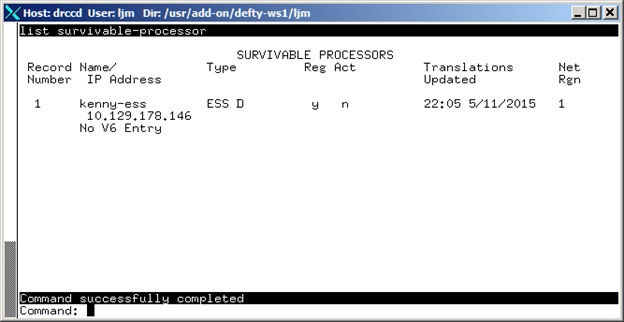

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -v 2c -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmListSurvProcess
AVAYA-AURA-CM-MIB::avCmListSurvProcessNumber.1 = INTEGER: 1
AVAYA-AURA-CM-MIB::avCmListSurvProcessName.1 = STRING: kenny-ess
AVAYA-AURA-CM-MIB::avCmListSurvProcessType.1 = STRING: ESS D
AVAYA-AURA-CM-MIB::avCmListSurvProcessReg.1 = STRING: y
AVAYA-AURA-CM-MIB::avCmListSurvProcessAct.1 = STRING: n
AVAYA-AURA-CM-MIB::avCmListSurvProcessTransUpdated.1 = STRING: 10:04 6/24/2015
AVAYA-AURA-CM-MIB::avCmListSurvProcessNetRgn.1 = INTEGER: 1
AVAYA-AURA-CM-MIB::avCmListSurvProcessIpAddress.1 = STRING: 10.129.178.146
AVAYA-AURA-CM-MIB::avCmListSurvProcessIPV6Name.1 = STRING: No V6 Entry
AVAYA-AURA-CM-MIB::avCmListSurvProcessIPV6Address.1 = STRING:
