Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasIpVoStatHrRtDel
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmMeasIVoStatHrRtdel
|
enterprises.6889.2.73.8.1.66
|
Table
|
Description
The avCmMeasIpVoStatHrRtdel MIB group displays the hourly packet delay during calls for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmMeasIpVoStatHrRtdel
|
SAT
|
list measurements ip voice-stats hourly rtdelay
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed. The default super user can run this command.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmMeasIpVoStatHrRtdelTable
|
.1
|
n/a
|
SEQUENCE OF AvCmMeasIpVoStatHrRtdelEntry
|
n/a
|
An object containing the avCmMeasIpVoStatHrRtdelentries.
|
|
|
|||||
|
avCmMeasIpVoStatHrRtdelEntry
|
.1.1
|
n/a
|
AvCmMeasIpVoStatHrRtdelEntry
|
n/a
|
An object containing the avCmMeasIpVoStatHrRtdel entry with the information that the switch sent.
|
|
|
|||||
|
avCmMeasIpVoStatHrRtdelRegIdx
|
.1.1.1
|
n/a
|
Integer32 (0..2300)
|
n/a
|
An index in the network region.
|
|
|
|||||
|
avCmMeasIpVoStatHrRtdelHourIdx
|
.1.1.2
|
n/a
|
Integer32 (0..2300)
|
n/a
|
An index that contains the measurements of the packet loss voice statistics in the 24-hour format.
|
|
|
|||||
|
avCmMeasIpVoStatHrRtdelIdx
|
.1.1.3
|
n/a
|
Integer32 (0..9999)
|
n/a
|
A unique index for the packet loss voice statistics.
|
|
|
|||||
|
avCmMeasIpVoStatHrRtdelRegion
|
.1.1.4
|
R
|
Integer32 (0..2000)
|
List Command: Region
|
An object containing the network region.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelMeasHour
|
.1.1.5
|
R
|
Integer32 (0..2300)
|
Measurement Hour
|
An object that containing the measurement hour.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelRunTime
|
.1.1.6
|
R
|
SnmpAdminString (SIZE (0..28))
|
Date
|
An object containing the date.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelBoardLoc
|
.1.1.7
|
R
|
SnmpAdminString (SIZE (0..6))
|
Board Loc
|
An object containing the board location.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelCallingNum
|
.1.1.8
|
R
|
SnmpAdminString (SIZE (0..17))
|
Calling Number
|
An object containing the calling number.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelCalledNum
|
.1.1.9
|
R
|
SnmpAdminString (SIZE (0..17))
|
Called Number
|
An object containing the called number.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelCodec
|
.1.1.10
|
R
|
SnmpAdminString (SIZE (0..8))
|
Codec
|
An object containing the codec used for the call.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelPktSize
|
.1.1.11
|
R
|
Integer32 (0..999)
|
Pkt Size
|
An object containing the packet size of each data stream of the call in milliseconds.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelDstReg
|
.1.1.12
|
R
|
Integer32 (0..9999)
|
Dst Reg
|
An object containing the network region where the media processor is located.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelAvg
|
.1.1.13
|
R
|
Integer32 (0..9999)
|
RT-Delay Avg
|
An object containing the average two-way packet delay in milliseconds.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelPeak
|
.1.1.14
|
R
|
Integer32 (0..9999)
|
RT-Delay Peak
|
An object containing the peak two-way packet delay in the call.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelTimeCall
|
.1.1.15
|
R
|
SnmpAdminString (SIZE (0..5))
|
Time of Call
|
An object containing the timestamp when the threshold is exceeded in the call. The timestamp displays minutes and seconds in the MM-SS format.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelDataCall
|
.1.1.16
|
R
|
SnmpAdminString (SIZE (0..2))
|
Data Call
|
An object containing the indication of data calls.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelEncrypc
|
.1.1.17
|
R
|
SnmpAdminString (SIZE (0..2))
|
Encryp
|
An object containing the indication of media encryption.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelEC
|
.1.1.18
|
R
|
SnmpAdminString (SIZE (0..2))
|
EC
|
An object containing the status of echo cancellation.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|
|||||
|
avCmMeasIpVoStatHrRtdelFEAddr
|
.1.1.19
|
R
|
SnmpAdminString (SIZE (0..41))
|
FE-Addr
|
An object containing the far end IP address.
|
|
IP VOICE STATSTICS NETWORK REGION RTDELAY REPORT
|

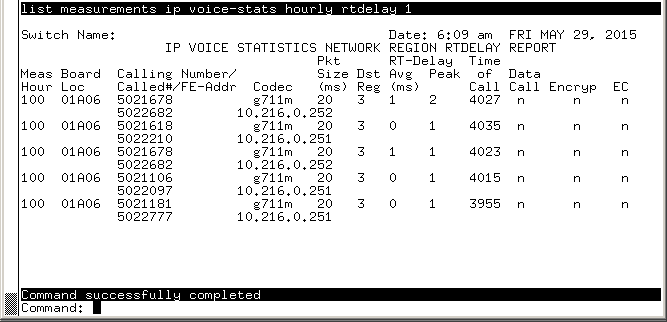

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatHrRtdel
avCmMeasIpVoStatHrRtdelRegion.1.100.1 = INTEGER: 1
avCmMeasIpVoStatHrRtdelRegion.1.100.2 = INTEGER: 1
:
:
avCmMeasIpVoStatHrRtdelRegion.3.2300.4 = INTEGER: 3
avCmMeasIpVoStatHrRtdelMeasHour.1.100.1 = INTEGER: 100
avCmMeasIpVoStatHrRtdelMeasHour.1.100.2 = INTEGER: 100
:
:
avCmMeasIpVoStatHrRtdelMeasHour.3.2300.4 = INTEGER: 2300
avCmMeasIpVoStatHrRtdelRunTime.1.100.1 = STRING: 7:28 am FRI MAY 29, 2015
avCmMeasIpVoStatHrRtdelRunTime.1.100.2 = STRING: 7:28 am FRI MAY 29, 2015
:
:
avCmMeasIpVoStatHrRtdelRunTime.3.2300.4 = STRING: 7:28 am FRI MAY 29, 2015
avCmMeasIpVoStatHrRtdelBoardLoc.1.100.1 = STRING: 01A06
avCmMeasIpVoStatHrRtdelBoardLoc.1.100.2 = STRING: 01A06
:
:
avCmMeasIpVoStatHrRtdelBoardLoc.3.2300.4 = STRING: 01A03
avCmMeasIpVoStatHrRtdelCallingNum.1.100.1 = STRING: 5021678
avCmMeasIpVoStatHrRtdelCallingNum.1.100.2 = STRING: 5021618
:
:
avCmMeasIpVoStatHrRtdelCallingNum.3.2300.4 = STRING: 5021010
avCmMeasIpVoStatHrRtdelCalledNum.1.100.1 = STRING: 5022682
avCmMeasIpVoStatHrRtdelCalledNum.1.100.2 = STRING: 5022210
:
:
avCmMeasIpVoStatHrRtdelCalledNum.3.2300.4 = STRING: 5022433
avCmMeasIpVoStatHrRtdelCodec.1.100.1 = STRING: g711m
avCmMeasIpVoStatHrRtdelCodec.1.100.2 = STRING: g711m
:
:
avCmMeasIpVoStatHrRtdelCodec.3.2300.4 = STRING: g711m
avCmMeasIpVoStatHrRtdelPktSize.1.100.1 = INTEGER: 20
avCmMeasIpVoStatHrRtdelPktSize.1.100.2 = INTEGER: 20
:
:
avCmMeasIpVoStatHrRtdelPktSize.3.2300.4 = INTEGER: 20
avCmMeasIpVoStatHrRtdelDstReg.1.100.1 = INTEGER: 3
avCmMeasIpVoStatHrRtdelDstReg.1.100.2 = INTEGER: 3
:
:
avCmMeasIpVoStatHrRtdelDstReg.3.2300.4 = INTEGER: 3
avCmMeasIpVoStatHrRtdelAvg.1.100.1 = INTEGER: 1
avCmMeasIpVoStatHrRtdelAvg.1.100.2 = INTEGER: 0
:
:
avCmMeasIpVoStatHrRtdelAvg.3.2300.4 = INTEGER: 6
avCmMeasIpVoStatHrRtdelPeak.1.100.1 = INTEGER: 2
avCmMeasIpVoStatHrRtdelPeak.1.100.2 = INTEGER: 1
:
:
avCmMeasIpVoStatHrRtdelPeak.3.2300.4 = INTEGER: 6
avCmMeasIpVoStatHrRtdelTimeCall.1.100.1 = STRING: 4027
avCmMeasIpVoStatHrRtdelTimeCall.1.100.2 = STRING: 4035
:
:
avCmMeasIpVoStatHrRtdelTimeCall.3.2300.4 = STRING: 3130
avCmMeasIpVoStatHrRtdelDataCall.1.100.1 = STRING: n
avCmMeasIpVoStatHrRtdelDataCall.1.100.2 = STRING: n
:
:
avCmMeasIpVoStatHrRtdelDataCall.3.2300.4 = STRING: n
avCmMeasIpVoStatHrRtdelEncryp.1.100.1 = STRING: n
avCmMeasIpVoStatHrRtdelEncryp.1.100.2 = STRING: n
:
:
avCmMeasIpVoStatHrRtdelEncryp.3.2300.4 = STRING: n
avCmMeasIpVoStatHrRtdelEC.1.100.1 = STRING: n
avCmMeasIpVoStatHrRtdelEC.1.100.2 = STRING: n
:
:
avCmMeasIpVoStatHrRtdelEC.3.2300.4 = STRING: y
avCmMeasIpVoStatHrRtdelFEAddr.1.100.1 = STRING: 10.216.0.252
avCmMeasIpVoStatHrRtdelFEAddr.1.100.2 = STRING: 10.216.0.251
:
:
avCmMeasIpVoStatHrRtdelFEAddr.3.2300.4 = STRING: 10.216.0.252
