avCmListTrunk Group
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmListTrunk
|
enterprises 6889.2.73.8.1.10
|
Table
|
Description
The avCmListTrunk MIB Group uses the list trunk-group command to retrieve the systems administered trunk group information. In addition to list trunk information, some fields from the display trunk-group form are displayed.
Releases Supported
6.3.100 and later
Polling Type
Inventory and Configuration
Polling Interval
No more than once a day or when trunk administration changed.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmListTrunk
|
SAT
|
list trunk-group
|
TRUNK GROUPS
|
|
SAT
|
display trunk-group
|
TRUNK_GROUPS
|
Reference Document
-
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
-
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
-
No special permissions needed.
-
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmListTrunkTable
|
.1
|
n/a
|
SEQUENCE OF avCmListTrunkTable
|
n/a
|
A list of the avCmListTrunk entries.
|
|
avCmListTrunkEntry
|
.1.1
|
n/a
|
avCmListTrunkEntry
|
n/a
|
A avCmListTrunk entry containing objects of the avCmListTrunk information sent by the switch.
|
|
avCmListTrunkIdx
|
.1.1.1
|
n/a
|
Integer32 (0..2000)
|
n/a
|
An object that uniquely identifies each Trunk Group.
|
|
avCmListTrunkGrpNumber
|
.1.1.2
|
R
|
Integer32 (0..2000)
|
n/a
|
An object that uniquely identifies each Trunk Group.
|
|
TRUNK GROUPS
|
|||||
|
avCmListTrunkGrpType
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..14))
|
Board Number
|
List Command: Does not display this field. Display Command: Service Type
|
|
TRUNK GROUPS
|
|||||
|
avCmListTrunkGrpName
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..28))
|
Board Type
|
List Command: Does not display this field. Display Command: Comm Type
|
|
TRUNK GROUPS
|
|||||
|
avCmListTrunkTAC
|
.1.1.5
|
R
|
SnmpAdminString (SIZE (0..5))
|
Code
|
List Command: Does not display this field. Display Command: Trunk Type
|
|
TRUNK GROUPS
|
|||||
|
avCmListTrunkDirection
|
.1.1.6
|
R
|
SnmpAdminString (SIZE (0..9))
|
List Command: Does not display this field. Display Command: Direction
|
An object that contains the trunk group direction.
|
|
TRUNK GROUP
|
|||||
|
avCmListTrunkServiceType
|
.1.1.7
|
R
|
SnmpAdminString (SIZE (0..16))
|
List Command: Does not display this field. Display Command: Service Type
|
An object that contains the Service Type of the Trunk Group.
|
|
TRUNK GROUP
|
|
avCmListTrunkCommonType
|
.1.1.8
|
R
|
SnmpAdminString (SIZE (0..6))
|
List Command: Does not display this field. Display Command: Comm Type
|
An object that contains the Comm Type of the Trunk Group.
|
|
TRUNK GROUP
|
|
avCmListTrunkTrunkType
|
.1.1.9
|
R
|
SnmpAdminString (SIZE (0..13))
|
List Command: Does not display this field. Display Command: Trunk Type
|
An object that contains the Trunk Type of the Trunk Group.
|
|
TRUNK GROUP
|

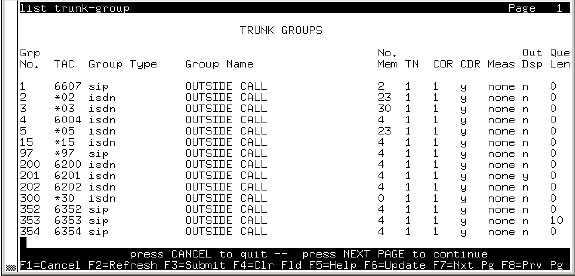

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListTrunk
avCmListTrunkGrpNumber.1 = INTEGER: 1
avCmListTrunkGrpNumber.2 = INTEGER: 2
:
:
avCmListTrunkGrpNumber.605 = INTEGER: 605
avCmListTrunkGrpType.1 = STRING: sip
avCmListTrunkGrpType.2 = STRING: isdn
:
:
avCmListTrunkGrpType.605 = STRING: isdn
avCmListTrunkGrpName.1 = STRING: OUTSIDE CALL
avCmListTrunkGrpName.2 = STRING: OUTSIDE CALL
:
:
avCmListTrunkGrpName.605 = STRING: OUTSIDE CALL
avCmListTrunkTAC.1 = STRING: 6607
avCmListTrunkTAC.2 = STRING: *02
:
:
avCmListTrunkTAC.605 = STRING: 6605
avCmListTrunkDirection.1 = STRING: two-way
avCmListTrunkDirection.2 = STRING: two-way
:
:
avCmListTrunkDirection.605 = STRING: two-way
avCmListTrunkServiceType.1 = STRING: tie
avCmListTrunkServiceType.2 = STRING: public-ntwrk
44
:
:
avCmListTrunkServiceType.605 = STRING: tie
avCmListTrunkCommType.1 = STRING: voice
avCmListTrunkCommType.2 = STRING: voice
:
:
avCmListTrunkCommType.605 = STRING: voice
avCmListTrunkTrunkType.1 = STRING: immed/immed
avCmListTrunkTrunkType.2 = STRING: immed/immed
:
:
avCmListTrunkTrunkType.605 = STRING: immed/immed
