avCmMeasAnnIntegAllYest

SAT

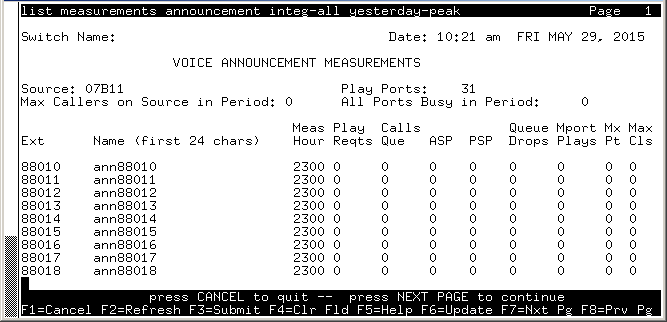

list measurements announcement integ-all yesterday-peak

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestTable

.1

n/a

SEQUENCE OF AvCmMeasAnnIntegAllYestEntry

n/a

An object containing the avCmMeasAnnIntegAllYest entries.

avCmMeasAnnIntegAllYestEntry

.1.1

n/a

AvCmMeasAnnIntegAllYestEntry

n/a

An object containing the avCmMeasAnnIntegAllYest information that the switch sent.

avCmMeasAnnIntegAllYestIdx

.1.1.1

n/a

SnmpAdminString (SIZE (0..17))

n/a

An object that uniquely identifies each increment of data.

avCmMeasAnnIntegAllYestExtension

.1.1.2

R

SnmpAdminString (SIZE (0..17))

Extension

An object containing the announcement extension.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestRunDate

.1.1.3

R

SnmpAdminString (SIZE (0..28))

Date

An object containing the date when the command was executed.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestSource

.1.1.4

R

SnmpAdminString (SIZE (0..6))

Source

An object containing the Source board or the media module.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestPlayPorts

.1.1.5

R

Integer32 (0..99999)

Play Ports

An object containing the number of play ports for the source.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestMaxCallrsPeriod

.1.1.6

R

Integer32 (0..99999)

Max Callers on Source in Period

An object containing the maximum callers using the source in the period.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestAllPortsBusyPeriod

.1.1.7

R

Integer32 (0..99999)

All Ports Busy in Period

An object containing the number of times all the ports on the source were busy during the period.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestName

.11.8

R

SnmpAdminString (SIZE (0..25))

Name

An object containing the name of the announcement. The name is maximum 24 characters.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestMeasHour

.1.1.9

R

Integer32 (0..99999)

Meas Hour

An object containing the measurement hour.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestPlayRequests

.1.1.10

R

Integer32 (0..99999)

Play Reqts

An object containing the number of play requests for the announcement.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestCallsQueued

.11.11

R

Integer32 (0..99999)

Call Que

An object containing the number of calls for an announcement that in queue waiting for a port during the period.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestASP

.1.1.12

R

Integer32 (0..9999)

ASP

An object containing the average number of seconds before the announcement played during the period. Calls abandoned in the queue waiting for a port are not included.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestPSP

.11.13

R

Integer32 (0..9999)

PSP

An object containing the peak speed to play an announcement.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestQueueDrops

.11.14

R

Integer32 (0..99999)

Queue Drops

An object containing the number of calls abandoned in the queue waiting for the port during the period. Calls that callers abandoned and calls that VOA (VDN of origin Announcements) aborted are included. Calls in the queue that the agent answered are excluded from the count.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestMportPlays

.11.15

R

Integer32 (0..99999)

Mport Plays

An object containing the number of times the announcement is played simultaneously from multiple ports during the period.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestMxPorts

.11.16

R

Integer32 (0..99)

Mx Pt

An object containing the maximum number of ports used for the announcement during the period.

VOICE ANNOUNCEMENT MEASUREMENTS

avCmMeasAnnIntegAllYestMaxCallers

.11.17

R

Integer32 (0..999)

Max Cls

An object containing the maximum number of callers simultaneously connected to a port for the announcement during the period.

VOICE ANNOUNCEMENT MEASUREMENTS
