avCmCapacityCallVec

Last Updated : Jul 12, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmCapacityCallVec
enterprises.6889.2.73.8.1.14
Scalar

Description

The avCmCapacityCallVec MIB Group uses the display capacity command to retrieve the CALL VECTORING capacity information under the CALL VECTORING/CALL PROMPTING section of the SYSTEM CAPACITY form.

Releases Supported

6.3.100 and later

Polling Type

Configuration, Inventory, and Performance/Utilization

Polling Interval

No more than once every 20 minutes.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 15 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmCapacityCallVec
SAT
display capacity
SYSTEM CAPACITY

Reference Document

A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmCapacityCallVecTotalVdnUsed
.1
R
Integer32 (0..99999)
Total Vector Directory Numbers
An object that contains the number of used total Vector Directory Numbers.
SYSTEM CAPACITY
Total Vector Directory Numbers
.2
R
Integer32 (0..99999)
Total Vector Directory Numbers
An object that contains the number of available total Vector Directory Numbers.
SYSTEM CAPACITY
avCmCapacityCallVecTotalVdnSysLim
.3
R
Integer32 (0..99999)
Total Vector Directory Numbers
An object that contains the system limit of available total Vector Directory Numbers.
SYSTEM CAPACITY
avCmCapacityCallVecMeetMeVdnUsed
.4
R
Integer32 (0..99999)
Meet-me Conference VDNs per system
An object that contains the number of used Meet-me Conference VDNs per system.
SYSTEM CAPACITY
avCmCapacityCallVecMeetMeVdnAvail
.5
R
Integer32 (0..99999)
Meet-me Conference VDNs per system
An object that contains the number of available Meet-me Conference VDNs per system.
SYSTEM CAPACITY
avCmCapacityCallVecMeetMeVdnSysLim
.6
R
Integer32 (0..99999)
Meet-me Conference VDNs per system
An object that contains the system limit of Meet-me Conference VDNs per system.
SYSTEM CAPACITY
avCmCapacityCallVecMaxExpMeetMePtsUsed
.7
R
Integer32 (0..99999)
Maximum Number of Expanded Meet-me Conf. Ports
An object that contains the number of used maximum number of Expanded Meet-me Conference ports.
SYSTEM CAPACITY
avCmCapacityCallVecMaxExpMeetMePtsAvail
.8
R
Integer32 (0..99999)
Maximum Number of Expanded Meet-me Conf. Ports
An object that contains the number of available maximum number of Expanded Meet-me Conference ports.
SYSTEM CAPACITY
avCmCapacityCallVecMaxExpMeetMePtsSysLim
.9
R
Integer32 (0..99999)
Maximum Number of Expanded Meet-me Conf. Ports
An object that contains the system limits of maximum number of Expanded Meet-me Conference ports.
SYSTEM CAPACITY
avCmCapacityCallVecTotalVectorsUsed
.10
R
Integer32 (0..99999)
Total Vectors Per System
An object that contains the number of used total vectors per system.
SYSTEM CAPACITY
avCmCapacityCallVecTotalVectorsAvail
.11
R
Integer32 (0..99999)
Total Vectors Per System
An object that contains the number of available total vectors per system.
SYSTEM CAPACITY
avCmCapacityCallVecTotalVectorsSysLim
.12
R
Integer32 (0..99999)
Total Vectors Per System
An object that contains the system limit of used total vectors per system.
SYSTEM CAPACITY
avCmCapacityCallVecMeetMeVectorsUsed
.13
R
Integer32 (0..99999)
Meet-me Conference vectors per system
An object that contains the number of used meet-me conference vectors per system.
SYSTEM CAPACITY
avCmCapacityCallVecMeetMeVectorsAvail
.14
R
Integer32 (0..99999)
Meet-me Conference vectors per system
An object that contains the number of available meet-me conference vectors per system.
SYSTEM CAPACITY
avCmCapacityCallVecMeetMeVectorsSysLim
.15
R
Integer32 (0..99999)
Meet-me Conference vectors per system
An object that contains the system limit of meet-me conference vectors per system.
SYSTEM CAPACITY
avCmCapacityCallVecBsrAppLocPairsUsed
.16
R
Integer32 (0..99999)
BSR Application-Location Pairs Per System
An object that contains the number of used maximum BSR application-location pairs per system.
SYSTEM CAPACITY
avCmCapacityCallVecBsrAppLocPairsAvail
.17
R
Integer32 (0..99999)
BSR Application-Location Pairs Per System
An object that contains the number of available maximum BSR application-location pairs per system.
SYSTEM CAPACITY
avCmCapacityCallVecBsrAppLocPairsSysLim
.18
R
Integer32 (0..99999)
BSR Application-Location Pairs Per System
An object that contains the system limit of BSR application-location pairs per system.
SYSTEM CAPACITY
avCmCapacityCallVecBkgrdBsrPollVdnUsed
.19
R
Integer32 (0..99999)
Background BSR Poll VDNs
An object that contains the number of used background BSR Poll VDNs.
SYSTEM CAPACITY
avCmCapacityCallVecBkgrdBsrPollVdnAvail
.20
R
Integer32 (0..99999)
Background BSR Poll VDNs
An object that contains the number of available background BSR Poll VDNs. .
SYSTEM CAPACITY
avCmCapacityCallVecBkgrdBsrPollVdnSysLim
.21
R
Integer32 (0..99999)
Background BSR Poll VDNs
An object that contains the system limit of background BSR Poll VDNs.
SYSTEM CAPACITY
avCmCapacityCallVecVecComStepsUsed
.22
R
Integer32 (0..99999)
Vector Comment Steps (non-blank)
An object that contains the number of used vector comment steps.
SYSTEM CAPACITY
avCmCapacityCallVecVecComStepsAvail
.23
R
Integer32 (0..99999)
Vector Comment Steps (non-blank)
An object that contains the number of available vector comment steps.
SYSTEM CAPACITY
avCmCapacityCallVecVecComStepsSysLim
.24
R
Integer32 (0..99999)
Vector Comment Steps (non-blank)
An object that contains the system limit of vector comment steps.
SYSTEM CAPACITY
avCmCapacityCallVecPolicyRoutTblUsed
.25
R
Integer32 (0..99999)
Policy Routing Tables
An object that contains the number of used policy routing tables.
SYSTEM CAPACITY
avCmCapacityCallVecPolicyRoutTblAvail
.26
R
Integer32 (0..99999)
Policy Routing Tables
An object that contains the number of available policy routing tables.
SYSTEM CAPACITY
avCmCapacityCallVecPolicyRoutTblSysLim
.27
R
Integer32 (0..99999)
Policy Routing Tables
An object that contains the system limit of policy routing tables.
SYSTEM CAPACITY
avCmCapacityCallVecPolicyRoutPtslUsed
.28
R
Integer32 (0..99999)
Policy Routing Points
An object that contains the number of used policy routing points.
SYSTEM CAPACITY
avCmCapacityCallVecPolicyRoutPtsAvail
.29
R
Integer32 (0..99999)
Policy Routing Points
An object that contains the number of available policy routing points.
SYSTEM CAPACITY
avCmCapacityCallVecPolicyRoutPtsSysLim
.30
R
Integer32 (0..99999)
Policy Routing Points
An object that contains the system limit of policy routing points.
SYSTEM CAPACITY

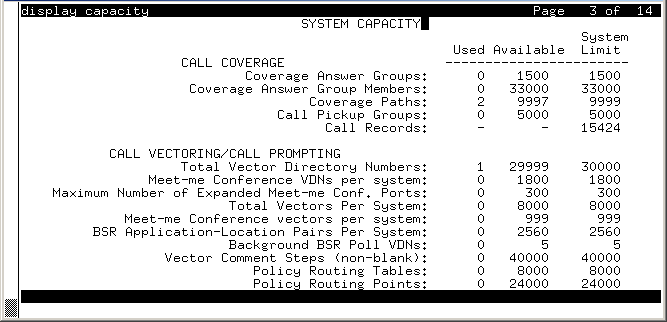

Sample output of forms

avCmCapacityCallVec

Sample Output of SNMP Walk command:

server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmCapacityCallVec
avCmCapacityCallVecTotalVdnUsed.0 = INTEGER: 1
avCmCapacityCallVecTotalVdnAvail.0 = INTEGER: 29999
avCmCapacityCallVecTotalVdnSysLim.0 = INTEGER: 30000
avCmCapacityCallVecMeetMeVdnUsed.0 = INTEGER: 0
avCmCapacityCallVecMeetMeVdnAvail.0 = INTEGER: 1800
avCmCapacityCallVecMeetMeVdnSysLim.0 = INTEGER: 1800
avCmCapacityCallVecMaxExpMeetMePtsUsed.0 = INTEGER: 0
avCmCapacityCallVecMaxExpMeetMePtsAvail.0 = INTEGER: 300
avCmCapacityCallVecMaxExpMeetMePtsSysLim.0 = INTEGER: 300
avCmCapacityCallVecTotalVectorsUsed.0 = INTEGER: 0
64
avCmCapacityCallVecTotalVectorsAvail.0 = INTEGER: 8000
avCmCapacityCallVecTotalVectorsSysLim.0 = INTEGER: 8000
avCmCapacityCallVecMeetMeVectorsUsed.0 = INTEGER: 0
avCmCapacityCallVecMeetMeVectorsAvail.0 = INTEGER: 999
avCmCapacityCallVecMeetMeVectorsSysLim.0 = INTEGER: 999
avCmCapacityCallVecBsrAppLocPairsUsed.0 = INTEGER: 0
avCmCapacityCallVecBsrAppLocPairsAvail.0 = INTEGER: 2560
avCmCapacityCallVecBsrAppLocPairsSysLim.0 = INTEGER: 2560
avCmCapacityCallVecBkgrdBsrPollVdnUsed.0 = INTEGER: 0
avCmCapacityCallVecBkgrdBsrPollVdnAvail.0 = INTEGER: 5
avCmCapacityCallVecBkgrdBsrPollVdnSysLim.0 = INTEGER: 5
avCmCapacityCallVecVecComStepsUsed.0 = INTEGER: 0
avCmCapacityCallVecVecComStepsAvail.0 = INTEGER: 40000
avCmCapacityCallVecVecComStepsSysLim.0 = INTEGER: 40000
avCmCapacityCallVecPolicyRoutTblUsed.0 = INTEGER: 0
avCmCapacityCallVecPolicyRoutTblAvail.0 = INTEGER: 8000
avCmCapacityCallVecPolicyRoutTblSysLim.0 = INTEGER: 8000
avCmCapacityCallVecPolicyRoutPtslUsed.0 = INTEGER: 0
avCmCapacityCallVecPolicyRoutPtsAvail.0 = INTEGER: 24000
avCmCapacityCallVecPolicyRoutPtsSysLim.0 = INTEGER: 24000
