Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmStatusStation
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmStatusStation
|
enterprises.6889.2.73.8.1.30
|
Table
|
Description
The avCmStatusStation MIB group displays the output of the status station command.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once a day or when stations are added.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmStatusStation
|
SAT
|
list station
|

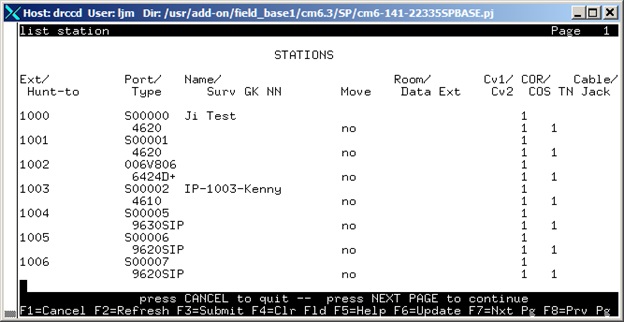

STATIONS
|
|
SAT
|
status station
|

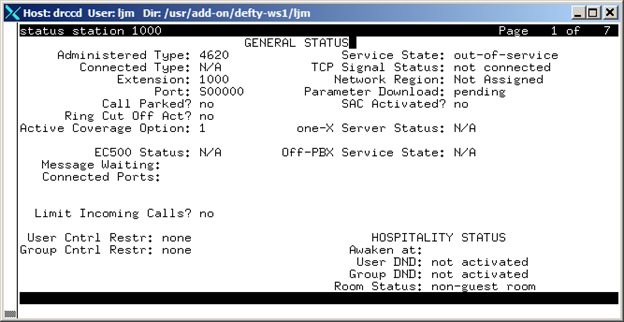

GENERAL STATUS
|
Reference Document
-
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
-
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
-
No special permissions needed.
-
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmStatusStationTable
|
.1
|
n/a
|
SEQUENCE OF avCmStatusStationEntry
|
n/a
|
An object that contains a list of the avCmServerAlarms entries.
|
|
avCmStatusStationEntry
|
.1.1
|
n/a
|
avCmStatusStationEntry
|
n/a
|
A avCmStatusStation entry containing objects of the avCmStatusStation information sent by the switch.
|
|
avCmStatusStationIdx
|
.1.1.1
|
R
|
SnmpAdminString (SIZE (0..17))
|
n/a
|
An object containing an index that uniquely identifies an administered station.
|
|
avCmStatusStationExtension
|
.1.1.2
|
R
|
SnmpAdminString (SIZE (0..17))
|
Ext
|
An object containing the stations extension.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationConnType
|
.1.1.3
|
R
|
SnmpAdminString (SIZE (0..17))
|
Connected Type
|
An object containing the connected station type.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationServiceState
|
.1.1.4
|
R
|
SnmpAdminString (SIZE (0..22))
|
Service State
|
An object containing the service state of the station.
|
|
GENERAL STATUS
|
|||||
|
avCmStatusStationPort
|
.1.1.5
|
R
|
SnmpAdminString (SIZE (0..6))
|
Port
|
An object containing the stations port assignment.
|
|
GENERAL STATUS
|
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -v 2c 192.0.2.0 -c private -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmStatusStation
AVAYA-AURA-CM-MIB::avCmStatusStationExtension."1000" = STRING: 1000
AVAYA-AURA-CM-MIB::avCmStatusStationExtension."1001" = STRING: 1001
:
:
AVAYA-AURA-CM-MIB::avCmStatusStationExtension."5384100" = STRING: 538-4100
AVAYA-AURA-CM-MIB::avCmStatusStationConnType."1000" = STRING: N/A
AVAYA-AURA-CM-MIB::avCmStatusStationConnType."1001" = STRING: N/A
:
:
AVAYA-AURA-CM-MIB::avCmStatusStationConnType."5384100" = STRING: N/A
AVAYA-AURA-CM-MIB::avCmStatusStationServiceState."1000" = STRING: out-of-service
AVAYA-AURA-CM-MIB::avCmStatusStationServiceState."1001" = STRING: out-of-service
:
:
AVAYA-AURA-CM-MIB::avCmStatusStationServiceState."5384100" = STRING: disconnected
AVAYA-AURA-CM-MIB::avCmStatusStationPort."1000" = STRING: S00000
AVAYA-AURA-CM-MIB::avCmStatusStationPort."1001" = STRING: S00001
:
:
AVAYA-AURA-CM-MIB::avCmStatusStationPort."5384100" = STRING: 01A1302
