Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasIpVoStatSumJitterLstHr
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmMeasIVoStatSumJitterYest
|
enterprises.6889.2.73.8.1.68
|
Table
|
Description
The avCmMeasIpVoStatSumJitterLstHr MIB group displays the jitter recorded during calls in the previous hour for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmMeasIpVoStatSumJitterLstHr
|
SAT
|

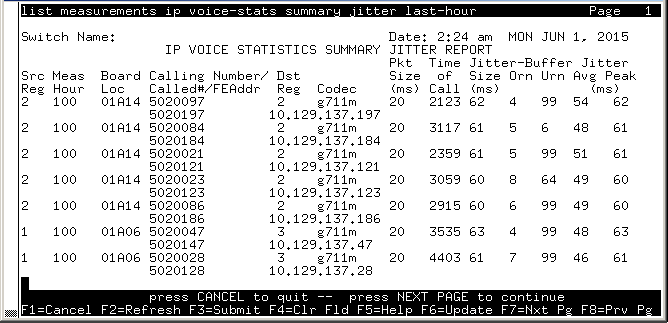

list measurements ip voice-stats summary jitter last-hour
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed. The default super user can run this command.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrTable
|
.1
|
n/a
|
SEQUENCE OF avCmMeasIpVoStatSumJitterLstHrEntry
|
n/a
|
An object containing the avCmMeasIpVoStatSumJitterLstHr entries.
|
|
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrEntry
|
.1.1.
|
n/a
|
avCmMeasIpVoStatSumJitterLstHrEntry
|
n/a
|
An object containing the avCmMeasIpVoStatSumJitterLstHr entry with the information that the switch sent.
|
|
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrRegIdx
|
.1.1.1
|
n/a
|
Integer32 (1..2000)
|
n/a
|
An index in the network region.
|
|
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrHourIdx
|
.1.1.2
|
n/a
|
Integer32 (0..2300)
|
n/a
|
An index containing the measurements of the jitter voice statistics.
|
|
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrIdx
|
.1.1.3
|
n/a
|
Integer32 (0..9999)
|
n/a
|
A unique index for the jitter voice statistics.
|
|
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrIdx
|
.1.1.4
|
R
|
Integer32 (0..2000)
|
List Command: Region
|
An object containing the network region.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrMeasHour
|
.1.1.5
|
R
|
Integer32 (0..2300)
|
Measurement Hour
|
An object that containing the measurement hour.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrRunTime
|
.1.1.6
|
R
|
SnmpAdminString (SIZE (0..28))
|
Date
|
An object containing the date.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrBoardLoc
|
.1.1.7
|
R
|
SnmpAdminString (SIZE (0..17))
|
Board Loc
|
An object containing the board location.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrCallingNum
|
.1.1.8
|
R
|
SnmpAdminString (SIZE (0..17))
|
Calling Number
|
An object containing the calling number.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrCalledNum
|
.1.1.9
|
R
|
SnmpAdminString (SIZE (0..17))
|
Called Number
|
An object containing the called number.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrDstReg
|
.1.1.10
|
R
|
Integer32 (0..9999)
|
Dst Reg
|
An object containing the destination region.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrCodec
|
.1.1.11
|
R
|
SnmpAdminString (SIZE (0..8))
|
Codec
|
An object containing the codec used for the call.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrPktSize
|
.1.1.12
|
R
|
Integer32 (0..999)
|
Pkt Size
|
An object containing the packet size.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrTimeCall
|
.1.1.13
|
R
|
SnmpAdminString (SIZE (0..5))
|
Time of Call
|
An object containing the time of the call.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrBufSize
|
.1.1.14
|
R
|
SnmpAdminString (SIZE (0..4))
|
Jitter-Buffer Size
|
An object containing the size of the jitter buffer.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrBufOrn
|
.1.1.15
|
R
|
SnmpAdminString (SIZE (0..4))
|
Jitter-Buffer Orn
|
An object containing the jitter buffer orn.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrBufUrn
|
.1.1.16
|
R
|
SnmpAdminString (SIZE (0..4))
|
Jitter-Buffer Urn
|
An object containing the jitter buffer urn.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrAvgJitter
|
.1.1.17
|
R
|
SnmpAdminString (SIZE (0..5))
|
Jitter Avg
|
An object containing the average jitter recorded.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrPeakJitter
|
.1.1.18
|
R
|
SnmpAdminString (SIZE (0..5))
|
Jitter Peak
|
An object containing the peak jitter recorded.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
|||||
|
avCmMeasIpVoStatSumJitterLstHrFarIpAddr
|
.1.1.19
|
R
|
SnmpAdminString (SIZE (0..41))
|
FEAddr
|
An object containing the far-end IP address.
|
|
IP VOICE STATISTICS SUMMARY JITTER REPORT
|
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatSumJitterLstHr
avCmMeasIpVoStatSumJitterLstHrRegion.1.100.1 = INTEGER: 1
avCmMeasIpVoStatSumJitterLstHrRegion.1.100.2 = INTEGER: 1
:
:
avCmMeasIpVoStatSumJitterLstHrRegion.2.100.5 = INTEGER: 2
avCmMeasIpVoStatSumJitterLstHrMeasHour.1.100.1 = INTEGER: 100
avCmMeasIpVoStatSumJitterLstHrMeasHour.1.100.2 = INTEGER: 100
:
:
avCmMeasIpVoStatSumJitterLstHrMeasHour.2.100.5 = INTEGER: 100
avCmMeasIpVoStatSumJitterLstHrRunTime.1.100.1 = STRING: 2:27 am MON JUN 1, 2015
avCmMeasIpVoStatSumJitterLstHrRunTime.1.100.2 = STRING: 2:27 am MON JUN 1, 2015
:
:
avCmMeasIpVoStatSumJitterLstHrRunTime.2.100.5 = STRING: 2:27 am MON JUN 1, 2015
avCmMeasIpVoStatSumJitterLstHrBoardLoc.1.100.1 = STRING: 01A06
avCmMeasIpVoStatSumJitterLstHrBoardLoc.1.100.2 = STRING: 01A06
:
:
avCmMeasIpVoStatSumJitterLstHrBoardLoc.2.100.5 = STRING: 01A14
avCmMeasIpVoStatSumJitterLstHrCallingNum.1.100.1 = STRING: 5020047
avCmMeasIpVoStatSumJitterLstHrCallingNum.1.100.2 = STRING: 5020028
:
:
avCmMeasIpVoStatSumJitterLstHrCallingNum.2.100.5 = STRING: 5020086
avCmMeasIpVoStatSumJitterLstHrCalledNum.1.100.1 = STRING: 5020147
avCmMeasIpVoStatSumJitterLstHrCalledNum.1.100.2 = STRING: 5020128
:
:
avCmMeasIpVoStatSumJitterLstHrCalledNum.2.100.5 = STRING: 5020186
avCmMeasIpVoStatSumJitterLstHrDstReg.1.100.1 = INTEGER: 3
avCmMeasIpVoStatSumJitterLstHrDstReg.1.100.2 = INTEGER: 3
:
:
avCmMeasIpVoStatSumJitterLstHrDstReg.2.100.5 = INTEGER: 2
avCmMeasIpVoStatSumJitterLstHrCodec.1.100.1 = STRING: g711m
avCmMeasIpVoStatSumJitterLstHrCodec.1.100.2 = STRING: g711m
:
:
avCmMeasIpVoStatSumJitterLstHrCodec.2.100.5 = STRING: g711m
avCmMeasIpVoStatSumJitterLstHrPktSize.1.100.1 = INTEGER: 20
avCmMeasIpVoStatSumJitterLstHrPktSize.1.100.2 = INTEGER: 20
:
:
avCmMeasIpVoStatSumJitterLstHrPktSize.2.100.5 = INTEGER: 20
avCmMeasIpVoStatSumJitterLstHrTimeCall.1.100.1 = STRING: 3535
avCmMeasIpVoStatSumJitterLstHrTimeCall.1.100.2 = STRING: 4403
:
:
avCmMeasIpVoStatSumJitterLstHrTimeCall.2.100.5 = STRING: 2915
avCmMeasIpVoStatSumJitterLstHrBufSize.1.100.1 = STRING: 63
avCmMeasIpVoStatSumJitterLstHrBufSize.1.100.2 = STRING: 61
:
:
avCmMeasIpVoStatSumJitterLstHrBufSize.2.100.5 = STRING: 60
avCmMeasIpVoStatSumJitterLstHrBufOrn.1.100.1 = STRING: 4
avCmMeasIpVoStatSumJitterLstHrBufOrn.1.100.2 = STRING: 7
:
:
avCmMeasIpVoStatSumJitterLstHrBufOrn.2.100.5 = STRING: 6
avCmMeasIpVoStatSumJitterLstHrBufUrn.1.100.1 = STRING: 99
avCmMeasIpVoStatSumJitterLstHrBufUrn.1.100.2 = STRING: 99
:
:
avCmMeasIpVoStatSumJitterLstHrBufUrn.2.100.5 = STRING: 99
avCmMeasIpVoStatSumJitterLstHrAvgJitter.1.100.1 = STRING: 48
avCmMeasIpVoStatSumJitterLstHrAvgJitter.1.100.2 = STRING: 46
:
:
avCmMeasIpVoStatSumJitterLstHrAvgJitter.2.100.5 = STRING: 49
avCmMeasIpVoStatSumJitterLstHrPeakJitter.1.100.1 = STRING: 63
avCmMeasIpVoStatSumJitterLstHrPeakJitter.1.100.2 = STRING: 61
:
:
avCmMeasIpVoStatSumJitterLstHrPeakJitter.2.100.5 = STRING: 60
avCmMeasIpVoStatSumJitterLstHrFarIpAddr.1.100.1 = STRING: 10.129.137.47
avCmMeasIpVoStatSumJitterLstHrFarIpAddr.1.100.2 = STRING: 10.129.137.28
:
:
avCmMeasIpVoStatSumJitterLstHrFarIpAddr.2.100.5 = STRING: 10.129.137.186
