avCmMeasAnnAllYest

Last Updated : Jul 13, 2021 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmMeasAnnAllYest
enterprises.6889.2.73.8.1.82
Table

Description

The avCmMeasAnnAllYest MIB group displays all announcements in the previous day.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization
Fault

Polling Interval

No more than once an hour. The date is updated only at the beginning of each day.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmMeasAnnAllYest
SAT
list measurements announcement all yesterday-peak
VOICE ANNOUNCEMENTS MEASUREMENTS

Reference Document

A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmMeasAnnAllYestTable
.1
n/a
SEQUENCE OF AvCmMeasAnnAllYestEntry
n/a
An object containing the avCmMeasAnnAllYest entries.
avCmMeasAnnAllYestEntry
.1.1
n/a
AvCmMeasAnnAllYestEntry
n/a
An object containing the avCmMeasAnnAllYest entry with the information that the switch sent.
avCmMeasAnnAllYestIdx
.1.1.1
n/a
SnmpAdminString (SIZE (0..17))
n/a
An object that uniquely identifies all data increments.
avCmMeasAnnAllYestExtension
.1.1.2
n/a
SnmpAdminString (SIZE (0..17))
Extension
An index containing the announcement extension.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllYestRunDate
.1.1.3
R
SnmpAdminString (SIZE (0..28))
Date
An object containing the date when the command was executed.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllYestName
.1.1.4
R
SnmpAdminString (SIZE (0..25))
Name
An object containing the announcement name.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllYestMeasHou
.1.1.5
R
Integer32 (0..9999))
Measurement Hour
An object that containing the measurement hour.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllYestPlayRequests
.1.1.6
R
Integer32 (0..9999))
Play Reqts
An object containing the number of play requests for the announcement.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllYestCallsQueued
.1.1.7
R
Integer32 (0..9999))
Calls Que
An object containing the number of calls in queue to be assigned a port.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllYestASP
.1.1.8
R
Integer32 (0..9999))
ASP
An object containing the average time calls waited for the announcement to be played in seconds. Calls abandoned in the queue are not included.
VOICE ANNOUNCEMENTS MEASUREMENTS
AvCmMeasAnnAllYestPSP
.1.1.9
R
Integer32 (0..9999))
PSP
An object containing the peak speed to play an announcement.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllYestQueueDrops
1.1.10
R
Integer32 (0..9999))
Queue Drops
An object containing the number of calls in the queue that were disconnected. Calls abandoned by the caller and aborted by VOA (VDN of origin Announcements) are included. Calls in the queue answered by an agent are not included.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllYestMportPlays
1.1.11
R
Integer32 (0..9999))
Mport Plays
An object containing the number of times an announcement is played simultaneously by multiple ports.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllYestMxPorts
1.1.12
R
Integer32 (0..99))
Mx Pt
An object containing the peak numbers of ports used for announcements in a specific period.
VOICE ANNOUNCEMENTS MEASUREMENTS
avCmMeasAnnAllYestMaxCallers
1.1.13
R
Integer32 (0..999))
Max Cls
An object containing the peak number callers simultaneously connected to a port for an announcement.
VOICE ANNOUNCEMENTS MEASUREMENTS

Sample output of forms

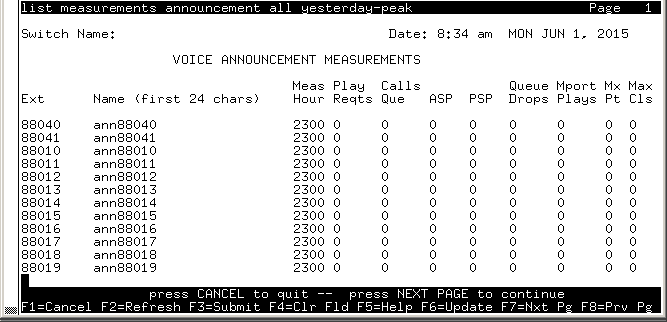

avCmMeasAnnAllYest - VOICE ANNOUNCEMENT MEASUREMENTS

Sample Output of SNMP Walk command:

server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmMeasAnnAllYest
avCmMeasAnnAllYestExtension."88010" = STRING: 88010
avCmMeasAnnAllYestExtension."88011" = STRING: 88011
:
:
avCmMeasAnnAllYestExtension."88041" = STRING: 88041
avCmMeasAnnAllYestRunDate."88010" = STRING: 8:36 am MON JUN 1, 2015
avCmMeasAnnAllYestRunDate."88011" = STRING: 8:36 am MON JUN 1, 2015
:
:
avCmMeasAnnAllYestRunDate."88041" = STRING: 8:36 am MON JUN 1, 2015
avCmMeasAnnAllYestName."88010" = STRING: ann88010
avCmMeasAnnAllYestName."88011" = STRING: ann88011
:
:
avCmMeasAnnAllYestName."88041" = STRING: ann88041
avCmMeasAnnAllYestMeasHour."88010" = INTEGER: 2300
avCmMeasAnnAllYestMeasHour."88011" = INTEGER: 2300
:
:
avCmMeasAnnAllYestMeasHour."88041" = INTEGER: 2300
avCmMeasAnnAllYestPlayRequests."88010" = INTEGER: 0
avCmMeasAnnAllYestPlayRequests."88011" = INTEGER: 0
:
:
avCmMeasAnnAllYestPlayRequests."88041" = INTEGER: 0
avCmMeasAnnAllYestCallsQueued."88010" = INTEGER: 0
avCmMeasAnnAllYestCallsQueued."88011" = INTEGER: 0
:
:
avCmMeasAnnAllYestCallsQueued."88041" = INTEGER: 0
avCmMeasAnnAllYestASP."88010" = INTEGER: 0
avCmMeasAnnAllYestASP."88011" = INTEGER: 0
:
:
avCmMeasAnnAllYestASP."88041" = INTEGER: 0
avCmMeasAnnAllYestPSP."88010" = INTEGER: 0
avCmMeasAnnAllYestPSP."88011" = INTEGER: 0
:
:
avCmMeasAnnAllYestPSP."88041" = INTEGER: 0
avCmMeasAnnAllYestQueueDrops."88010" = INTEGER: 0
avCmMeasAnnAllYestQueueDrops."88011" = INTEGER: 0
:
:
avCmMeasAnnAllYestQueueDrops."88041" = INTEGER: 0
avCmMeasAnnAllYestMportPlays."88010" = INTEGER: 0
avCmMeasAnnAllYestMportPlays."88011" = INTEGER: 0
:
:
avCmMeasAnnAllYestMportPlays."88041" = INTEGER: 0
avCmMeasAnnAllYestMxPorts."88010" = INTEGER: 0
avCmMeasAnnAllYestMxPorts."88011" = INTEGER: 0
:
:
avCmMeasAnnAllYestMxPorts."88041" = INTEGER: 0
avCmMeasAnnAllYestMaxCallers."88010" = INTEGER: 0
avCmMeasAnnAllYestMaxCallers."88011" = INTEGER: 0
:
:
avCmMeasAnnAllYestMaxCallers."88041" = INTEGER: 0
