avCmMeasIpVoStatSumDataYest

Last Updated : Oct 26, 2020 |
Prolog information
Metadata
Keywords:
MIB group name
OID
Type
avCmMeasIVoStatSumDataYest
enterprises.6889.2.73.8.1.79
Table

Description

The avCmMeasIpVoStatSumDataYest MIB group displays the data of the previous day for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization

Polling Interval

No more than once an hour.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

MIB group name
Bash/SAT
Associated command
Form/Report name
avCmMeasIpVoStatSumDataYest
SAT
list measurements ip voice-stats summary data yesterday
IP VOICE STATISTICS SUMMARY DATA REPORT

Reference Document

A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed. The default super user can run this command.

Objects

Object Name
OID
R/W
Type
Field Name
Description
Form/Report name
avCmMeasIpVoStatSumDataYestTable
.1
n/a
SEQUENCE OF AvCmMeasIpVoStatSumDataYestEntry
n/a
An object containing the avCmMeasIpVoStatSumDataYest entries.
avCmMeasIpVoStatSumDataYestEntry
.1.1
n/a
AvCmMeasIpVoStatSumDataYestEntry
n/a
An object containing the avCmMeasIpVoStatSumDataYest entry with the information that the switch sent..
avCmMeasIpVoStatSumDataYestRegIdx
.1.1.1
n/a
Integer32 (1..2000)
n/a
An index in the network region.
avCmMeasIpVoStatSumDataYestHourIdx
.1.1.2
n/a
Integer32 (1..2300)
n/a
An index containing the measurements of the packet loss voice statistics in the 24-hour format.
avCmMeasIpVoStatSumDataYestHourIdx
.1.1.3
n/a
Integer32 (1..9999)
n/a
An index containing the measurements of the packet loss voice statistics in the 24-hour format.
avCmMeasIpVoStatSumDataYestRegion
.1.1.4
R
Integer32 (1..2000)
List Command: Region
An object containing the network region.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestMeasHour
.1.1.5
R
Integer32 (1..2300)
Measurement Hour
An object that containing the measurement hour.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestRunTime
.1.1.6
R
SnmpAdminString (SIZE (0..28))
Date
An object containing the date
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestBoardLoc
.1.1.7
R
SnmpAdminString (SIZE (0..6))
Board Loc
An object containing the board location.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestCallingNum
.1.1.8
R
SnmpAdminString (SIZE (0..17))
Calling Number\
An object containing the calling number.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestCalledNum
.1.1.9
R
SnmpAdminString (SIZE (0..17))
Called Number
An object containing the called number.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestDstReg
.1.1.10
R
SnmpAdminString (SIZE (0..9999))
Dst Reg
An object containing the destination region.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestCodec
.1.1.11
R
SnmpAdminString (SIZE (0..58))
Codec
An object containing the codec used for the call.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestDataType
.1.1.12
R
SnmpAdminString (SIZE (0..7))
Data Type
An object containing the type of the call: ttyrel (TTY Relay), mod-pt (Modem pass-through), fax-pt (FAX pass-through), tty-pt (TTY pass-through), t38fax (T.38 FAX), faxrel (FAX relay), modrel (Modem relay)
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestPktSize
.1.1.13
R
SnmpAdminString (SIZE (0..999))
Pkt Size
An object containing the packet size of each data stream in milliseconds.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataLstLossPerc
.1.1.14
R
SnmpAdminString (SIZE (0..4))
Loss %
An object containing the packet loss during a call. The packet loss is calculated at 10-second intervals.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestPeakJitter
.1.1.15
R
SnmpAdminString (SIZE (0..9999))
Peak Jit
An object containing the peak jitter during a call in milliseconds.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestPeakDly
.1.1.16
R
SnmpAdminString (SIZE (0..9999))
Dly
An object containing the peak two-way packet delay during a call in milliseconds.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestEC
.1.1.17
R
SnmpAdminString (SIZE (0..2))
EC
An object containing the status of echo cancellation during a call.
IP VOICE STATISTICS SUMMARY DATA REPORT
avCmMeasIpVoStatSumDataYestFEAddr
.1.1.18
R
SnmpAdminString (SIZE (0..41))
FE-Addr
An object containing the far-end IP address.
IP VOICE STATISTICS SUMMARY DATA REPORT

Sample output of forms

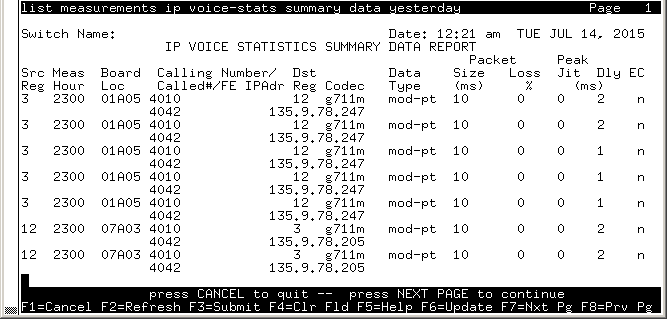

avCmMeasIpVoStatSumDataYest - IP VOICE STATISTICS SUMMARY

Sample Output of SNMP Walk command:

server1> snmpwalk -t 40 -v2c -Os -c public localhost -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatSumDataYest
avCmMeasIpVoStatSumDataYestRegion.3.2300.1 = INTEGER: 3
avCmMeasIpVoStatSumDataYestRegion.3.2300.2 = INTEGER: 3
:
avCmMeasIpVoStatSumDataYestRegion.12.2300.5 = INTEGER: 12
avCmMeasIpVoStatSumDataYestMeasHour.3.2300.1 = INTEGER: 2300
avCmMeasIpVoStatSumDataYestMeasHour.3.2300.2 = INTEGER: 2300
:
:
avCmMeasIpVoStatSumDataYestMeasHour.12.2300.5 = INTEGER: 2300
avCmMeasIpVoStatSumDataYestRunTime.3.2300.1 = STRING: 12:19 am TUE JUL 14, 2015
avCmMeasIpVoStatSumDataYestRunTime.3.2300.2 = STRING: 12:19 am TUE JUL 14, 2015
:
:
avCmMeasIpVoStatSumDataYestRunTime.12.2300.5 = STRING: 12:19 am TUE JUL 14, 2015
avCmMeasIpVoStatSumDataYestBoardLoc.3.2300.1 = STRING: 01A05
avCmMeasIpVoStatSumDataYestBoardLoc.3.2300.2 = STRING: 01A05
:
:
avCmMeasIpVoStatSumDataYestBoardLoc.12.2300.5 = STRING: 07A03
avCmMeasIpVoStatSumDataYestCallingNum.3.2300.1 = STRING: 4010
avCmMeasIpVoStatSumDataYestCallingNum.3.2300.2 = STRING: 4010
:
:
avCmMeasIpVoStatSumDataYestCallingNum.12.2300.5 = STRING: 4010
avCmMeasIpVoStatSumDataYestCalledNum.3.2300.1 = STRING: 4042
avCmMeasIpVoStatSumDataYestCalledNum.3.2300.2 = STRING: 4042
:
:
avCmMeasIpVoStatSumDataYestCalledNum.12.2300.5 = STRING: 4042
avCmMeasIpVoStatSumDataYestDstReg.3.2300.1 = INTEGER: 12
avCmMeasIpVoStatSumDataYestDstReg.3.2300.2 = INTEGER: 12
:
:
avCmMeasIpVoStatSumDataYestDstReg.12.2300.5 = INTEGER: 3
avCmMeasIpVoStatSumDataYestCodec.3.2300.1 = STRING: g711m
avCmMeasIpVoStatSumDataYestCodec.3.2300.2 = STRING: g711m
:
:
avCmMeasIpVoStatSumDataYestCodec.12.2300.5 = STRING: g711m
avCmMeasIpVoStatSumDataYestDataType.3.2300.1 = STRING: mod-pt
avCmMeasIpVoStatSumDataYestDataType.3.2300.2 = STRING: mod-pt
:
:
avCmMeasIpVoStatSumDataYestDataType.12.2300.5 = STRING: mod-pt
avCmMeasIpVoStatSumDataYestPktSize.3.2300.1 = INTEGER: 10
avCmMeasIpVoStatSumDataYestPktSize.3.2300.2 = INTEGER: 10
:
:
avCmMeasIpVoStatSumDataYestPktSize.12.2300.5 = INTEGER: 10
avCmMeasIpVoStatSumDataYestLossPerc.3.2300.1 = STRING: 0
avCmMeasIpVoStatSumDataYestLossPerc.3.2300.2 = STRING: 0
:
:
avCmMeasIpVoStatSumDataYestLossPerc.12.2300.5 = STRING: 0
avCmMeasIpVoStatSumDataYestPeakJitter.3.2300.1 = INTEGER: 0
avCmMeasIpVoStatSumDataYestPeakJitter.3.2300.2 = INTEGER: 0
:
:
avCmMeasIpVoStatSumDataYestPeakJitter.12.2300.5 = INTEGER: 0
avCmMeasIpVoStatSumDataYestPeakDly.3.2300.1 = INTEGER: 2
avCmMeasIpVoStatSumDataYestPeakDly.3.2300.2 = INTEGER: 2
:
:
avCmMeasIpVoStatSumDataYestPeakDly.12.2300.5 = INTEGER: 1
avCmMeasIpVoStatSumDataYestEC.3.2300.1 = STRING: n
avCmMeasIpVoStatSumDataYestEC.3.2300.2 = STRING: n
:
:
avCmMeasIpVoStatSumDataYestEC.12.2300.5 = STRING: n
avCmMeasIpVoStatSumDataYestFEAddr.3.2300.1 = STRING: 135.9.78.247
avCmMeasIpVoStatSumDataYestFEAddr.3.2300.2 = STRING: 135.9.78.247
:
:
avCmMeasIpVoStatSumDataYestFEAddr.12.2300.5 = STRING: 135.9.78.205
