Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListIpUnregisteredRange
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmListIpUnregisteredRange Group
|
enterprises.6889.2.73.8.1.55
|
Table
/
Scalar
|
Description
The avCmListIpUnregisteredRange MIB group displays the output of the list multimedia ip-unregistered xxxx count xx command. This MIB Group should be used instead of the avCmListIpUnregistered MIB Group on systems with over 100 stations.
Releases Supported
6.3.100 and later
Polling Type
Configuration
Inventory
Polling Interval
No more than once a day or when stations are added.
Default Caching Interval
600 seconds
Timeout Interval
Initial Time-out should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmListIpUnregisteredRange Group
|
SAT
|
list multimedia ip-unregistered xxxxx count x
|
UNREGISTERED IP TELEPHONES
|
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmListIpUnregisteredRangeStartExt
|
.1
|
R-W
|
SnmpAdminString (SIZE (0..17))
|
Groups/Splits/Skills
|
An object that contains the number of used Groups/Splits/Skills.
|
|
avCmListIpUnregisteredRangeCount
|
.2
|
R-W
|
Integer32 (1..100)
|
Groups/Splits/Skills
|
An object that contains the number of available Groups/Splits/Skills.
|
|
avCmListIpUnregisteredRangeTable
|
.3
|
n/a
|
SEQUENCE OF AvCmListIpUnregisteredRangeEntry
|
Groups/Splits/Skills
|
An object that contains the system limit of Groups/Splits/Skills.
|
|
avCmListIpUnregisteredRangeEntry
|
.3.1
|
n/a
|
AvCmListIpUnregisteredRangeEntry
|
Administered Logical Agents
|
An object that contains the number of used administered logical agents.
|
|
avCmListIpUnregisteredRangeIdx
|
.3.2
|
n/a
|
SnmpAdminString (SIZE (0..17))
|
Administered Logical Agents
|
An object that contains the number of available administered logical agents.
|
|
avCmListIpUnregisteredRangeExtension
|
.3.3
|
R
|
SnmpAdminString (SIZE (0..17))
|
Administered Logical Agents
|
An object that contains the system limit of administered logical agents.
|
|
UNREGISTERED IP TELEPHONES
|
|||||
|
avCmListIpUnregisteredRangePort
|
.3.4
|
R
|
SnmpAdminString (SIZE (0..9))
|
Administered Logical Agent-Skill Pairs
|
An object that contains the number of used administered logical agent-skill pairs.
|
|
UNREGISTERED IP TELEPHONES
|
|||||
|
avCmListIpUnregisteredRangeRegistered
|
.3.5
|
R
|
SnmpAdminString (SIZE (0..2))
|
Administered Logical Agent-Skill Pairs
|
An object that contains the number of used administered logical agent-skill pairs.
|
|
UNREGISTERED IP TELEPHONES
|

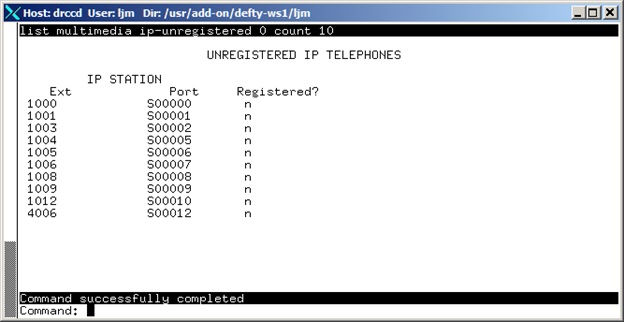

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListIpUnregisteredRange
avCmListIpUnregisteredRangeStartExt.0 = STRING: 0
avCmListIpUnregisteredRangeCount.0 = INTEGER: 10
avCmListIpUnregisteredRangeExtension."1000" = STRING: 1000
avCmListIpUnregisteredRangeExtension."1001" = STRING: 1001
avCmListIpUnregisteredRangeExtension."1003" = STRING: 1003
avCmListIpUnregisteredRangeExtension."1004" = STRING: 1004
avCmListIpUnregisteredRangeExtension."1005" = STRING: 1005
avCmListIpUnregisteredRangeExtension."1006" = STRING: 1006
avCmListIpUnregisteredRangeExtension."1008" = STRING: 1008
avCmListIpUnregisteredRangeExtension."1009" = STRING: 1009
avCmListIpUnregisteredRangeExtension."1012" = STRING: 1012
avCmListIpUnregisteredRangeExtension."4006" = STRING: 4006
avCmListIpUnregisteredRangePort."1000" = STRING: S00000
avCmListIpUnregisteredRangePort."1001" = STRING: S00001
avCmListIpUnregisteredRangePort."1003" = STRING: S00002
avCmListIpUnregisteredRangePort."1004" = STRING: S00005
avCmListIpUnregisteredRangePort."1005" = STRING: S00006
avCmListIpUnregisteredRangePort."1006" = STRING: S00007
avCmListIpUnregisteredRangePort."1008" = STRING: S00008
avCmListIpUnregisteredRangePort."1009" = STRING: S00009
avCmListIpUnregisteredRangePort."1012" = STRING: S00010
avCmListIpUnregisteredRangePort."4006" = STRING: S00012
avCmListIpUnregisteredRangeRegistered."1000" = STRING: n
avCmListIpUnregisteredRangeRegistered."1001" = STRING: n
avCmListIpUnregisteredRangeRegistered."1003" = STRING: n
avCmListIpUnregisteredRangeRegistered."1004" = STRING: n
avCmListIpUnregisteredRangeRegistered."1005" = STRING: n
avCmListIpUnregisteredRangeRegistered."1006" = STRING: n
avCmListIpUnregisteredRangeRegistered."1008" = STRING: n
avCmListIpUnregisteredRangeRegistered."1009" = STRING: n
avCmListIpUnregisteredRangeRegistered."1012" = STRING: n
avCmListIpUnregisteredRangeRegistered."4006" = STRING: n
