Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasIpVoStatSumPkLosToday
|
MIB group name
|
OID
|
Type
|
|---|---|---|
|
avCmMeasIVoStatSumPkLosToday
|
enterprises.6889.2.73.8.1.72
|
Table
|
Description
The avCmMeasIpVoStatSumPkLosToday MIB group displays the packet loss recorded during calls in the previous day for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
The avCmMeasIpVoStatSumPkLosToday MIB group displays the packet loss recorded during calls in the previous day for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.
Not more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
|
MIB group name
|
Bash/SAT
|
Associated command
|
Form/Report name
|
|---|---|---|---|
|
avCmMeasIpVoStatSumPkLosToday
|
SAT
|
list measurements ip voice-stats pktloss today
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed. The default super user can run this command.
Objects
|
Object Name
|
OID
|
R/W
|
Type
|
Field Name
|
Description
|
|---|---|---|---|---|---|
|
Form/Report name
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayTable
|
..1
|
n/a
|
SEQUENCE OF avCmMeasIpVoStatSumPkLosTodayEntry
|
n/a
|
An object containing the avCmMeasIpVoStatSumPkLosToday entries.
|
|
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayEntry
|
..1.1
|
n/a
|
avCmMeasIpVoStatSumPkLosTodayEntry
|
n/a
|
An object containing the avCmMeasIpVoStatSumPkLosToday entry with the information that the switch sent.
|
|
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayRegIdx
|
..1.1.1
|
n/a
|
Integer32 (1..2000)
|
n/a
|
An index in the network region.
|
|
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayHourIdx
|
..1.1.2
|
n/a
|
Integer32 (1..2300)
|
n/a
|
An index containing the measurements of the PktLoss voice statistics.
|
|
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayIdx
|
..1.1.3
|
n/a
|
Integer32 (1..9999)
|
n/a
|
An index containing the measurements of the pktloss voice statistics.
|
|
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayRegion
|
..1.1.4
|
R
|
Integer32 (0..2000)
|
List Command: Region
|
An object that containing the network region.
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayMeasHour
|
.1.1.5
|
Integer32 (0..2300)
|
Measurement Hour
|
An object containing the hour.
|
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayRunTime
|
.1.1.6
|
R
|
SnmpAdminString (SIZE (0..28))
|
Date
|
An object containing the date.
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayBoardLoc
|
..1.1.7
|
SnmpAdminString (SIZE (0..6))
|
Board Loc
|
An object containing the board location.
|
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayCallingNum
|
..1.1.8
|
SnmpAdminString (SIZE (0..17))
|
Calling Number
|
An object containing the calling number.
|
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayCalledNum
|
..1.1.9
|
R
|
SnmpAdminString (SIZE (0..17))
|
Called Number
|
An object containing the called number.
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayDstReg
|
..1.1.10
|
R
|
Integer32 (0..9999)
|
Dst Reg
|
An object containing the destination region.
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayCodec
|
..1.1.11
|
R
|
SnmpAdminString (SIZE (0..8))
|
Codec
|
An object containing the codec used for the call.
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayTimeCall
|
..1.1.12
|
R
|
SnmpAdminString (SIZE (0..5))
|
Time of Call
|
An object containing the timestamp when the threshold was exceeded. The timestamp is displayed in the MMSS (minutes seconds) format.
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayUDPPort
|
..1.1.13
|
SnmpAdminString (SIZE (0..6))
|
UDP Port
|
An object containing the port used by the media processor for the call.
|
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayPktSize
|
..1.1.14
|
R
|
Integer32 (0..999)
|
Pkt Size
|
An object containing the packet size of each data stream in milliseconds.
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayTotnumLosPkts
|
..1.1.15
|
R
|
Integer32 (0..9999)
|
Total # lost Pkts
|
An object containing the total packets lost during a call.
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayPktLossPerc
|
..1.1.16
|
SnmpAdminString (SIZE (0..3))
|
Packet Loss
|
An object containing the peak packekt loss for a call. The packet loss is measured at 10-second intervals.
|
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodaySilSup
|
..1.1.17
|
R
|
SnmpAdminString (SIZE (0..2))
|
Sil Sup
|
An object containing the status of silence suppression during a call.
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|
|||||
|
avCmMeasIpVoStatSumPkLosTodayFEAddr
|
..1.1.18
|
R
|
SnmpAdminString (SIZE (0..41))
|
FEAddr
|
An object containing the far-end IP address.
|
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT
|

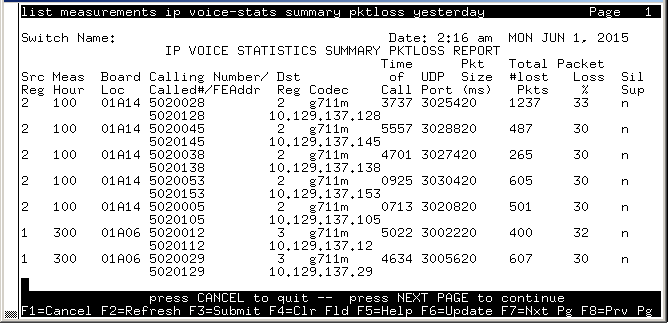

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatSumPkLosToday
avCmMeasIpVoStatSumPkLosTodayRegion.1.300.1 = INTEGER: 1
avCmMeasIpVoStatSumPkLosTodayRegion.1.300.2 = INTEGER: 1
:
:
avCmMeasIpVoStatSumPkLosTodayRegion.2.100.5 = INTEGER: 2
avCmMeasIpVoStatSumPkLosTodayMeasHour.1.300.1 = INTEGER: 300
avCmMeasIpVoStatSumPkLosTodayMeasHour.1.300.2 = INTEGER: 300
:
:
avCmMeasIpVoStatSumPkLosTodayMeasHour.2.100.5 = INTEGER: 100
avCmMeasIpVoStatSumPkLosTodayRunTime.1.300.1 = STRING: 2:11 am MON JUN 1, 2015
avCmMeasIpVoStatSumPkLosTodayRunTime.1.300.2 = STRING: 2:11 am MON JUN 1, 2015
:
:
avCmMeasIpVoStatSumPkLosTodayRunTime.2.100.5 = STRING: 2:11 am MON JUN 1, 2015
avCmMeasIpVoStatSumPkLosTodayBoardLoc.1.300.1 = STRING: 01A06
avCmMeasIpVoStatSumPkLosTodayBoardLoc.1.300.2 = STRING: 01A06
:
:
avCmMeasIpVoStatSumPkLosTodayBoardLoc.2.100.5 = STRING: 01A14
avCmMeasIpVoStatSumPkLosTodayCallingNum.1.300.1 = STRING: 5020012
avCmMeasIpVoStatSumPkLosTodayCallingNum.1.300.2 = STRING: 5020029
:
:
avCmMeasIpVoStatSumPkLosTodayCallingNum.2.100.5 = STRING: 5020005
avCmMeasIpVoStatSumPkLosTodayCalledNum.1.300.1 = STRING: 5020112
avCmMeasIpVoStatSumPkLosTodayCalledNum.1.300.2 = STRING: 5020129
:
:
avCmMeasIpVoStatSumPkLosTodayCalledNum.2.100.5 = STRING: 5020105
avCmMeasIpVoStatSumPkLosTodayDstReg.1.300.1 = INTEGER: 3
avCmMeasIpVoStatSumPkLosTodayDstReg.1.300.2 = INTEGER: 3
:
:
avCmMeasIpVoStatSumPkLosTodayDstReg.2.100.5 = INTEGER: 2
avCmMeasIpVoStatSumPkLosTodayCodec.1.300.1 = STRING: g711m
avCmMeasIpVoStatSumPkLosTodayCodec.1.300.2 = STRING: g711m
:
:
avCmMeasIpVoStatSumPkLosTodayCodec.2.100.5 = STRING: g711m
avCmMeasIpVoStatSumPkLosTodayTimeCall.1.300.1 = STRING: 5022
avCmMeasIpVoStatSumPkLosTodayTimeCall.1.300.2 = STRING: 4634
:
:
avCmMeasIpVoStatSumPkLosTodayTimeCall.2.100.5 = STRING: 0713
avCmMeasIpVoStatSumPkLosTodayUDPPort.1.300.1 = STRING: 30022
avCmMeasIpVoStatSumPkLosTodayUDPPort.1.300.2 = STRING: 30056
:
:
avCmMeasIpVoStatSumPkLosTodayUDPPort.2.100.5 = STRING: 30208
avCmMeasIpVoStatSumPkLosTodayPktSize.1.300.1 = INTEGER: 20
avCmMeasIpVoStatSumPkLosTodayPktSize.1.300.2 = INTEGER: 20
:
:
avCmMeasIpVoStatSumPkLosTodayPktSize.2.100.5 = INTEGER: 20
avCmMeasIpVoStatSumPkLosTodayTotnumLosPkts.1.300.1 = INTEGER: 400
avCmMeasIpVoStatSumPkLosTodayTotnumLosPkts.1.300.2 = INTEGER: 607
:
:
avCmMeasIpVoStatSumPkLosTodayTotnumLosPkts.2.100.5 = INTEGER: 501
avCmMeasIpVoStatSumPkLosTodayPktLossPerc.1.300.1 = STRING: 32
avCmMeasIpVoStatSumPkLosTodayPktLossPerc.1.300.2 = STRING: 30
:
:
avCmMeasIpVoStatSumPkLosTodayPktLossPerc.2.100.5 = STRING: 30
avCmMeasIpVoStatSumPkLosTodaySilSup.1.300.1 = STRING: n
avCmMeasIpVoStatSumPkLosTodaySilSup.1.300.2 = STRING: n
:
:
avCmMeasIpVoStatSumPkLosTodaySilSup.2.100.5 = STRING: n
avCmMeasIpVoStatSumPkLosTodayFEAddr.1.300.1 = STRING: 10.129.137.12
avCmMeasIpVoStatSumPkLosTodayFEAddr.1.300.2 = STRING: 10.129.137.29
:
:
avCmMeasIpVoStatSumPkLosTodayFEAddr.2.100.5 = STRING: 10.129.137.105
